Profile Design 1/Fifty Clincher Wheelset

Overview

The 1/Fifty is a wide, deep profile, full carbon aero rim that successfully blends crosswind stability, stiffness and handling while delivering superior heat dissipation and braking performance by utilizing the same ultra high TG resin and brake pads as the TwentyFour series wheels. The semi-automated carbon lay-up, rim construction and raw materials proven through the TwentyFour series wheels are exemplified in the 1/Fifty rims. By utilizing components optimized for more efficient production, we are able to deliver a performance wheelset at an aggressive price.

Brake Performance

Specifically formulated to withstand the same heat our rims can take on, our brake pad compound is exclusive for GMRÂ wheelsets. Using a specially formulated rubber compound, durometer and friction agent, we developed a proprietary brake pad and reduced braking distances over that of other carbon fiber wheelsets.Â

Specifications

• CFD and wind tunnel developed proprietary carbon fiber 50mm low profile clincher rim.
• Full Carbon Clincher Rim.
• High TG resin.
• Proprietary precision machined alloy hubs.
• Sealed cartridge bearings.
• Hand-built assembly.
• 11/10S Shimano compatible.
• Relief along rim bed for center base tape.

Tech Specs

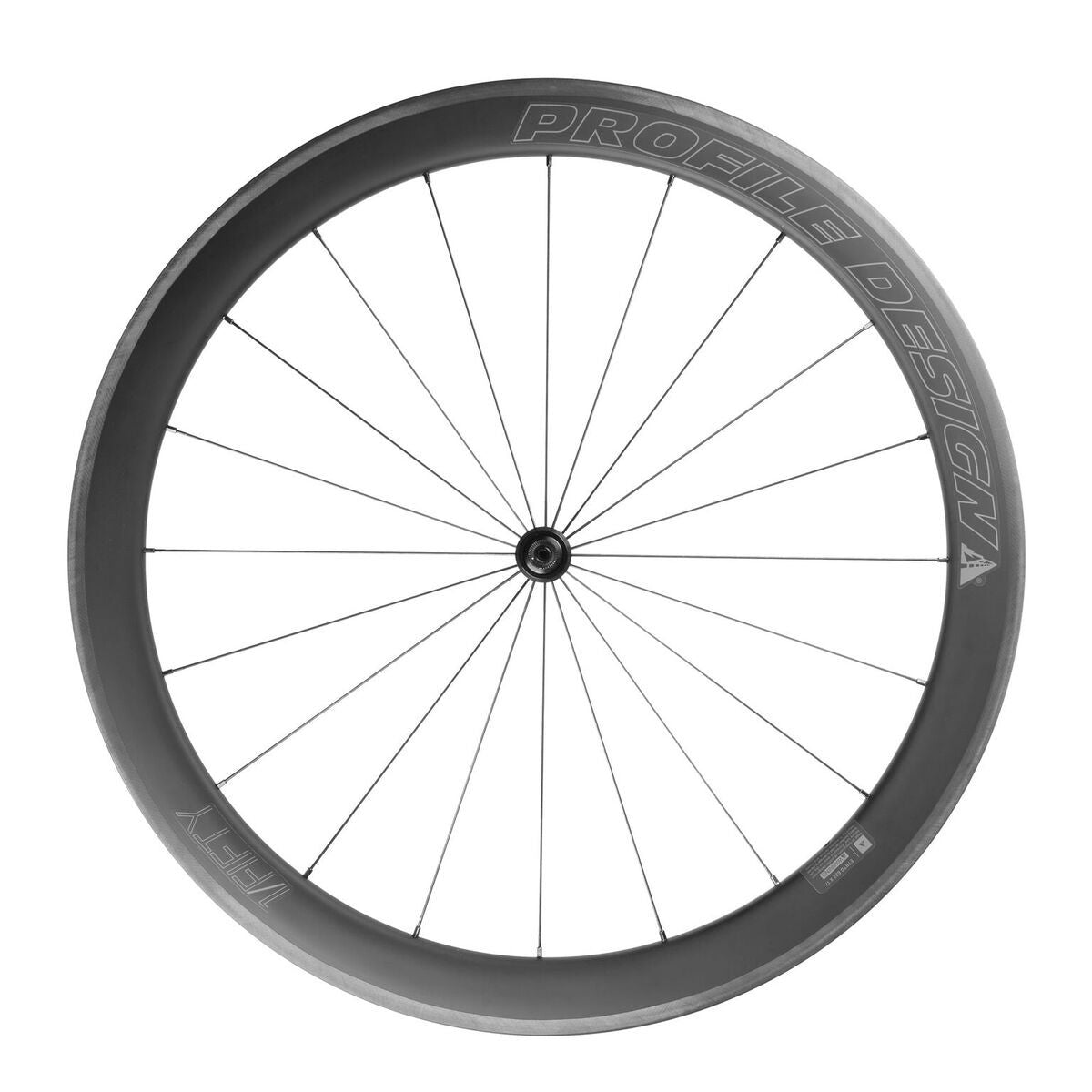

Front Wheel

• Weight:Â 730g
• Size:Â 700c
• Hub:Â 6061-T6 Alloy
• Bearing Size:Â 6900
• Hub Compatibility:Â QR
• Rim Depth:Â 50mm
• Rim Width (Outside):Â 24.5mm
• Rim Width (Inside):Â 17mm
• Color:Â Â UD Carbon
• Spokes: Sapim® Race
• Spoke Shape:Â Straight Pull
• Spoke Count:Â 20
• Spoke Pattern:Â Radial
• Spoke Length:Â 259mm
• Nipples:Â 7075 Alloy Polyax Double Square
• External Nipples:Â Yes
• Max Tire Pressure:Â 125psi /Â 8.27 bar
• Tire Width:Â 25-28c

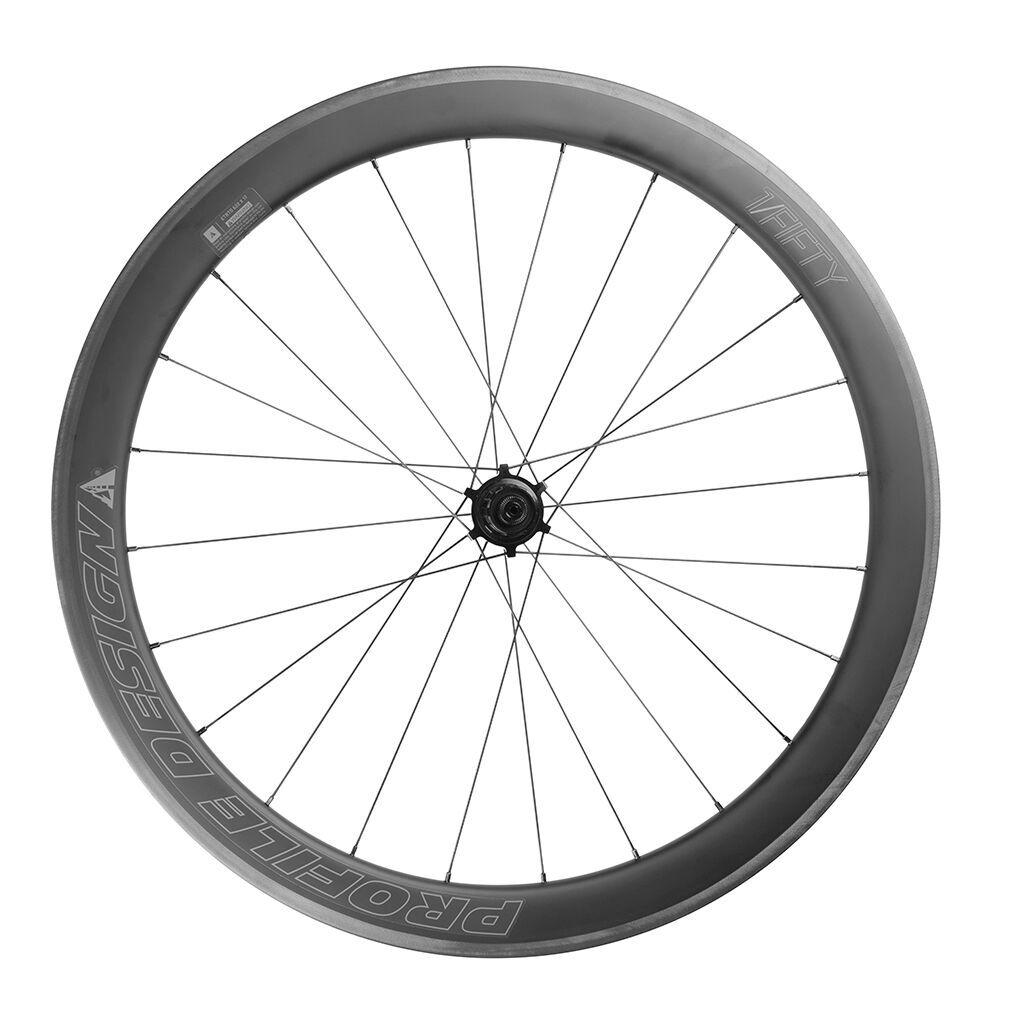

Rear Wheel

• Weight:Â 884g
• Size:Â 700c
• Hub:Â 6061-T6 Alloy
• Bearing Size:Â 6802
• Hub Compatibility:Â Shimano/SRAM: 9/10sp, 11sp w/included spacerÂ
• Rim Depth:Â 50mm
• Rim Width (Outside):Â 24.5mm
• Rim Width (Inside):Â 17mm
• Color:Â Â UD Carbon
• Spokes: Sapim® Race
• Spoke Shape:Â Straight Pull
• Spoke Count:Â 24
• Spoke Pattern Non-Drive:Â Radial
• Spoke Pattern Drive:Â 2 cross
• Spoke Length Non Drive:Â 263mm
• Spoke Length Drive:Â 268mm
• Nipples:Â 7075 Alloy Polyax Double Square
• External Nipples:Â Yes
• 11-Speed Compatible Hub:Â Yes
• Max Tire Pressure:Â 125psi /Â 8.27 bar
• Tire Width:Â 25-28c

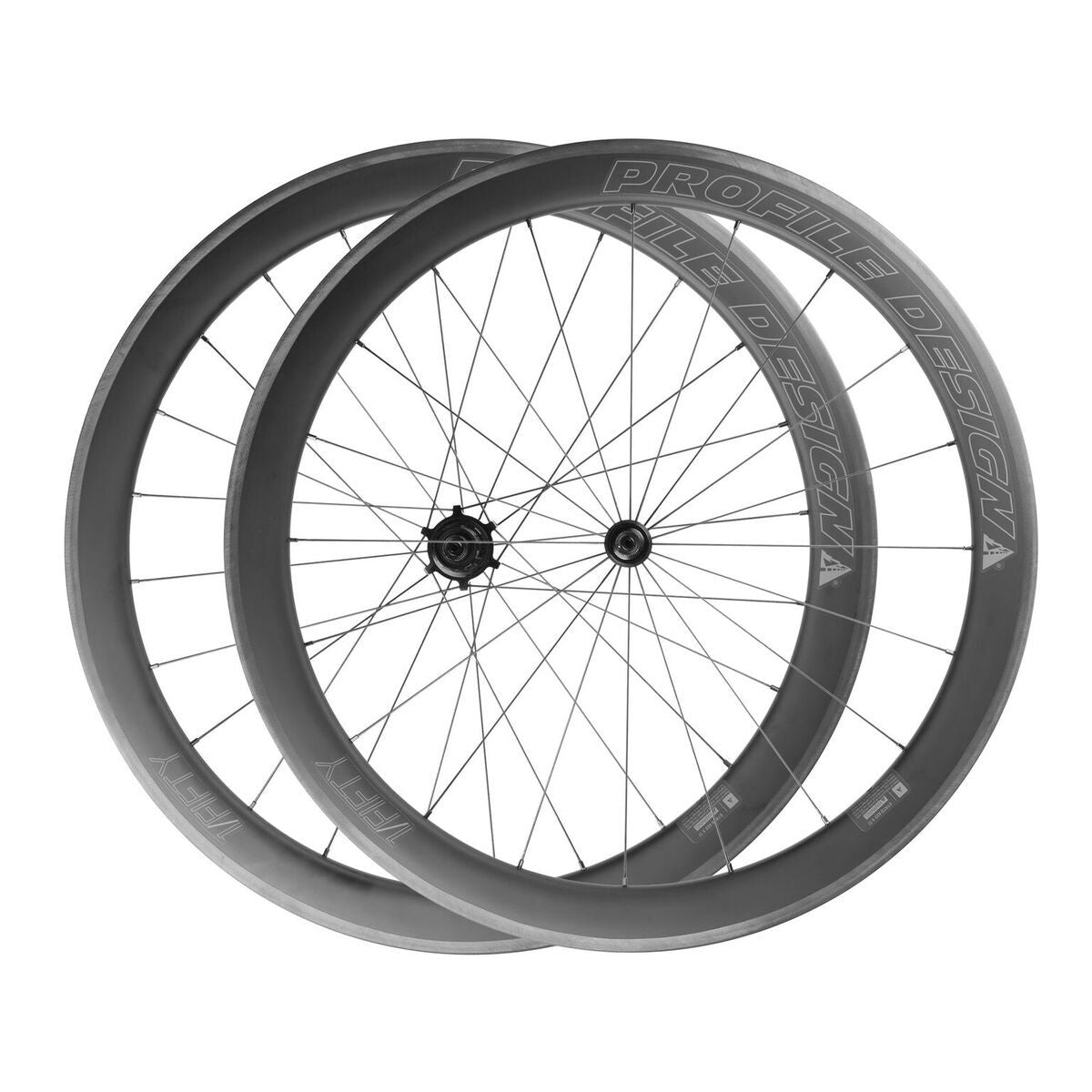

Wheelset

• Set Weight:Â 1614g
• Max Recommended Rider Weight (lbs):Â Â 220lbs

What's Included

• 10spd cassette space.
• Profile Design rim tape.
• Profile Design quick-release skewers.
• Profile Design Carbon-Specific P220 TwentyFour Series brake pads.

Manual

1/Fifty Clincher Wheelset Installation Instructions
