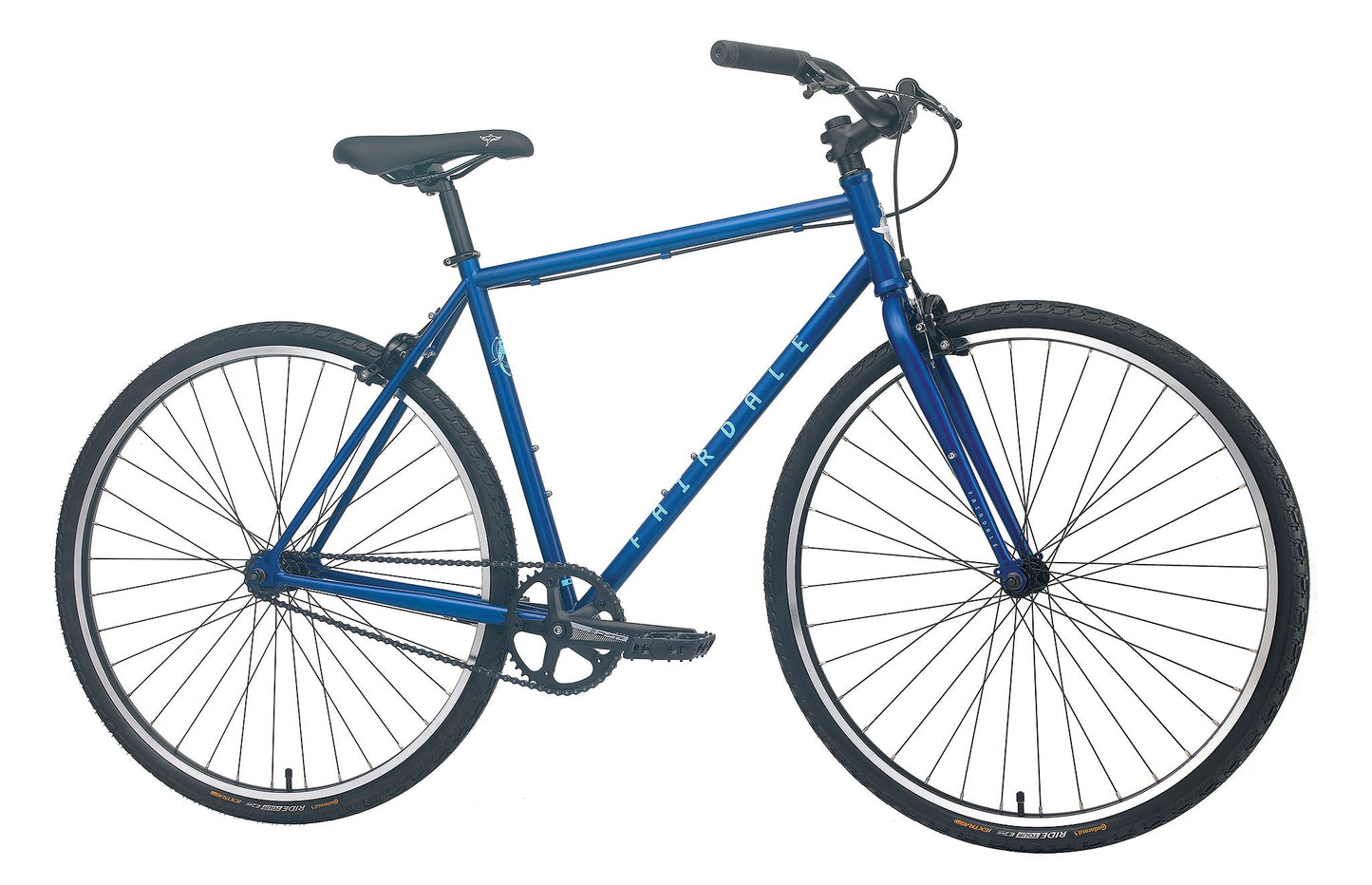

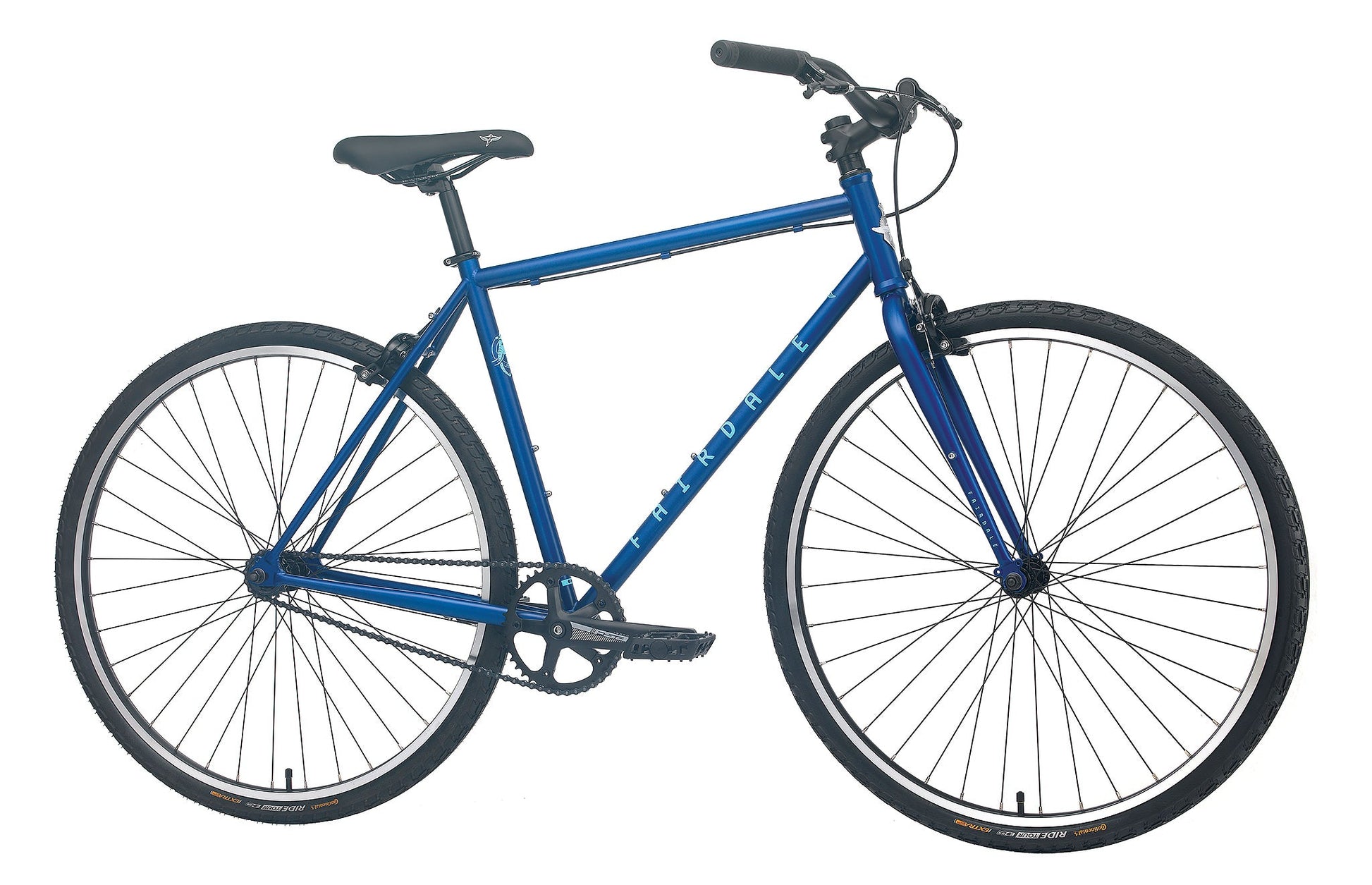

Fairdale Express (Matte Royal Blue in S/M & M/L)
Fairdale Express (Matte Royal Blue in S/M & M/L)
The Express is a bike that is not caught up in the bicycle industry's chaotic technological race. The Express follows our mantra, "Keepin' it simple keeps it fun."
And, it doesn't get much more simple than MTB riser style handlebars on a tough yet comfortable single-speed steel frame. Wide reliable tires and FSA cranks round out the durable build that you'll enjoy riding long after the next cycling fad has come and gone.
Available in Matte Royal Blue in Small/Medium and Medium/Large sizes.
Sizing
Small/Medium: 5'2" - 5'8" height
Medium/Large: 5'6 - 6'0" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications
Frame:Â 1020 Steel, with Rack and Fender mountsÂ
Fork: 1020 Steel, 1 1/8â€Â
Handlebar:Â Fairdale Archer v3, AluminumÂ
Stem:Â 70mm, Forged AluminumÂ
Headset: FSA, Sealed Integrated, 45º/45ºÂ
Brake Lever: Aluminum, Short PullÂ
Brake:Â Aluminum, Dual Pivot, w/ Quick ReleaseÂ
Grips:Â Fairdale SwanÂ
Saddle: Fairdale Logo Saddle
Seat Post:Â Micro adjust, 27.2mm
Seat Clamp:Â Fairdale, 30mm
Cranks:Â FSA Tempo 1x (S/M=170mm, M/L=175mm)Â
Chainwheel:Â 42tÂ
BB Parts:Â FSA
Pedals:Â Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum Â
Front Hub: 36H 3/8†Axle, Aluminum Shell, Looseball Â
Rear Hub: 36H 3/8†Axle, Aluminum Shell, Looseball
Tires: Continental Tour Ride, 700c x 42mm Â
Chain: KMC S1
Driver: 16t Freewheel
Geometry
Size | S/M (52cm) | M/L (56cm) |
Top Tube (Effective) | 537mm |
565mm |
Top Tube (Actual) | 517mm |
546mm |
Seat Tube (BB Center to TT Top) | 475mm |
525mm |
Seat Tube (BB Center to TT Center) |
439mm |
489mm |
Seat Tube Angle | 73° | 73° |
Head Tube Length | 130mm |
155mm |
Head Tube Angle | 71° | 72.5° |
Chain Stay Length | 430mm |
430mm |
Wheelbase | 1018mm |
1031mm |
Standover | 770mm |
809mm |
Stack | 554mm |
584mm |
Reach | 368mm |
387mm |
Fork Length | 404mm |
404mm |
Fork Offset | 50mm |
50mm |
BB Drop | 68mm |
68mm |
Dropout Spacing | 130mm |
130mm |
BB Type | English 68mm |
English 68mm |
Seat Post | 27.2mm | 27.2mm |
Seat Clamp | 30mm | 30mm |
Approx. Max Tire Width | 42mm |
42mm |
Wheel Size | 700c | 700c |
