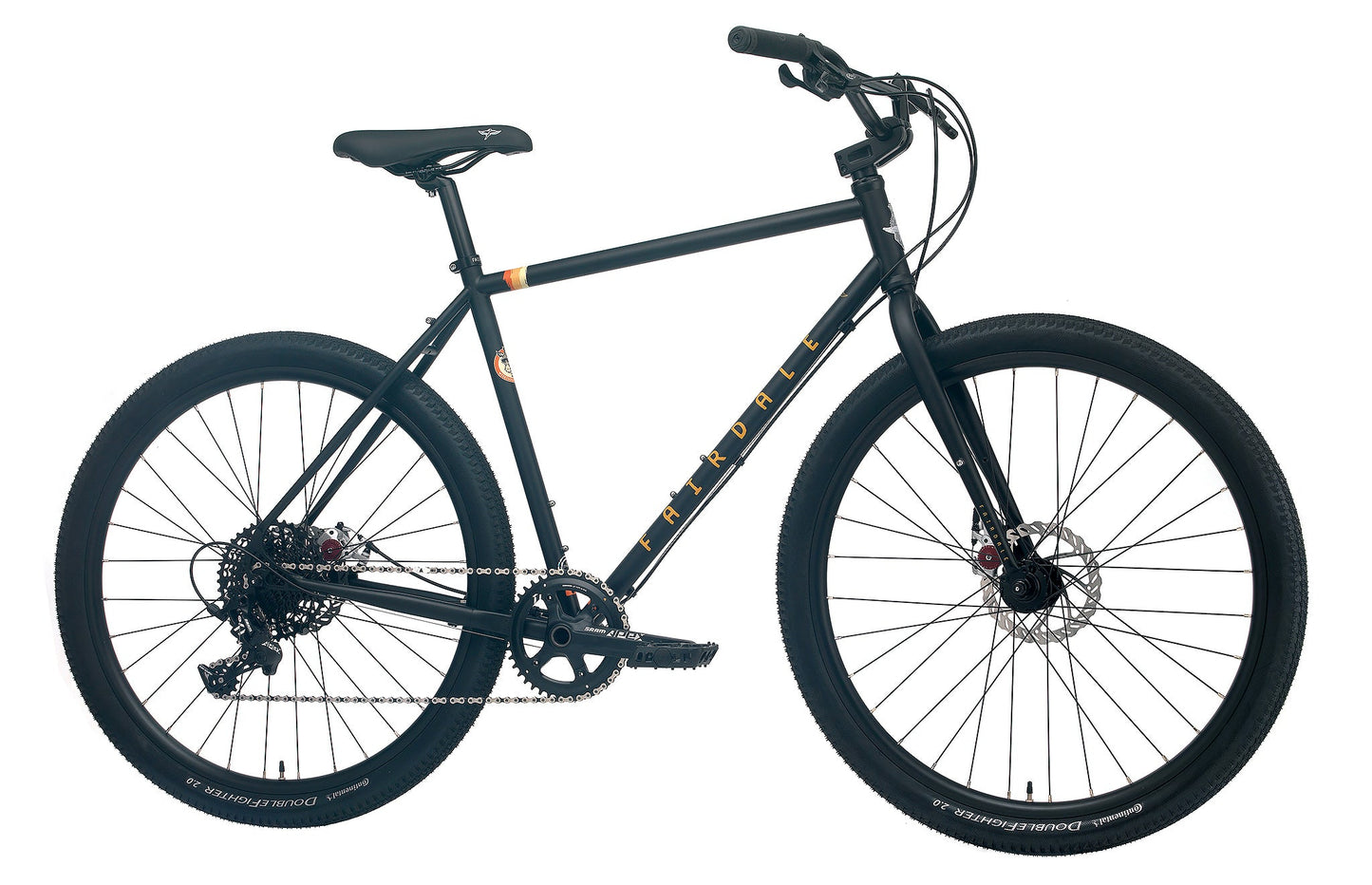

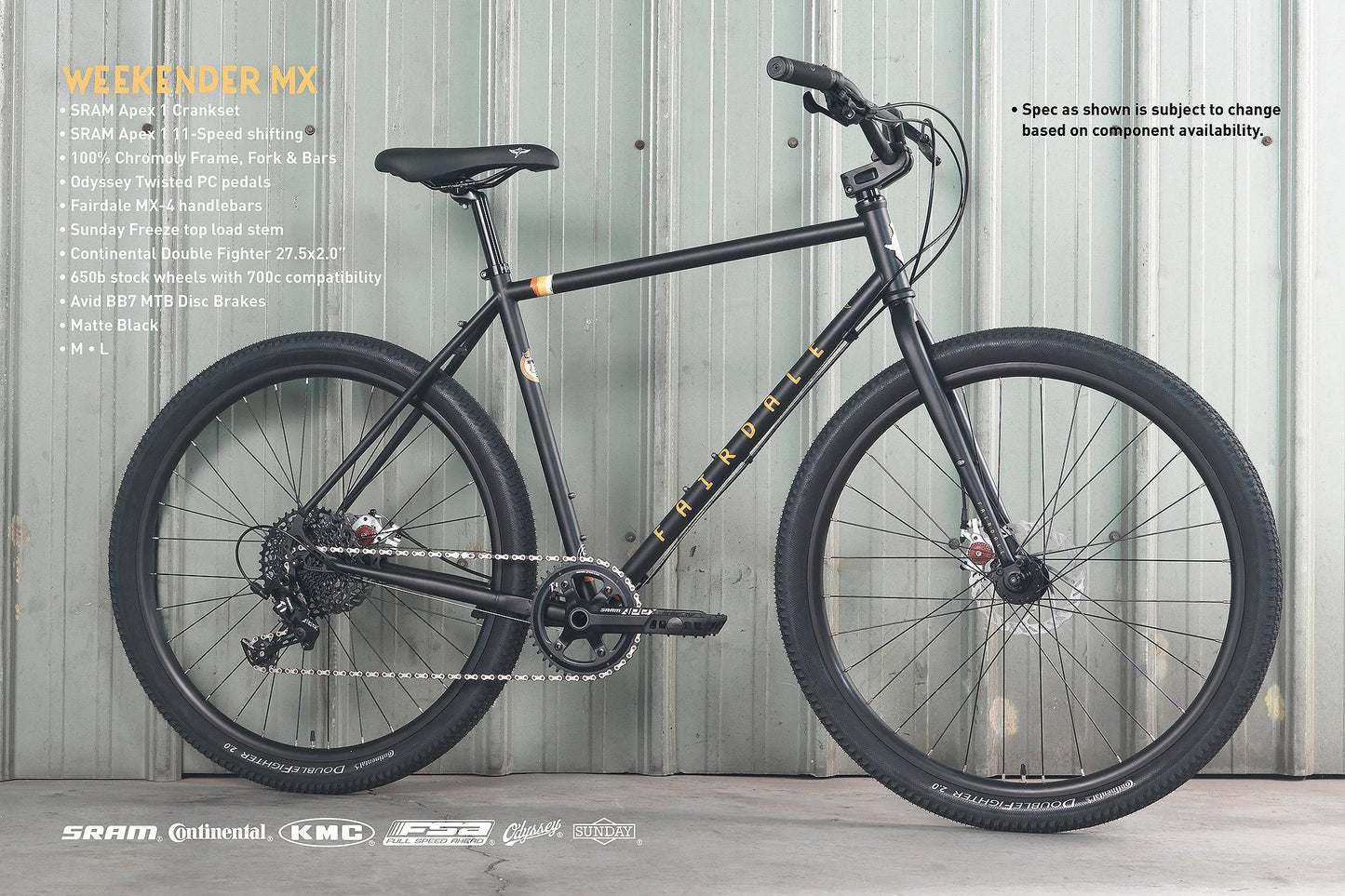

Fairdale Weekender MX (Matte Black in M-L)
Fairdale Weekender MX (Matte Black in M-L)
The Fairdale Weekender Nomad MX's nine-syllable name might not roll off the tongue, but it will roll over pretty much anything else with style. We based this bike loosely on some of our employee's custom builds.
It has the massive range, and smooth shifting of the Weekender Nomad's SRAM Apex drivetrain mated to our MX handlebar's more upright riding position. The rugged Chromoly steel Weekender frame adapts to this fun-to-ride configuration happily and makes short or long rides a blast. This model is an in-house favorite, and we think it could be yours too.
The Nomad MX features the Weekender’s geometry that is built around 27.5 x 2.0†Continental tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.*
Matte Black available in Medium and Large.
*Please note that the X-Small and Small Weekenders use 27.5 x 1.65" Maxxis tires and these frame sizes are not compatible with 700c wheels.
Sizing
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Â
Specs
Frame: 100% Chromoly Steel, with Rack and Fender mounts (M and L frame are compatible with 700c wheels)
Fork:Â 100% Chromoly. One-piece Machined Steerer TubeÂ
Handlebar: Fairdale MX-4 Bar, 100% Chromoly
Stem:Â Sunday Freeze Front Load
Headset:Â FSA, Sealed Integrated
Brake Lever: Avid FR 5 (F&R)
Brake:Â Avid BB7 MTB
Grips:Â Fairdale Swan
Saddle: Fairdale RaceÂ
Seat Post: Micro Adjust, 27.2mmÂ
Seat Clamp: Fairdale, 30mmÂ
Cranks: SRAM Apex 1 (M & L=172.5mm)Â
Chainwheel: 42t, Narrow-Wide
BB Parts: Neco BB-501
Pedals: Odyssey Twisted PCÂ
Rims: 27.5"/650b, 32-Hole, Aluminum, Double Wall, Pinned Rim, Tubeless compatible
Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Tires: Continental Dbl Fighter III, 27.5"/650b x 2.0 (27.5â€/650b x 1.65†Maxxis Overdrive on XS/S)
Chain: KMC X11Â
Driver:Â SRAM PG-1130, 11-42T, 11-Speed
R. Shift Lever: SRAM Apex 1, 11-Speed, Flat Bar
R. Derailleur:Â SRAM Apex 1, Long Cage, 11-Speed
Shift Cable: Fairdale with Jagwire inline adjuster
Geometry
Size | S (52cm) | M (55cm) | L (58cm) | XL (58cm) |
Top Tube (Effective) | 523mm | 545mm | 579mm | 602cm |
Top Tube (Actual) | 505mm | 532mm | 559mm | 585mm |
Seat Tube (BB Center to TT Top) | 454mm | 485mm | 533mm | 576mm |
Seat Tube (BB Center to TT Center) |
414mm | 445mm | 493mm | 536mm |
Seat Tube Angle | 74° | 73° | 73° | 73° |
Head Tube Length | 120mm | 122mm | 146mm | 167mm |
Head Tube Angle | 70° | 71° | 71.5° | 71.5° |
Chain Stay Length | 415mm | 440mm | 440mm | 440mm |
Wheelbase | 1005mm | 1037mm | 1058mm | 1081mm |
Standover | 745mm | 765mm | 800mm | 830mm |
Stack | 517mm | 565mm | 589mm | 609mm |
Reach | 373mm | 380mm | 398mm | 414mm |
Fork Length | 390mm | 416mm | 416mm | 416mm |
Fork Offset | 50mm | 50mm | 50mm | 50mm |
BB Drop | 54mm | 72mm | 72mm | 72mm |
Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
BB Type | English 68 | English 68 | English 68 | English 68 |
Seat Post | 27.2mm | 27.2mm | 27.2mm | 272.mm |
Seat Clamp | 30mm | 30mm | 30mm | 30mm |
Approx. Max Tire Width 27.5"/650b | 47mm |
54mm |
54mm |
54mm |
Approx. Max Tire Width 29"/700c | N/A | 53mm | 53mm | 53mm |
Wheel Size | 27.5" |
27.5" | 27.5" | 27.5" |
