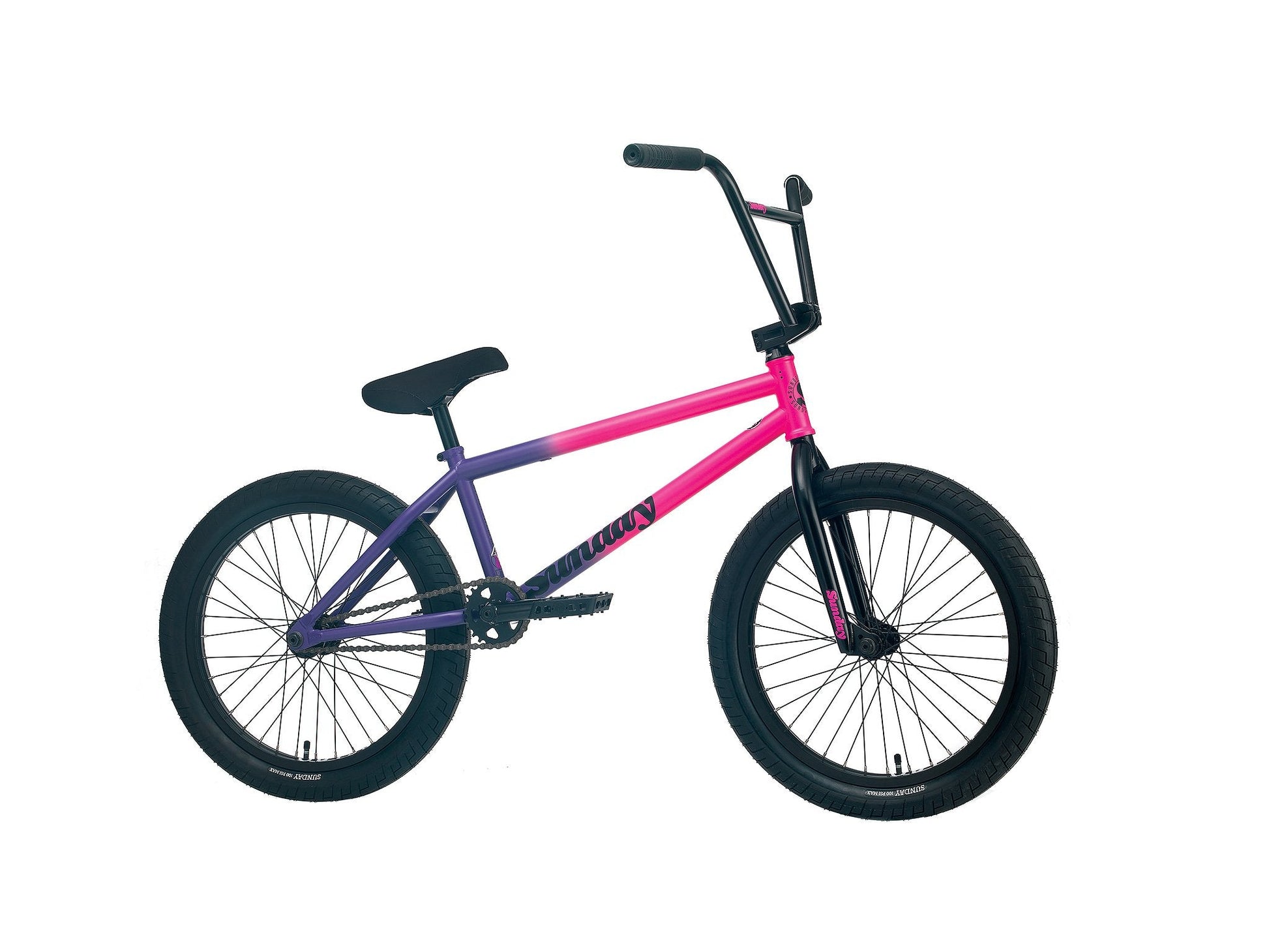

Sunday Street Sweeper - Jake Seeley Signature (Matte Hot Pink to Matte Grape Fade with 20.75" tt in LHD or RHD)

The Street Sweeper is designed with serious street riders in mind.

Built around Jake Seeley’s all-new chromoly aftermarket signature frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed Odyssey Clutch freecoaster and Sunday Street Sweeper tires, this is truly a pro-level bike. Follow @thejakeseeley.

Key Features

• Aftermarket Sunday Street Sweeper frame
• 100% Chromoly Forks and 4-piece Bars
• Sunday Seeley Signature Grips
• Sunday Camo Sweep Seat, Pivotal
• Odyssey Clutch v2 Freecoaster
• Odyssey Quadrant Rims
• FSA Conical Headset
• Right Hand or Left Hand Drive
• Sunday Street Sweeper 2.4" Tires

Specifications

Frame:Â Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork:Â Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offsetÂ
Handlebar:Â Sunday, 100% chromoly, 4-pieceÂ
Stem:Â Sunday Freeze Top load, 48mmÂ
Headset:Â Â FSA integrated conical, 1-1/8"Â
Alloy Cap:Â Â Sunday M16, aluminumÂ
Brake Lever:Â Â Odyssey SpringfieldÂ
Brakes:Â Odyssey Springfield U-brakeÂ
Brake Cable:Â Â Odyssey Quik SlicÂ
Grips:Â Sunday Jake SeeleyÂ
Seat:Â Sunday Creepy Sweeper, Pivotal
Seat Alternate: Sunday Duck Canvas Black, Pivotal
Seat post:  Sunday PivotalÂ
Seat Clamp:Â IntegratedÂ
Sprocket:Â Sunday Sabretooth v2, 25T, 6061 aluminumÂ
Cranks:Â 160mm, 3-piece, chromolyÂ
BB Parts:Â Sealed, Mid, 19mmÂ
Pedals:Â Odyssey Twisted PC ProÂ
Rims:Â Odyssey Quadrant, 20", 36HÂ
Front Hub:Â Sunday, 36H, low-flange, sealed , 3/8" female axleÂ
Rear Hub:Â Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive PC guardÂ
Spokes:Â 14g steel, blackÂ
Tires:Â Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain:Â KMC Z1 wide
Approx. Weight: 24.97lbs (brakeless)

Frame GeometryÂ

Top Tube Length:Â 20.75"Â
Head Tube Angle: 75.25°Â
Seat Tube Angle: 71°Â
Chainstay Length: 12.7"-13â€Â
Bottom Bracket Height:Â 11.7"Â
Headtube Length:Â 4.7"
Standover: 8.85â€Â

Handlebar GeometryÂ

Rise:Â 9"Â
Width:Â 29"Â
Backsweep: 12°Â
Upsweep: 3°
