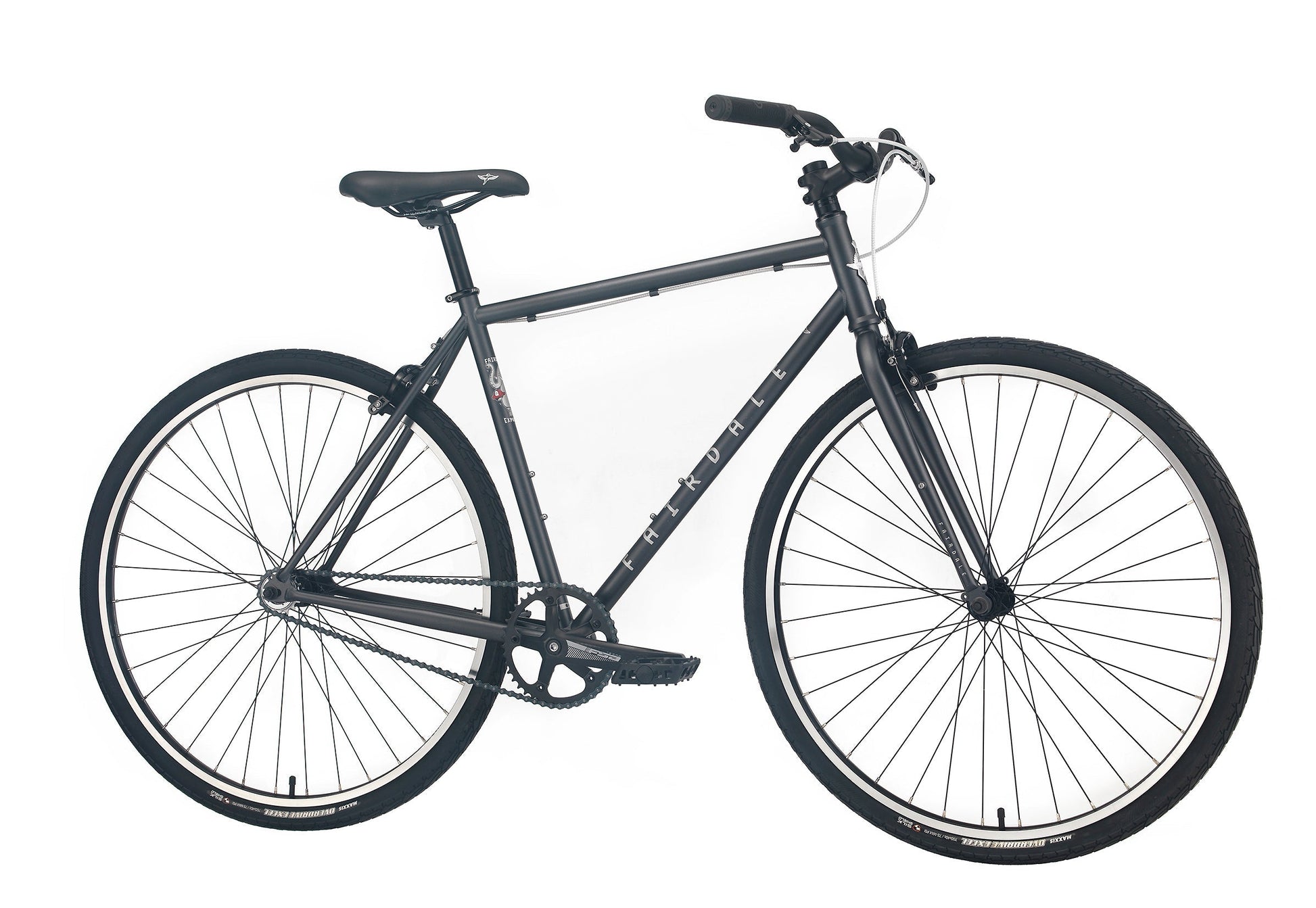

Fairdale Express (Matte Charcoal in S/M & M/L)
Fairdale Express (Matte Charcoal in S/M & M/L)
The Express is a fast machine for urban riding, commuting and fun. A key feature on this bike is its riding position. Low-rise mountain bike style handlebars put you into a commanding and stable riding position for zipping through busy areas.
Features like wide Maxxis tires, a simple single-speed drivetrain and a tough steel frame mean this bike will be a joy to ride for years. Feel free to configure your Express with a wide array of aftermarket racks and fenders, thanks to the standard rack mounting points on the frame and fork.
Don’t overthink or over-complicate the bicycle, just hop on an Express and ride.
Available in Matte Charcoal in Small/Medium and Medium/Large sizes.
Sizing
Small/Medium: 5'2" - 5'8" height
Medium/Large: 5'6 - 6'0" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications
Frame:Â 1020 Steel, with Rack and Fender mountsÂ
Fork: 1020 Steel, 1 1/8â€Â
Handlebar:Â Fairdale Archer v3, AluminumÂ
Stem:Â 70mm, Forged AluminumÂ
Headset: FSA, Sealed Integrated, 45º/45ºÂ
Brake Lever: Aluminum, Short PullÂ
Brake:Â Aluminum, Dual Pivot, w/ Quick ReleaseÂ
Grips:Â Fairdale SwanÂ
Saddle: Fairdale Logo Saddle
Seat Post:Â Micro adjust, 27.2mm
Seat Clamp:Â Fairdale, 30mm
Cranks:Â FSA Tempo 1x (S/M=170mm, M/L=175mm)Â
Chainwheel:Â 42tÂ
BB Parts:Â FSA
Pedals:Â Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum Â
Front Hub: 36H 3/8†Axle, Looseball Â
Rear Hub: 36H 3/8†Axle, Looseball w/ Flip-Flop Fixed/Free
Tires: Maxxis Overdrive Excel 700 x 40mm Â
Chain: KMC S1
Driver: 16t Freewheel
Geometry
Size | S/M (52cm) | M/L (56cm) |
Top Tube (Effective) | 537mm |
565mm |
Top Tube (Actual) | 517mm |
546mm |
Seat Tube (BB Center to TT Top) | 475mm |
525mm |
Seat Tube (BB Center to TT Center) |
439mm |
489mm |
Seat Tube Angle | 73° | 73° |
Head Tube Length | 130mm |
155mm |
Head Tube Angle | 71° | 72.5° |
Chain Stay Length | 430mm |
430mm |
Wheelbase | 1018mm |
1031mm |
Standover | 770mm |
809mm |
Stack | 554mm |
584mm |
Reach | 368mm |
387mm |
Fork Length | 404mm |
404mm |
Fork Offset | 50mm |
50mm |
BB Drop | 68mm |
68mm |
Dropout Spacing | 130mm |
130mm |
BB Type | English 68mm |
English 68mm |
Seat Post | 27.2mm | 27.2mm |
Seat Clamp | 30mm | 30mm |
Approx. Max Tire Width | 42mm |
42mm |
Wheel Size | 700c | 700c |
