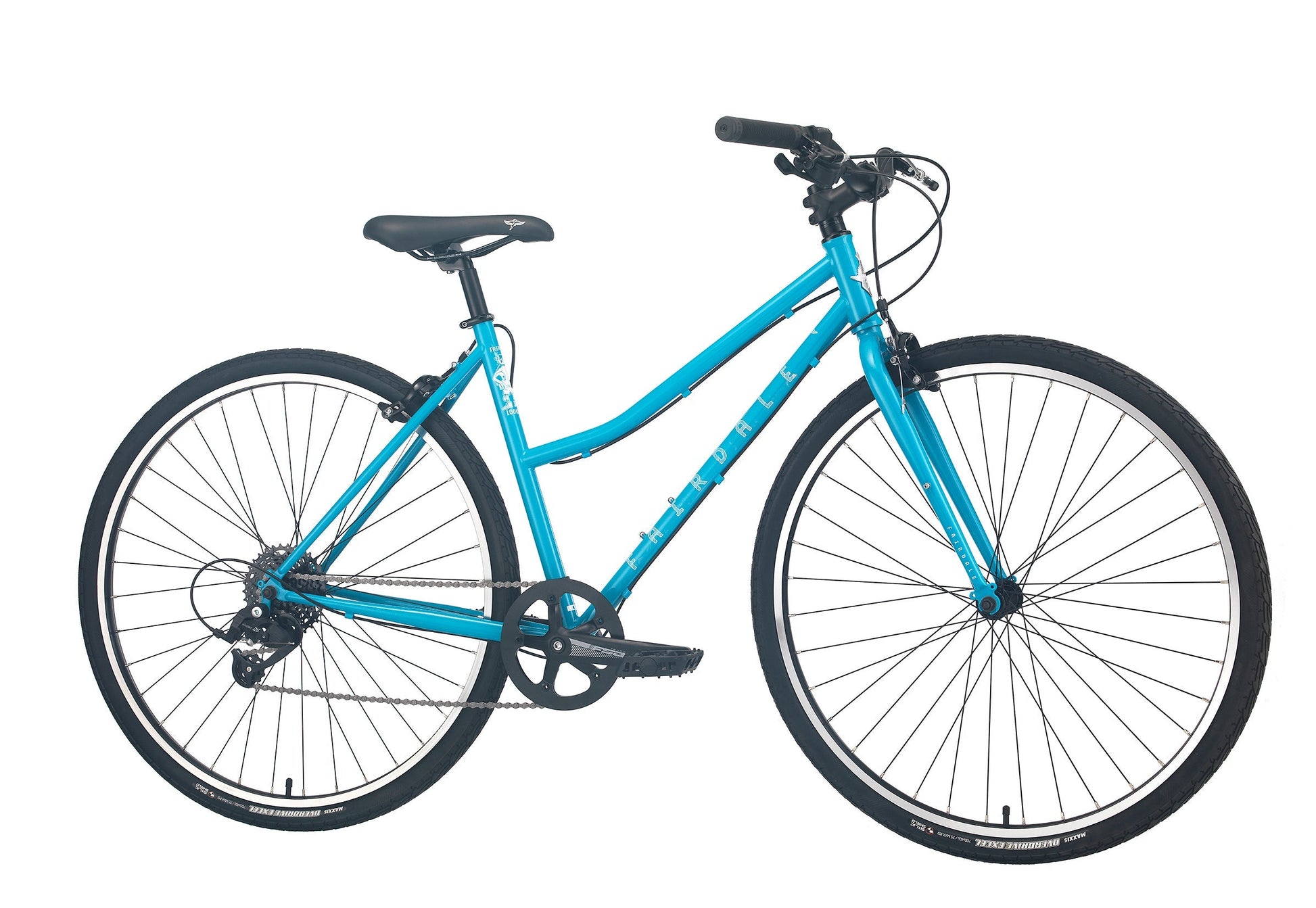

Fairdale Lookfar Step-Thru (Gloss Surf Blue in S/M)

Fairdale Lookfar Step-Thru (Gloss Surf Blue in S/M)

Regular price $629.00
Regular price $669.00 Sale price $629.00
Sale Sold out
Shipping calculated at checkout.
Size

We're happy to announce that a step-thru model has been added back to our line up this year. We've had numerous requests for a step-thru bike and this all-new version is bound to be a crowd pleaser. A companion to our popular Lookfar, the Step-Thru provides more clearance for getting on and off the bike, especially when loaded with extra cargo, and it provides a very comfortable ride for cruising and commuting.

One simple trigger shifter changes the gears up-or-down through all 8-speeds, and the bike’s 40mm wide Maxxis tires feel fast on smooth ground while still confidently handling rougher terrain.

The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.

The Lookfar shares the same proven geometry as our ever-popular Weekender model.

Gloss Surf Blue is available in Small/Medium.

Sizing

Small/Medium: 5'2" - 5'8" height

Sizing is approximate. Please consult with your local bike shop to assist with fit.

Specifications

Frame:Â Step-Thru 1020 Steel, with Rack and Fender mounts
Fork: 1020 Steel, 1 1/8â€Â
Handlebar:Â Fairdale Archer v3, AluminumÂ
Stem:Â 70mm, Forged AluminumÂ
Headset: FSA, Sealed Integrated, 45º/45ºÂ
Brake Lever: Aluminum, Short PullÂ
Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Grips: Fairdale SwanÂ
Saddle: FairdaleÂ
Seat Post: Micro adjust, 27.2mmÂ
Seat Clamp: Fairdale, 30mmÂ
Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)Â
Chainwheel: 42t
BB Parts: FSA
Pedals: Odyssey Twisted PCÂ
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H, 3/8â€ Axle, Aluminum Shell, Looseball
Rear Hub: 36H, 3/8â€ Axle, 8-Speed Cassette, Looseball
Tires: Maxxis Overdrive Excel 700c x 40mm
Chain: KMC Z8.1, 8-Speed
Cassette: MicroShift, 11-34T, 8-Speed
R. Shift Lever: MicroShift TS39-8R Trigger, 8-Speed
R. Derailleur: MicroShift RD-M26CS, 8-Speed
Shift Cable: Fairdale

Geometry

Size XS (49cm) S (52cm) M (55cm) L (58cm)
Top Tube (Effective) 508mm 525mm 552mm 578mm
Top Tube (Actual) 495mm 507mm 531mm 559mm
Seat Tube (BB Center to TT Top) 385mm 436mm 490mm 538mm
Seat Tube
(BB Center to TT Center)
317mm 370mm 448mm 496mm
Seat Tube Angle 74.5
°
74° 73° 73°
Head Tube Length 100mm 120mm 140mm 160mm
Head Tube Angle 69.6
°
70° 71° 72.5°
Chain Stay Length 440mm 440mm 440mm 440mm
Wheelbase 1021mm 1030mm 1038mm 1050mm
Standover 698mm 733mm 780mm 815mm
Stack 521mm 541mm 564mm 589mm
Reach 363mm 370mm 379mm 398mm
Fork Length 401mm 401mm 401mm 401mm
Fork Offset 50mm 50mm 50mm 50mm
BB Drop 68mm 68mm 68mm 68mm
Dropout Spacing 135mm
135mm
135mm
135mm
BB Type English 68 English 68 English 68 English 68
Seat Post 27.2mm 27.2mm 27.2mm 27.2mm
Seat Clamp 30mm 30mm 30mm 30mm
Approx. Max Tire Width 42mm 42mm 42mm 42mm
Wheel Size 700c 700c 700c 700c
