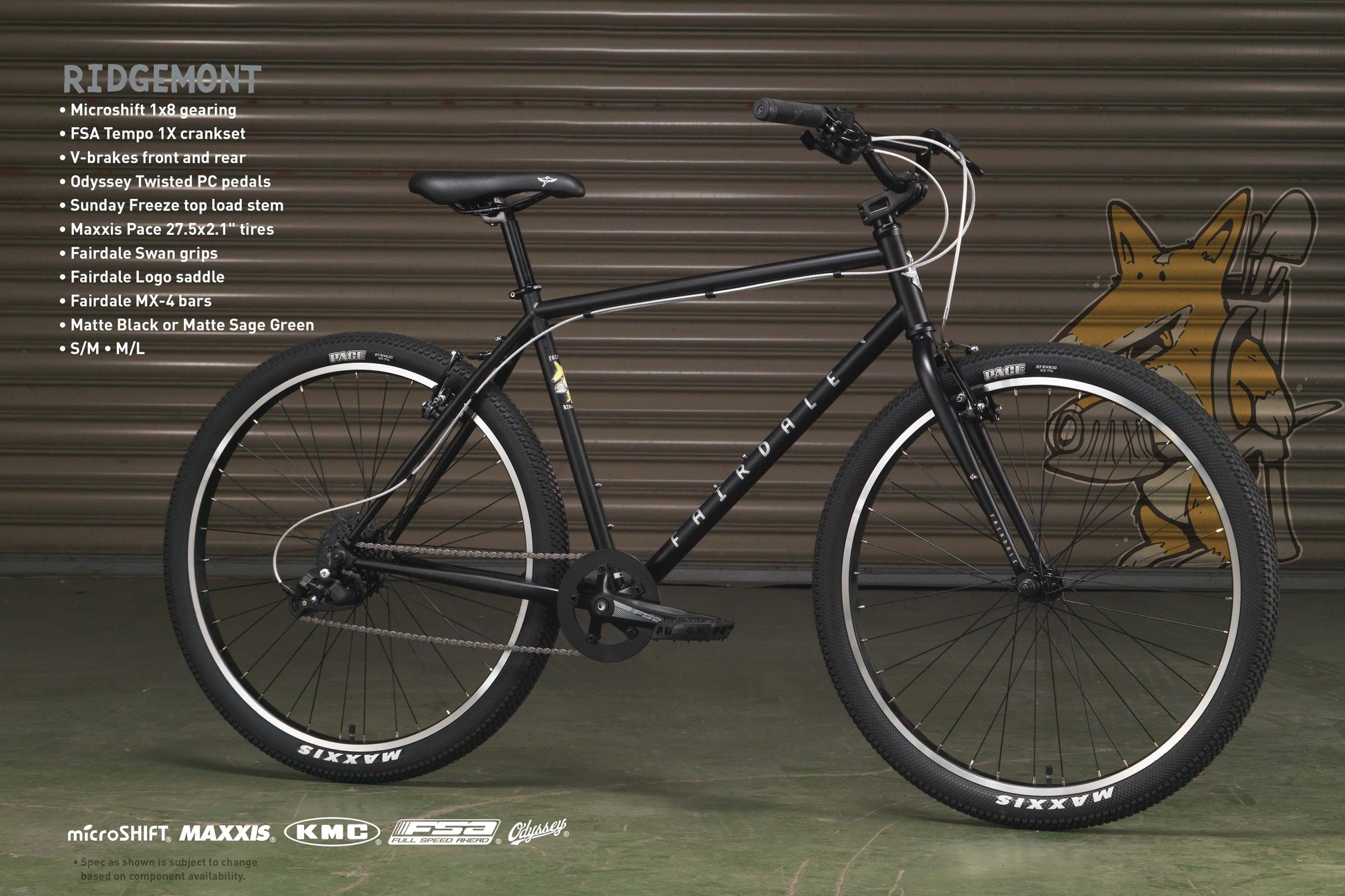

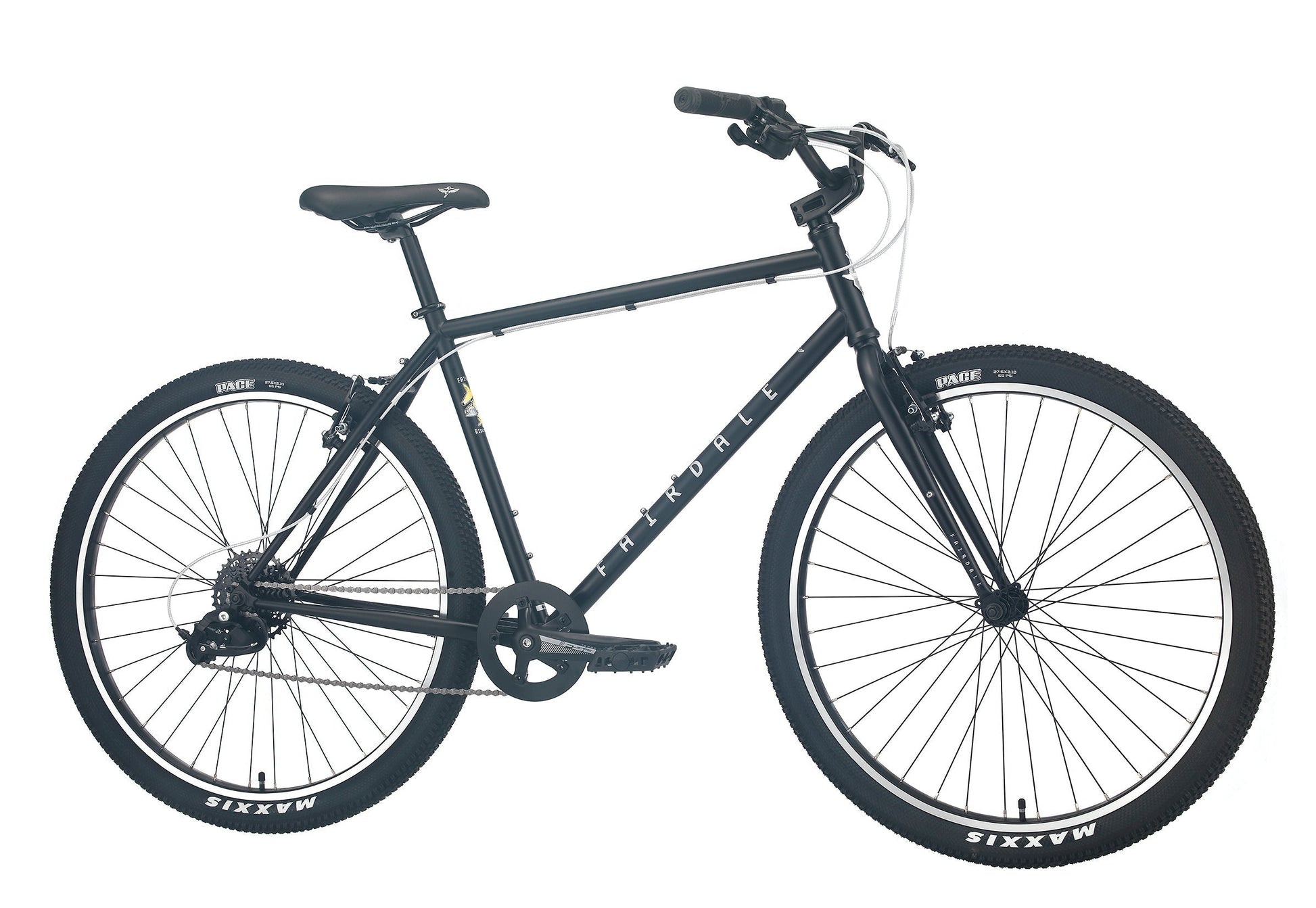

Fairdale Ridgemont (Matte Black in S/M & M/L)
Fairdale Ridgemont (Matte Black in S/M & M/L)
The Ridgemont is a simple bike. That’s a good thing. You won’t find finicky technology that needs constant adjustment, or a saddle position based on aerodynamic studies. Instead, you will find a bike designed to “just go for a rideâ€.
The Ridgemont will remind you that balancing on two wheels can feel magical.
The Ridgemont is user-friendly and ultra-durable with its BMX style stem and bars, and it's ready to cruise around town with its 8-speed drivetrain. All-new for this year are the Ridgemont's 27.5â€wheels and tires that are made to soak up the bumps and turn up the fun meter.
Matte Black is available in Small/Medium and Medium/Large.
Sage Green is available in Small/Medium and Medium/Large.
Sizing
Small/Medium: 5'2" - 5'8" height
Medium/Large: 5'6 - 6'0" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications
Frame: 1020 Steel with 1-1/8†Integrated Head TubeÂ
Fork: 1020 Steel 1-1/8†Steerer tube
Handlebar: Fairdale MX-4 Bar, 100% Chromoly
Stem:Â Sunday Freeze, Top-Load, 48mm Reach
Headset: FSA, Sealed Integrated, 45º/45ºÂ
Brake Lever: AluminumÂ
Brake: Aluminum V-BrakesÂ
Grips: Fairdale SwanÂ
Saddle: Fairdale LogoÂ
Seat Post: 27.2mm Micro AdjustÂ
Seat Clamp: 30mm Fairdale ClampÂ
Cranks: FSA Tempo 1X (S/M = 170mm, M/L = 175mm)
Chainwheel: Fairdale, 36TÂ
BB Parts: FSA
Pedals: Odyssey Twisted PCÂ
Rims:Â 36-Hole, Aluminum, Double Wall, Pinned Joint, Schrader Valve
Front Hub: 36H, 3/8†Axle , Aluminum Shell, Looseball
Rear Hub: 36H, 3/8†Axle, 8-Speed Cassette, Looseball
Tires: Maxxis Pace 27.5" x 2.1"
Chain: KMC Z8.1
Driver: MicroShift, 11-34T, 8-Speed
R. Shift Lever: MicroShift TS39-8R Trigger, 8-Speed
R. Derailleur: MicroShift RD-M26CS, 8-Speed
Shift Cable: Fairdale
Geometry
Size | S/M (57cm) | M/L (60cm) |
Top Tube (Effective) | 575mm |
606mm |
Top Tube (Actual) | 544mm |
581mm |
Seat Tube (BB Center to TT Top) | 415mm |
500mm |
Seat Tube (BB Center to TT Center) |
379mm |
464mm |
Seat Tube Angle | 70° | 70° |
Head Tube Length | 115mm |
160mm |
Head Tube Angle | 69° | 69° |
Chain Stay Length | 442mm |
442mm |
Wheelbase | 1057mm |
1089mm |
Standover | 734mm |
794mm |
Stack | 516mm |
558mm |
Reach | 387mm |
403mm |
Fork Length | 399mm |
399mm |
Fork Offset | 50mm |
50mm |
BB Drop | 54mm |
54mm |
Dropout Spacing | 135mm |
135mm |
BB Type | Threaded English |
Threaded English |
Seat Post | 27.2mm | 27.2mm |
Seat Clamp | 30mm | 30mm |
Approx. Max Tire Width | 56mm |
56mm |
Wheel Size | 27.5" | 27.5" |
