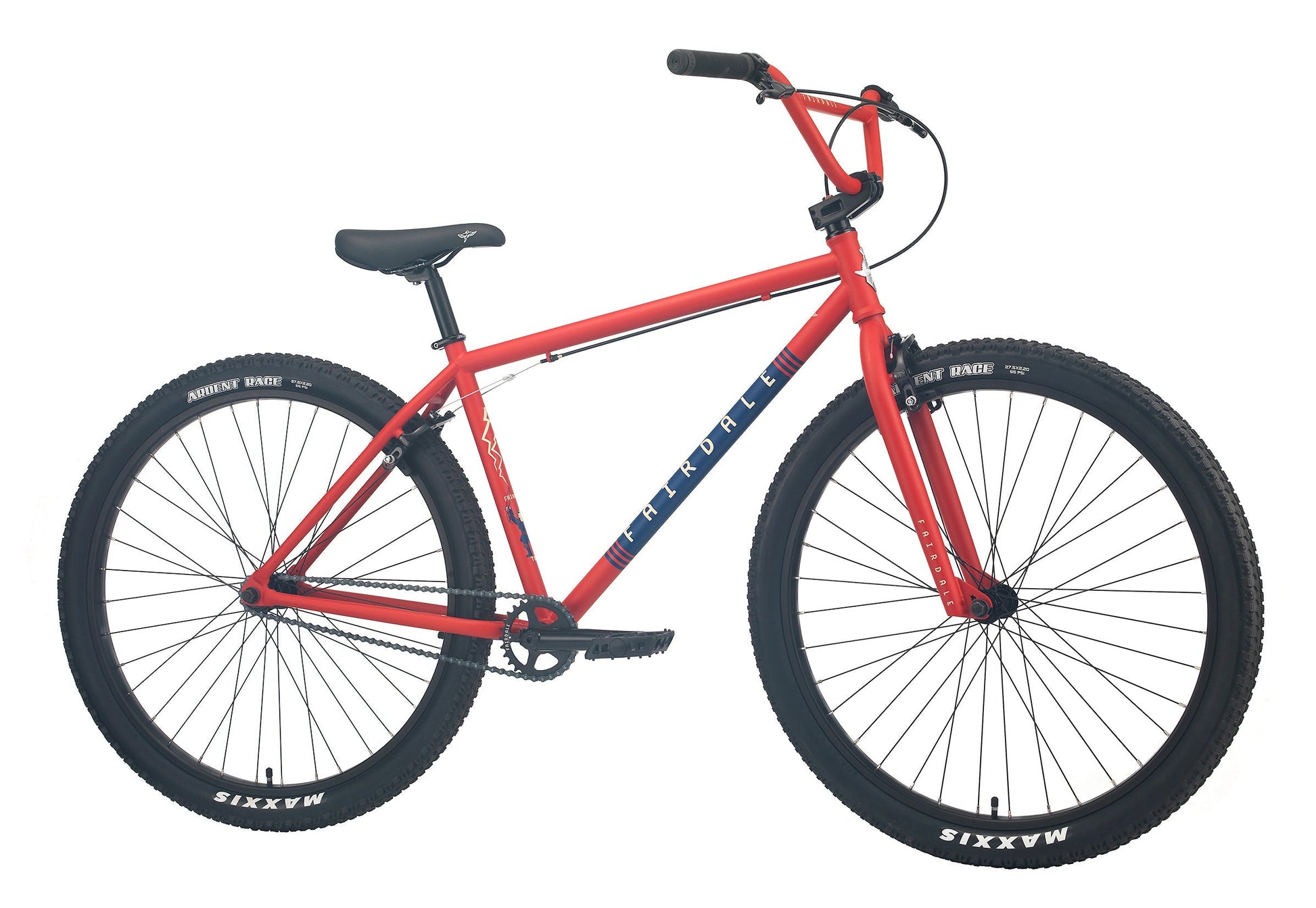

Fairdale Taj 27.5" (Matte Fire Engine Red)
Fairdale Taj 27.5" (Matte Fire Engine Red)
“I’m excited to introduce you to my signature bike. The Taj bike has always been about blending the tough and simple sensibilities of a BMX bike with a frame size that you can also comfortably sit down and pedal. This year’s model makes the jump to 27.5†wheels which are still agile enough for playing around, and even better for cruisin’. The frame, fork, handlebars, and cranks are all reliable chromoly. The single-speed drivetrain and Odyssey brakes are as dependable and straightforward as they can possibly be. The Taj is a bike that is fun to ride, made to last and a breeze to keep rolling. I hope you’ll give it a try.â€
-Taj Mihelich
Available in Matte Fire Engine Red with 27.5"Â wheels.
Sizing
27.5": 5'4" height and up
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% Track Certified ChromolyÂ
Fork: 100% Chromoly. One-piece machined Steerer TubeÂ
Handlebar:Â Fairdale MX-6 Bar, 100% Chromoly Steel
Stem:Â Sunday Freeze, Top-Load, 48mm Reach
Headset: FSA Sealed Integrated, 45º/45ºÂ
Brake Lever:Â Odyssey Monolever, Left and RightÂ
Brake:Â Odyssey Springfield, Front and Rear
Grips: Fairdale SwanÂ
Saddle:Â Fairdale Taj, RailedÂ
Seat Post: 27.2mmÂ
Seat Clamp: Fairdale, 30mmÂ
Cranks: Chromoly 3-Piece, Chromoly, 175mmÂ
Chainwheel: Fairdale, 28tÂ
BB Parts: Mid, 19mm, Press-fit, SealedÂ
Pedals: Odyssey Twisted PCÂ
Rims: Double wall, 36-Hole, AluminumÂ
Front Hub: 36-Hole, 3/8†Axle, Aluminum Shell, Sealed BearingÂ
Rear Hub: 36-Hole, 3/8†Axle, Aluminum Shell, Sealed Bearing Cassette
Tires: Maxxis Ardent Race, 27.5 x 2.2â€
Chain: KMC S1
Driver: 14t Freewheel
Geometry
Size | 27.5" (60cm) |
Top Tube (Effective) | 616mm |
Top Tube (Actual) | 586mm |
Seat Tube (BB Center to TT Top) | 445mm |
Seat Tube (BB Center to TT Center) |
405mm |
Seat Tube Angle | 71° |
Head Tube Length | 117.5mm |
Head Tube Angle | 71° |
Chain Stay Length | 437mm |
Wheelbase | 1067mm |
Standover | 766mm |
Stack | 547mm |
Reach | 428mm |
Fork Length | 414mm |
Fork Offset | 34mm |
BB Drop | 55mm |
Dropout Spacing | 110mm |
BB Type | Mid Press Fit |
Seat Post | 27.2mm |
Seat Clamp | 30mm |
Approx. Max Tire Width | 63mm |
Wheel Size | 27.5" |
