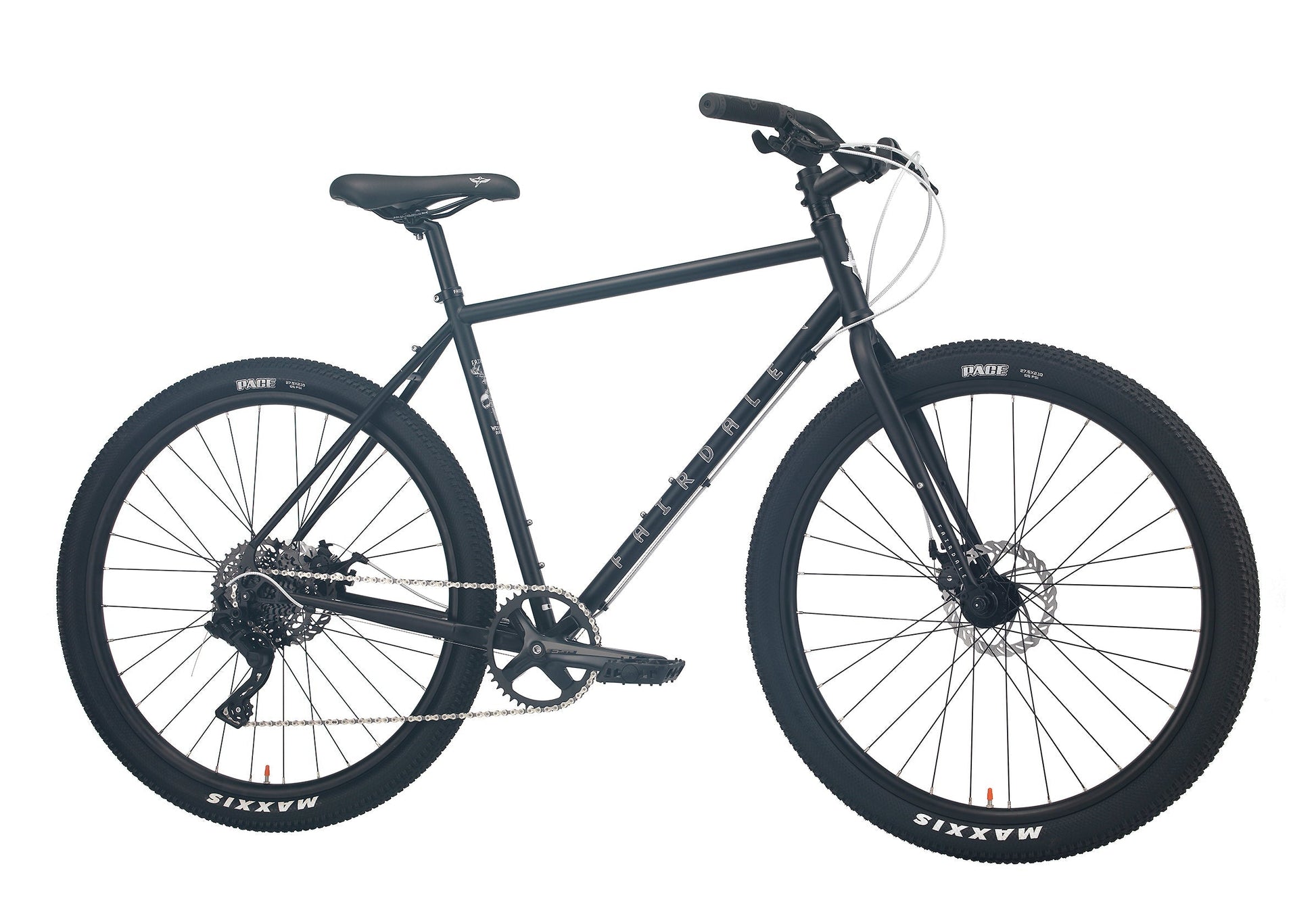

Fairdale Weekender Archer (Matte Black in M-XL)
Fairdale Weekender Archer (Matte Black in M-XL)
One of the first Fairdales that we ever made was the Weekender. We envisioned a “light-tourer†that would work as a weekday commuter and a weekend getaway machine.
Over the years we have refined the Weekender, but its focus has stayed the same. The riding position is comfortable for the long haul or an evening ride. The shifting is wonderfully simple to use, and the disc brakes get a nice power-boost from our own Linear Slic Kables, made for us by Odyssey®.
The Weekender has a redesigned geometry to work with 27.5 x 2.1" tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.*
Matte Black is available in Medium, Large, and X-Large.
Matte Coral Red is available in X-Small, Small, Medium, and Large.
Matte Black also available as a Frame/Fork Kit only.
*Please note that the X-Small and Small Weekenders use 27.5 x 1.65" Maxxis tires and these frame sizes are not compatible with 700c wheels.
Sizing
X-Small: 4'11 - 5'4" height
Small: 5'2" 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% Chromoly, Disc, w/Rack and Fender mounts (M/L/XL 700c Compatible)
Fork:Â 100% Chromoly. One-piece machined steerer tube
Handlebar: Fairdale Archer v3, AluminumÂ
Stem: 70mm, Forged Aluminum (60mm on XS)
Headset: FSA, Sealed Integrated, 45º/45ºÂ
Brake Lever:Â Promax XL-91
Brake:Â Promax DSK-717
Grips: Fairdale SwanÂ
Saddle: Fairdale Logo SeatÂ
Seat Post: Micro adjust, 27.2mmÂ
Seat Clamp: Fairdale, 30mmÂ
Cranks: FSA Vero Pro 1X NW (XS,S =165mm, M=170mm, L,XL=175mm)Â Â
Chainwheel: 42t Narrow-Wide
BB Parts: FSAÂ
Pedals: Odyssey Twisted PCÂ
Rims: 27.5"/650b, 32-Hole, Aluminum, Double Wall, Pinned Rim, Tubeless compatible
Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Tires (XS/S): 27.5†x 1.65†Maxxis Overdrive
Tires (M/L/XL):Â Maxxis Pace 27.5 x 2.1"
Chain: KMC X9
Cassette: MicroShift CS-H093, 11-42T, 9-Speed
R. Shift Lever: MicroShift Advent Trigger, 9-Speed
R. Derailleur: MicroShift Advent, 9-Speed
Shift Cable: Fairdale
Geometry
Size | XS (50cm) | S (52cm) | M (55cm) | L (58cm) | XL (58cm) |
Top Tube (Effective) | 505mm |
523mm | 545mm | 579mm | 602cm |
Top Tube (Actual) | 487mm |
505mm | 532mm | 559mm | 585mm |
Seat Tube (BB Center to TT Top) | 401mm |
454mm | 485mm | 533mm | 576mm |
Seat Tube (BB Center to TT Center) |
360mm |
414mm | 445mm | 493mm | 536mm |
Seat Tube Angle | 74.5° | 74° | 73° | 73° | 73° |
Head Tube Length | 115mm |
120mm | 122mm | 146mm | 167mm |
Head Tube Angle | 70° | 70° | 71° | 71.5° | 71.5° |
Chain Stay Length | 415mm | 415mm | 440mm | 440mm | 440mm |
Wheelbase | 992mm |
1005mm | 1037mm | 1058mm | 1081mm |
Standover | 717mm |
745mm | 765mm | 800mm | 830mm |
Stack | 512mm |
517mm | 565mm | 589mm | 609mm |
Reach | 361mm |
373mm | 380mm | 398mm | 414mm |
Fork Length | 390mm | 390mm | 416mm | 416mm | 416mm |
Fork Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
BB Drop | 54mm | 54mm | 72mm | 72mm | 72mm |
Dropout Spacing | 135mm | 135mm | 135mm | 135mm | 135mm |
BB Type | English 68 | English 68 | English 68 | English 68 | English 68 |
Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 272.mm |
Seat Clamp | 30mm | 30mm | 30mm | 30mm | 30mm |
Approx. Max Tire Width 27.5"/650b | 47mm | 47mm |
54mm |
54mm |
54mm |
Approx. Max Tire Width 29"/700c | N/A | N/A | 53mm | 53mm | 53mm |
Wheel Size | 27.5" |
27.5" |
27.5" | 27.5" | 27.5" |
