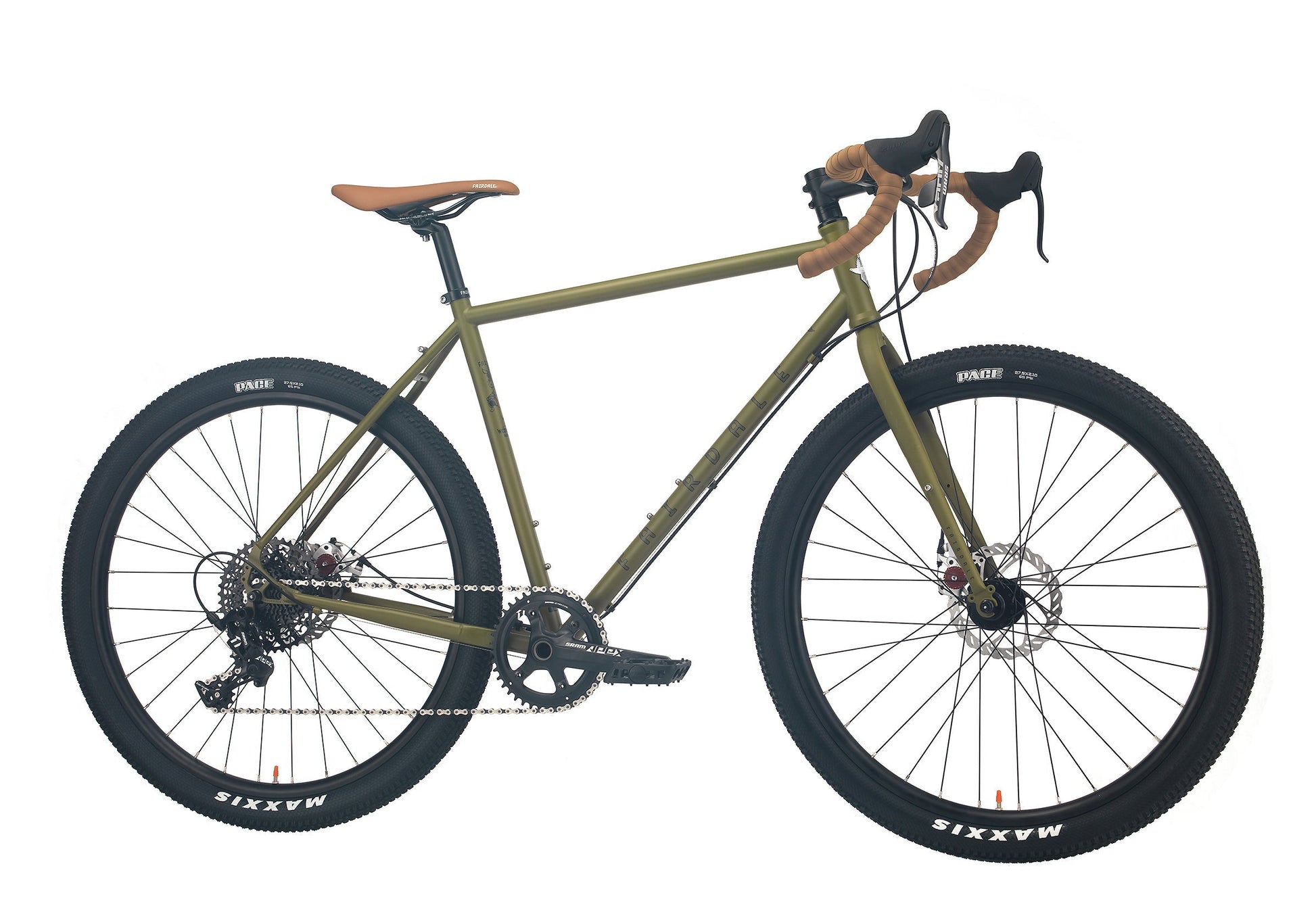

Fairdale Weekender Nomad (Matte Army Green in S-XL)
Fairdale Weekender Nomad (Matte Army Green in S-XL)
The Nomad version of the Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul.
The Weekender Nomad’s 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. This is our top of the line Weekender, and it comes equipped with an amazing parts build, like a SRAM Apex 1x derailleur and shifter, Avid disc brakes, SRAM Apex 1 cranks and Maxxis semi-knobby tires.
The MX features the Weekender’s redesigned geometry that is built around 27.5 x 2.1" tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.
Matte Army Green available in Small, Medium, Large, and X-Large.
*Please note that the X-Small and Small Weekenders use 27.5 x 1.65" Maxxis tires and these frame sizes are not compatible with 700c wheels.
Sizing
Small: 5'2" 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% Chromoly, Disc, with Rack and Fender mounts (M/L 700c Compatible)
Fork:Â 100% Chromoly. One-piece Machined Steerer TubeÂ
Handlebar:Â FSA NS Adventure (S=400mm, M/L=420mm, XL=440mm)
Stem:Â 6061-T6 Forged Aluminum (60mm S, 70mm M, 80mm L and XL)
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: SRAM Apex 1
Brake: Avid BB7 RoadÂ
Grips: Fairdale Cork handlebar tapeÂ
Saddle: Fairdale Race SeatÂ
Seat Post: Micro Adjust, 27.2mmÂ
Seat Clamp: Fairdale, 30mmÂ
Cranks: SRAM Apex 1 (S=165mm, M & L=172.5mm, XL=175mm)Â
Chainwheel: 42t, Narrow-Wide
BB Parts: Neco BB-501
Pedals: Odyssey Twisted PCÂ
Rims: 650b, 32-Hole, Aluminum, Double Wall, Tubeless Compatible
Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Tires (S): 27.5†x 1.65†Maxxis Overdrive
Tires (M/L/XL): Maxxis Pace 27.5" x 2.1"
Chain: KMC X11Â
Cassette:Â SRAM PG-1130, 11-42T, 11-Speed
R. Shift Lever: SRAM Apex 1, 11-Speed (Rear)Â
R. Derailleur:Â SRAM Apex 1, Long Cage, 11-Speed
Shift Cable: Fairdale with Jagwire inline adjuster
Geometry
Size | S (52cm) | M (55cm) | L (58cm) | XL (58cm) |
Top Tube (Effective) | 523mm | 545mm | 579mm | 602cm |
Top Tube (Actual) | 505mm | 532mm | 559mm | 585mm |
Seat Tube (BB Center to TT Top) | 454mm | 485mm | 533mm | 576mm |
Seat Tube (BB Center to TT Center) |
414mm | 445mm | 493mm | 536mm |
Seat Tube Angle | 74° | 73° | 73° | 73° |
Head Tube Length | 120mm | 122mm | 146mm | 167mm |
Head Tube Angle | 70° | 71° | 71.5° | 71.5° |
Chain Stay Length | 415mm | 440mm | 440mm | 440mm |
Wheelbase | 1005mm | 1037mm | 1058mm | 1081mm |
Standover | 745mm | 765mm | 800mm | 830mm |
Stack | 517mm | 565mm | 589mm | 609mm |
Reach | 373mm | 380mm | 398mm | 414mm |
Fork Length | 390mm | 416mm | 416mm | 416mm |
Fork Offset | 50mm | 50mm | 50mm | 50mm |
BB Drop | 54mm | 72mm | 72mm | 72mm |
Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
BB Type | English 68 | English 68 | English 68 | English 68 |
Seat Post | 27.2mm | 27.2mm | 27.2mm | 272.mm |
Seat Clamp | 30mm | 30mm | 30mm | 30mm |
Approx. Max Tire Width 27.5"/650b | 47mm |
54mm |
54mm |
54mm |
Approx. Max Tire Width 29"/700c | N/A | 53mm | 53mm | 53mm |
Wheel Size | 27.5" |
27.5" | 27.5" | 27.5" |
