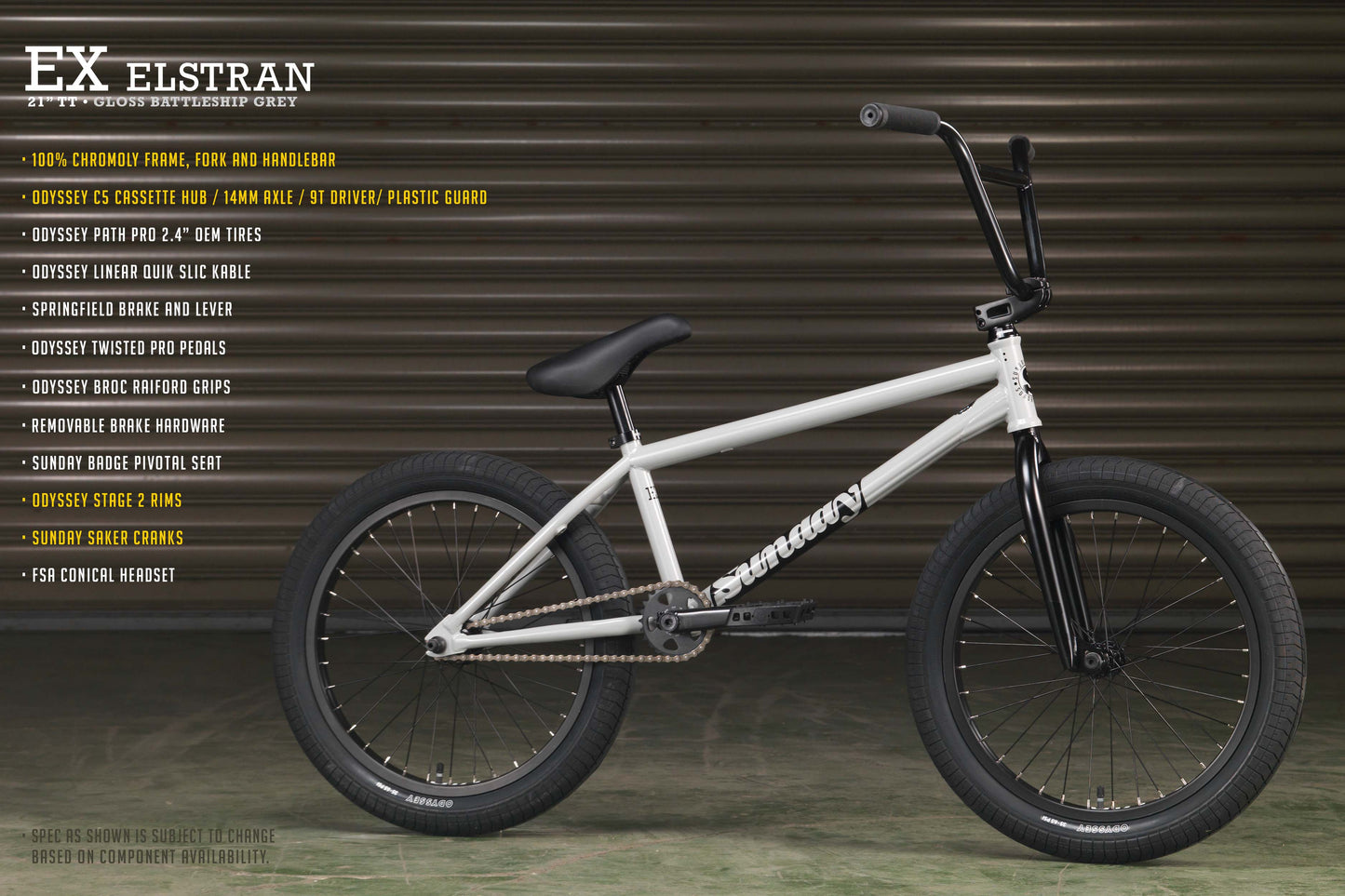

2023 Sunday EX - Erik Elstran Signature (Gloss Battleship Grey with 20.75" tt)

With a 100% chromoly frame, fork, and bars, the EX is a bike that is difficult to match.

Erik Elstran’s signature model pushes the envelope with a tough, pro-level, Odyssey/Sunday parts package and frame design upgrades like the EX’s removable braking hardware mean business, even when your approach to riding is all about having fun - just like Erik’s.

Follow @erikelstran.

Key Features

• 100% Chromoly Frame, Fork, and 4-piece Bars
• Sunday Signature Wave Down Tube
• Sunday Seeley Signature Grips
• FSA Conical Headset
• Sunday Sabretooth v2 25t Sprocket
• Sunday Saker 3-PC Cranks, 165mm
• Odyssey Path Pro OEM 2.40" Tires
• Odyssey Stage 2 Rims
• Odyssey C5 Cassette Hub
• Sealed Front and Rear Hubs

Specifications

Frame:Â Sunday EX, 20.75" TT, 100% chromoly frame with wave downtube, w/ removable brake hardware
Fork:Â Sunday EX, 20", 100% chromoly fork w/ 2-piece steerer tube and welded pre-load, 25mm offsetÂ
Handlebar:Â Sunday, 100% chromoly, 4-pieceÂ
Stem:Â Sunday Freeze front load, 48mmÂ
Headset:Â FSA integrated conical, 1-1/8"Â
Alloy Cap:Â Â Sunday M16, aluminumÂ
Brake Lever:Â Â Odyssey SpringfieldÂ
Brakes:Â Odyssey Springfield U-brakeÂ
Brake Cable:Â Â Odyssey Quik SlicÂ
Grips:Â Sunday Jake SeeleyÂ
Seat:Â Sunday Badge, PivotalÂ
Seat post:  Sunday PivotalÂ
Seat Clamp:Â SundayÂ
Sprocket: Sunday Sabertooth v2, 25T, 6061 aluminumÂ
Cranks:Â Sunday Saker, 165mm
BB Parts:Â Sealed, Mid, 19mm
Pedals:Â Odyssey Twisted PC ProÂ
Rims:Â Odyssey Stage 2, 20", 36H
Front Hub:Â Sunday, 36H, low-flange, sealed , 3/8" female axleÂ
Rear Hub:Â Odyssey C5 Cassette Hub, 36H, 14mm male axle, 9T Driver, non-drive side plastic guard
Spokes:Â 14g steel, blackÂ
Tires:Â Odyssey Path Pro OEM, 20 x 2.4" (F & R)Â
Chain:Â KMC Z1 wide
Approx. Weight: 25.75lbs (with brakes)

Frame GeometryÂ

Top Tube Length:Â 20.75"Â
Head Tube Angle: 75°Â
Seat Tube Angle: 71°Â
Chainstay Length: 13.2-13.5â€Â
Bottom Bracket Height:Â 11.5"Â
Standover:Â 9"Â

Handlebar GeometryÂ

Rise:Â 9"Â
Width:Â 29"Â
Backsweep: 12°Â
Upsweep: 3°
