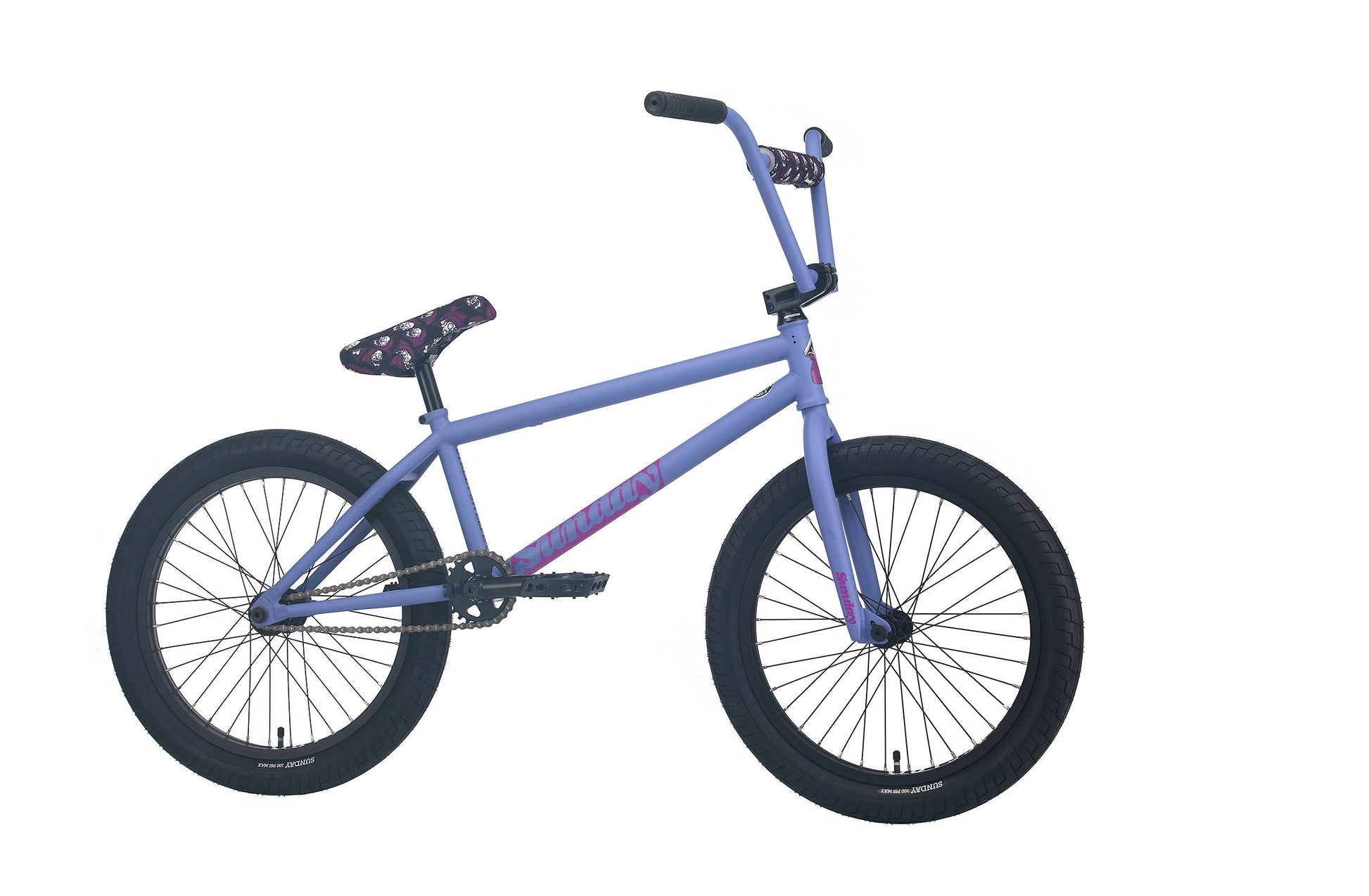

2023 Sunday Street Sweeper - Jake Seeley Signature (Matte Blue Lavender with 20.75" tt in LHD or RHD)

The Street Sweeper is designed with serious street riders in mind.

Built around Jake Seeley’s all-new chromoly aftermarket signature frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed Odyssey Clutch freecoaster and Sunday Street Sweeper tires, this is truly a pro-level bike. Follow @thejakeseeley.

Key Features

• Aftermarket Sunday Street Sweeper frame
• 100% Chromoly Forks and 4-piece Bars
• Sunday Seeley Signature Grips
• Sunday Seeley Seat, Pivotal
• Odyssey Clutch v2 Freecoaster
• Odyssey Quadrant Rims
• FSA Conical Headset
• Right Hand or Left Hand Drive
• Sunday Street Sweeper 2.4" Tires

Specifications

Frame:Â Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
Fork:Â Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offsetÂ
Handlebar: Sunday, 100% chromoly, 4-piece with bar pad
Stem:Â Sunday Freeze Top load, 48mmÂ
Headset:Â Â FSA integrated conical, 1-1/8"Â
Alloy Cap:Â Â Sunday M16, aluminumÂ
Brake Lever:Â Â Odyssey SpringfieldÂ
Brakes:Â Odyssey Springfield U-brakeÂ
Brake Cable:Â Â Odyssey Quik SlicÂ
Grips:Â Sunday Jake SeeleyÂ
Seat:Â Sunday Seeley, Pivotal
Seat post:  Sunday PivotalÂ
Seat Clamp:Â IntegratedÂ
Sprocket:Â Sunday Sabretooth v2, 25T, 6061 aluminumÂ
Cranks:Â 160mm, 3-piece, chromolyÂ
BB Parts:Â Sealed, Mid, 19mmÂ
Pedals:Â Odyssey Twisted PC ProÂ
Rims:Â Odyssey Quadrant, 20", 36HÂ
Front Hub:Â Sunday, 36H, low-flange, sealed , 3/8" female axleÂ
Rear Hub:Â Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive PC guardÂ
Spokes:Â 14g steel, blackÂ
Tires:Â Sunday Street Sweeper v2, 20 x 2.4" (F & R)
Chain:Â KMC Z1 wide
Approx. Weight: 24.97lbs (brakeless)

Frame GeometryÂ

Top Tube Length:Â 20.75"Â
Head Tube Angle: 75.25°Â
Seat Tube Angle: 71°Â
Chainstay Length: 12.7"-13â€Â
Bottom Bracket Height:Â 11.7"Â
Headtube Length:Â 4.7"
Standover: 8.85â€Â

Handlebar GeometryÂ

Rise:Â 9"Â
Width:Â 29"Â
Backsweep: 12°Â
Upsweep: 3°
