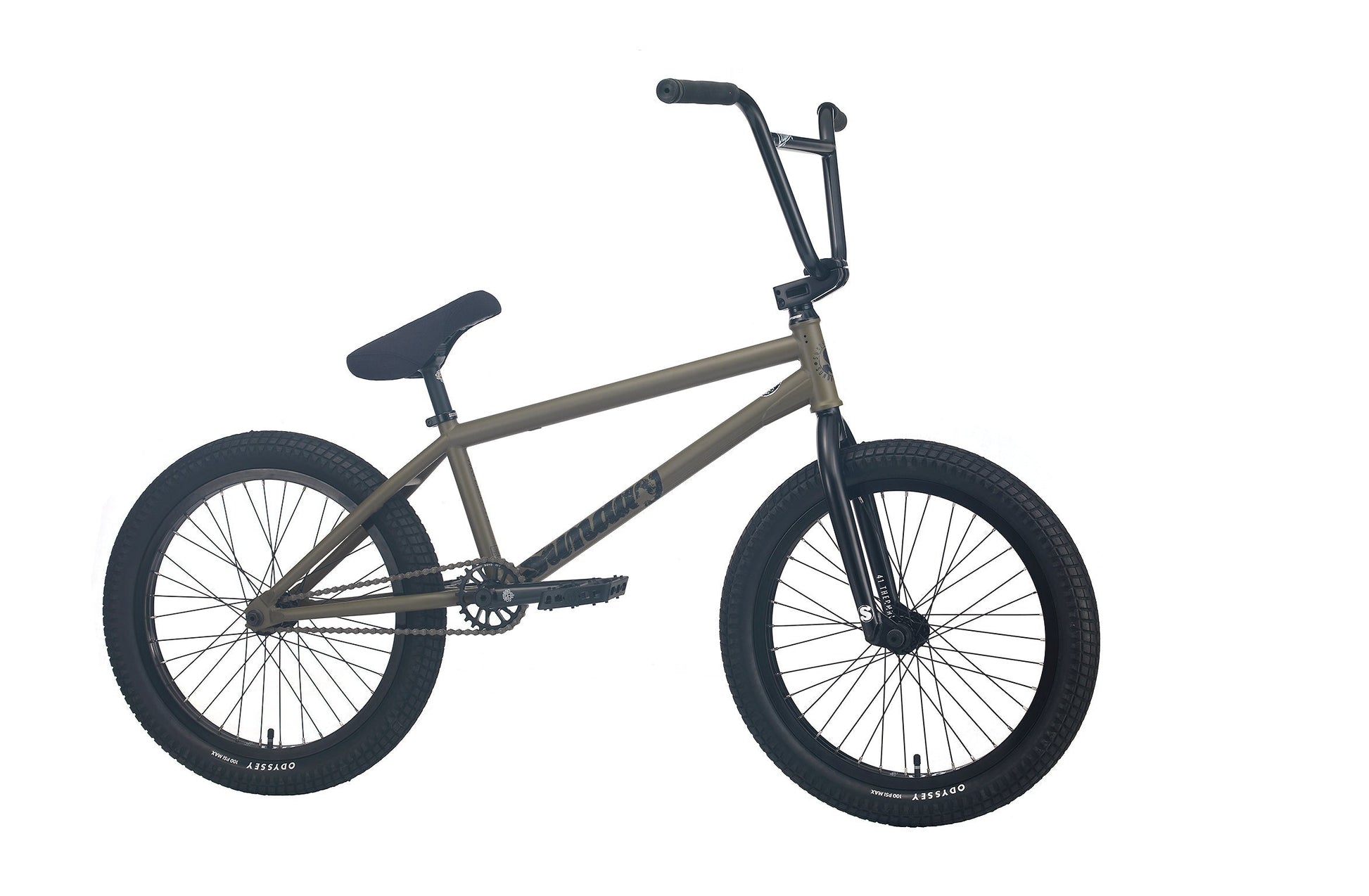

2023 Sunday Wavelength - Gary Young Signature (Matte Army Green with 21" tt in RHD/LHD)

All-new for this year is the Gary Young Wavelength complete.

This model features Gary’s new signature frame along with an amazing aftermarket parts package including right-hand, left-hand switchable Odyssey Calibur V2 Cranks, switchable Antigram V2 Cassette hub, Evo 2.5 brakes, Aitken Street tires and loads of aftermarket parts for a build similar to the previous Soundwave Special cassette bike.

Follow @garybyoung.

Key Features

• Sunday Wavelength 100% Chromoly Frame

• Sunday Darkwave 41-Thermal Forks
• Odyssey BROCÂ 41-Thermal Bars

• Odyssey Calibur Cranks
• Odyssey Evo 2.5 Brakes

• Odyssey Antigram v2 Cassette
• Odyssey Vandero Pro Front Hub
• Odyssey Hazard Lite Rims
• Odyssey Aitken Street Tires

Specifications

Frame: Sunday Wavelength, 21" TT, 100% chromoly, aftermarket frame, w/ removable brake hardware
Fork: Sunday Darkwave, 20", 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
Handlebar: Odyssey Super Highway Bar, 41-Thermal, aftermarket bar
Stem: Sunday Freeze top load, 48mm
Headset:Â FSA integrated conical, 1-1/8"
Headset Cap: Sunday aftermarket, aluminum
Brake Lever:Â Odyssey Monolever
Brakes:Â Odyssey Evo 2.5
Brake Cable:Â Odyssey Linear Quik Slic
Grips: Odyssey Warnin'
Seat: Odyssey Slugger Stitch, Pivotal
Seat Post: Odyssey PivotalÂ
Seat Clamp:Â Sunday aftermarket
Sprocket: Odyssey BOYD Sprocket, 25T
Cranks: Odyssey Calibur V2, 170mm, 100% chromoly, RHD/LHD Compatible Â
BB Parts: Sealed, Mid, 22mm
Pedals:Â Odyssey Twisted PC Pro
Rims:Â Odyssey Hazard Lite, 20", 36H
Front Hub:Â Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guardsÂ
Rear Hub: Odyssey Antigram V2 cassette, 36H, 14mm female axle w/ 9T driver, RHD/LHD Switchable, non-drive side plastic guard
Spokes:Â 14g steel, blackÂ
Tires: Odyssey Aitken Street, 2.45" (F & R)
Chain: KMC Z1 eHX-W

Frame GeometryÂ

Top Tube Length:Â 21"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length:Â 13.65"-14"Â
Bottom Bracket Height:Â 11.5"Â
Standover:Â 9"Â

Handlebar GeometryÂ

Rise:Â 9.5"Â
Width:Â 29"Â
Backsweep: 11°Â
Upsweep: 1°
