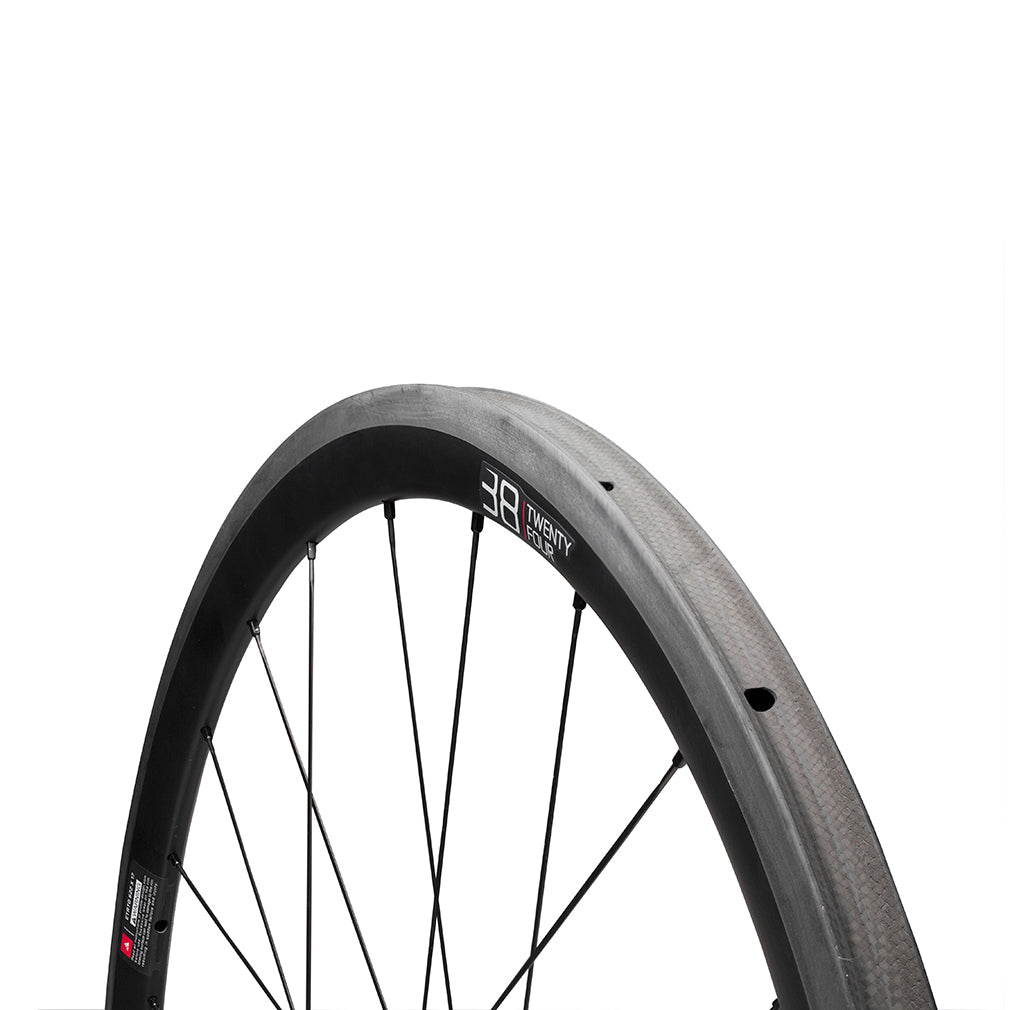

Profile Design 38/TwentyFour Tubular Rear

Overview

Brake Performance

Specifically formulated to withstand the same heat our rims can take on, our brake pad compound is exclusive for TwentyFour Series wheels. Using a specially formulated rubber compound, durometer and friction agent, we developed a proprietary brake pad and reduced braking distances over that of other carbon fiber wheelsets.Â

Specifications

• CFD and wind tunnel developed proprietary carbon fiber 38mm low profile tubular rim.
• High TG resin.
• Extra stiff hub shell design.
• Proprietary precision machined alloy hubs.
• Sapim CX-Ray Spokes with Polyax double square nipples.
• Sealed cartridge bearings.
• Hand-built assembly.
• 11/10S Shimano compatible.

Each 38/TwentyFour Wheel Includes

• Profile Design quick-release skewers.
• Profile Design Carbon-Specific P220 TwentyFour Series brake pads.
• 2Â Spokes & 2 Nipples (extra).

Specs

Rear Wheel

• Weight:Â 915g
• Size:Â 700c
• Hub:Â 6061-T6 Alloy
• Bearing Size:Â 6802
• Rim Depth:Â 38mm
• Rim Width:Â 24.5mm
• Rim Width (Inside):Â 17mm
• Color:Â UD Carbon
• Spokes: Sapim® CX-Ray Aero Spoke
• Spoke Shape:Â Straight Pull, Bladed
• Spoke Count:Â 24
• Spoke Pattern Non-Drive:Â Radial
• Spoke Pattern Drive:Â 2 cross
• Nipples:Â 7075 Alloy Polyax Double Square
• External Nipples:Â Yes
• 11-Speed Compatible Hub:Â Yes
• Max Tire Pressure:Â 125psi

Wheelset

• Max Recommended Rider Weight (lbs):Â 220lb
