S&M ATF XL (PURPLE HAZE) ARYEI LEVENSON COLORWAY)
S&M ATF XL (PURPLE HAZE) ARYEI LEVENSON COLORWAY)
Regular price
$519.95
Regular price
$530.00
Sale price
$519.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

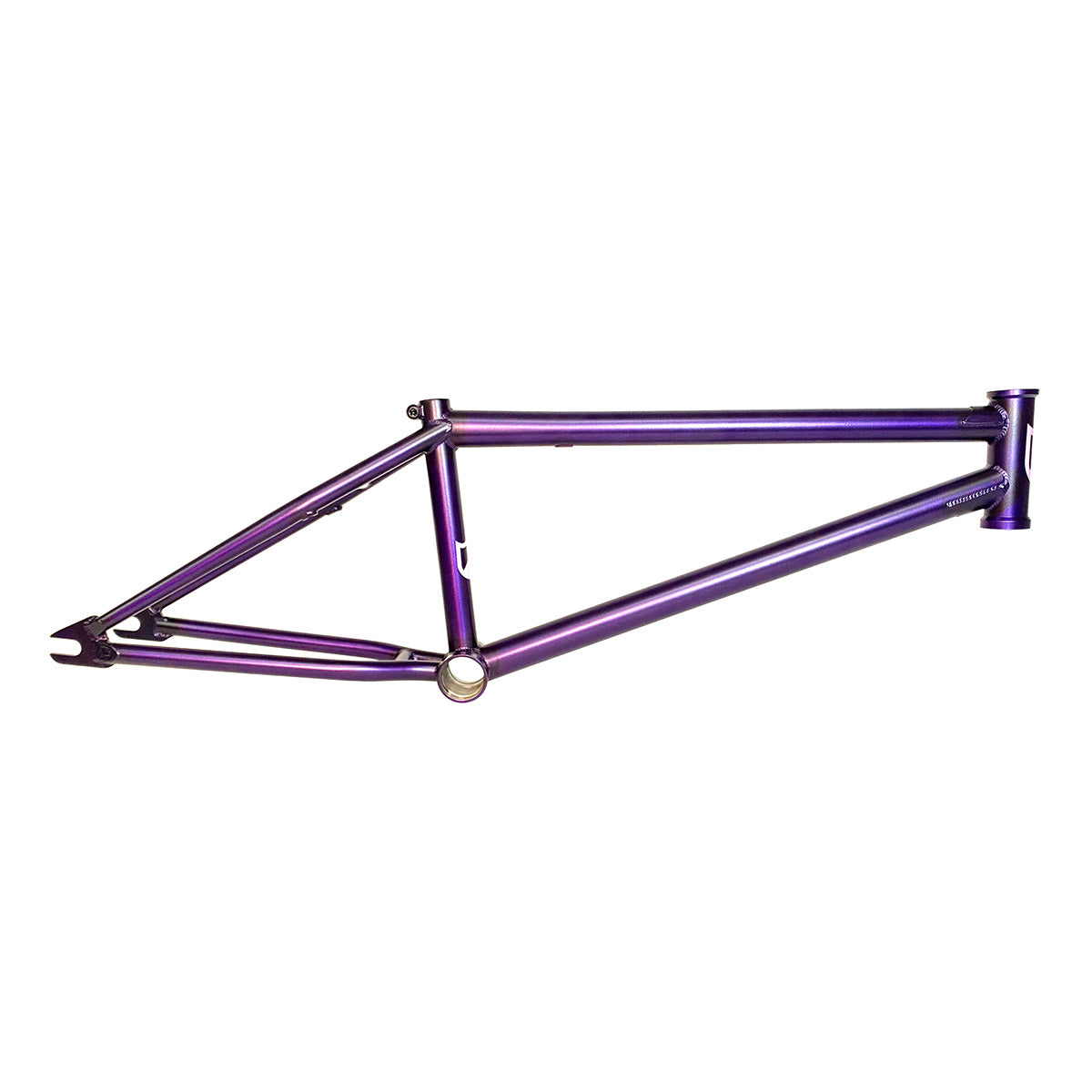

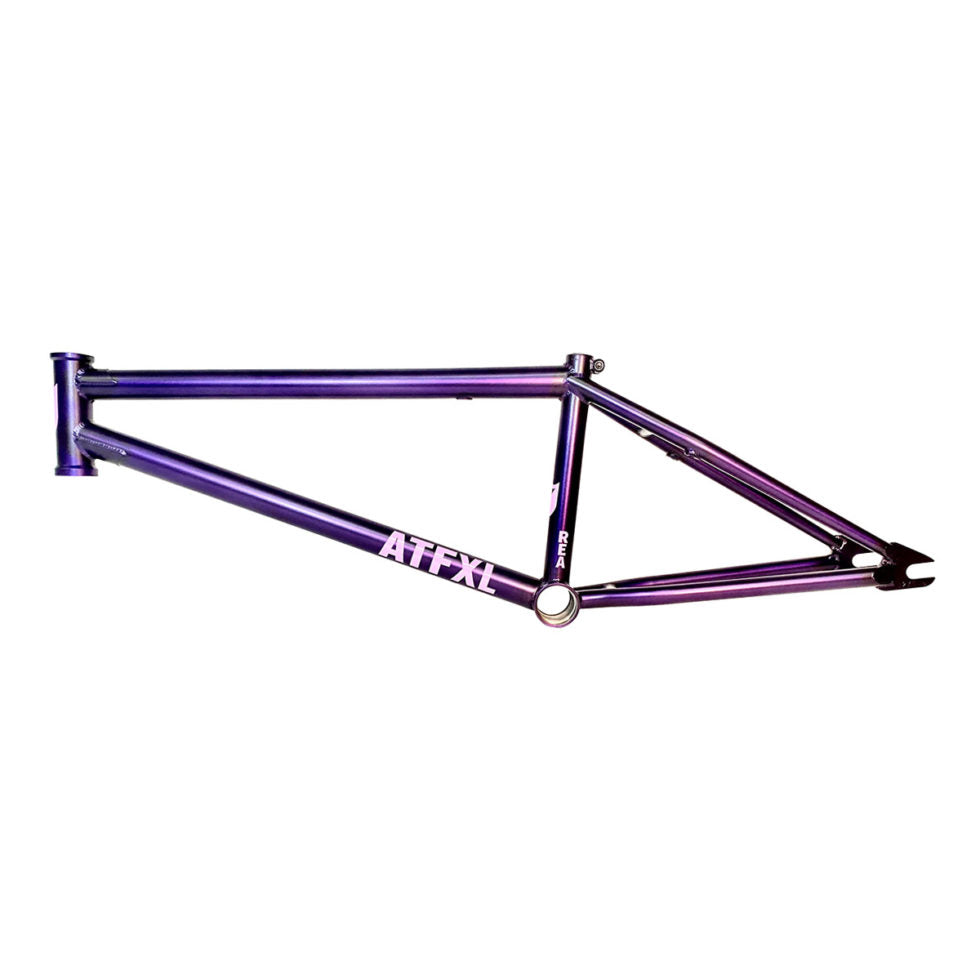

This is the frame that Aryei Levenson wanted and he does it all. The ATF XL takes the tried & true ATF frame to the next level. With extended Headtube, Standover, and TT sizes up to 22". Ready for action on all terrains. Aryei signed off on the “Purple Haze†colorway, too.
| TOP TUBE LENGTHS | 21″, 21.25″,21.5″,22″ |
| REAR END LENGTH | 13.4″ |
| HEAD TUBE ANGLE | 75° |
| HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE | 71° |
| SEAT CLAMP | Integrated |
| SEAT POST SIZE | 1″ (25.4mm) |
| BB HEIGHT | 11.7″ |
| BB STYLE | Mid |
| STANDOVER HEIGHT | 9″ |
| BRAKE MOUNTS | Thread-On 990 (Mounts sold separately) |
| DROPOUTS | 14mm Slot, 4Q-Baked |
| GYRO TABS | None |
| WEIGHT | 4.75 lb (2.15 kg) |
| TUBESET | Butted Thermal-X Tubing |
