BSD Freedom Frame (Various Colors)

Kriss Kyle's new signature Freedom frame, designed to perform well on all terrain this frame combines the stability of a low 11.5" BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle we've utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!!

The Freedom frame's is based round the popular Passenger frame with a few new updates including an invest cast chainstay wishbone and seatstay bridge creating a much stiffer rear end especially good for sideways landings! The Freedom frame is designed for all types of riding.

Features

• Kriss Kyle signature
• Invest cast wishbone
• Extra wide rear end for up to 2.4â€ tyres

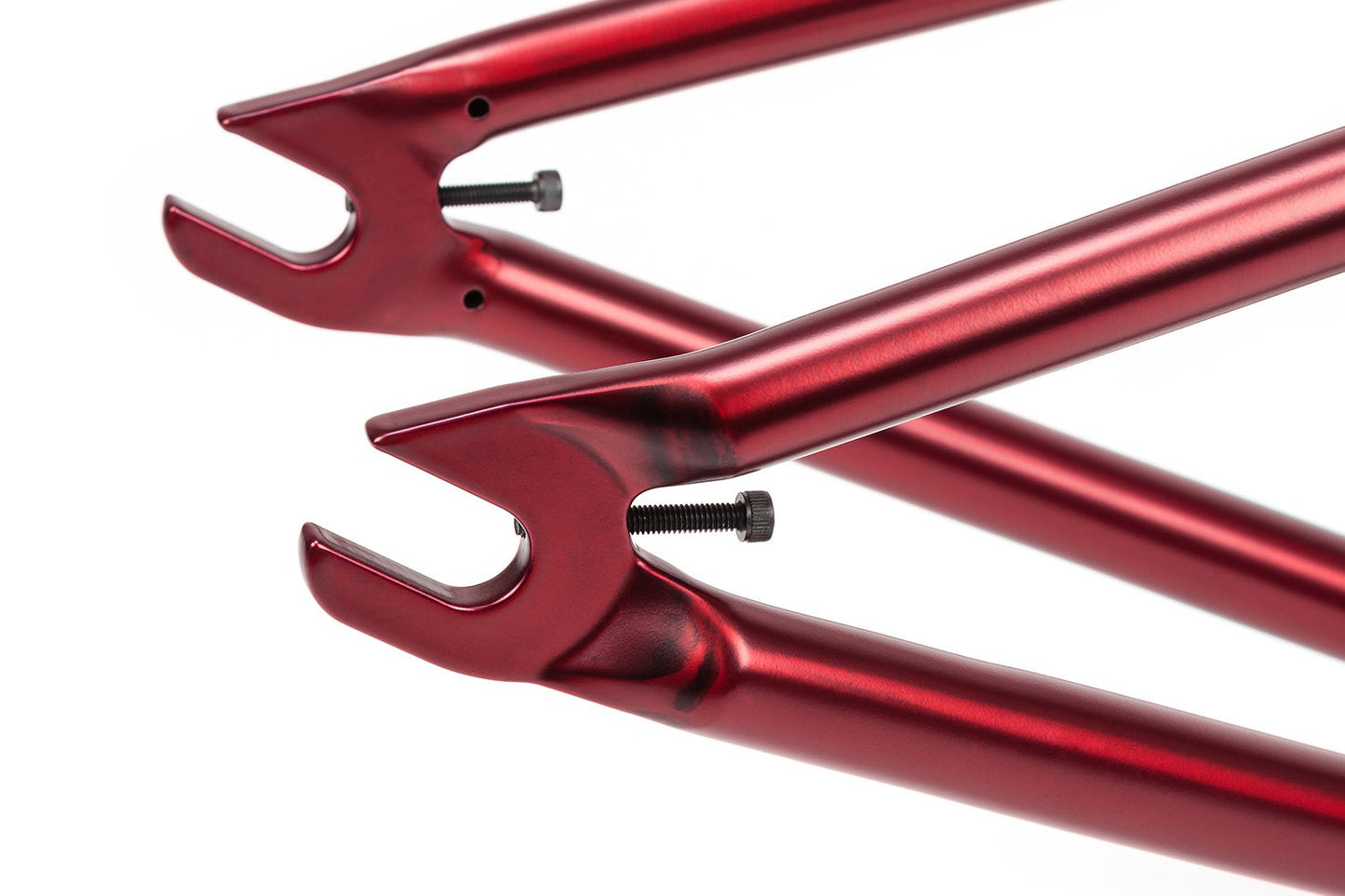

• Invest cast seatstay bridge - 7mm thick invest cast dropouts
• Invest cast seatclamp - Built in chain tensioners
• Sanko Japanese seamless 4130 Chromoly tubing

Specs

Top Tube Lengths: 20.2â€, 20.5â€, 20.8â€, 21.1â€, & 21.5â€ XL*
*XL version features a longer rear end (13.4 - 13.825â€)
Head Tube Angle: 75°
Seat Tube Angle: 69.5°
Bottom Bracket Height: 11.5â€
Standover: 9â€
Chainstay Length: 13.2 - 13.625â€
Weight:Â 5 lbs.
