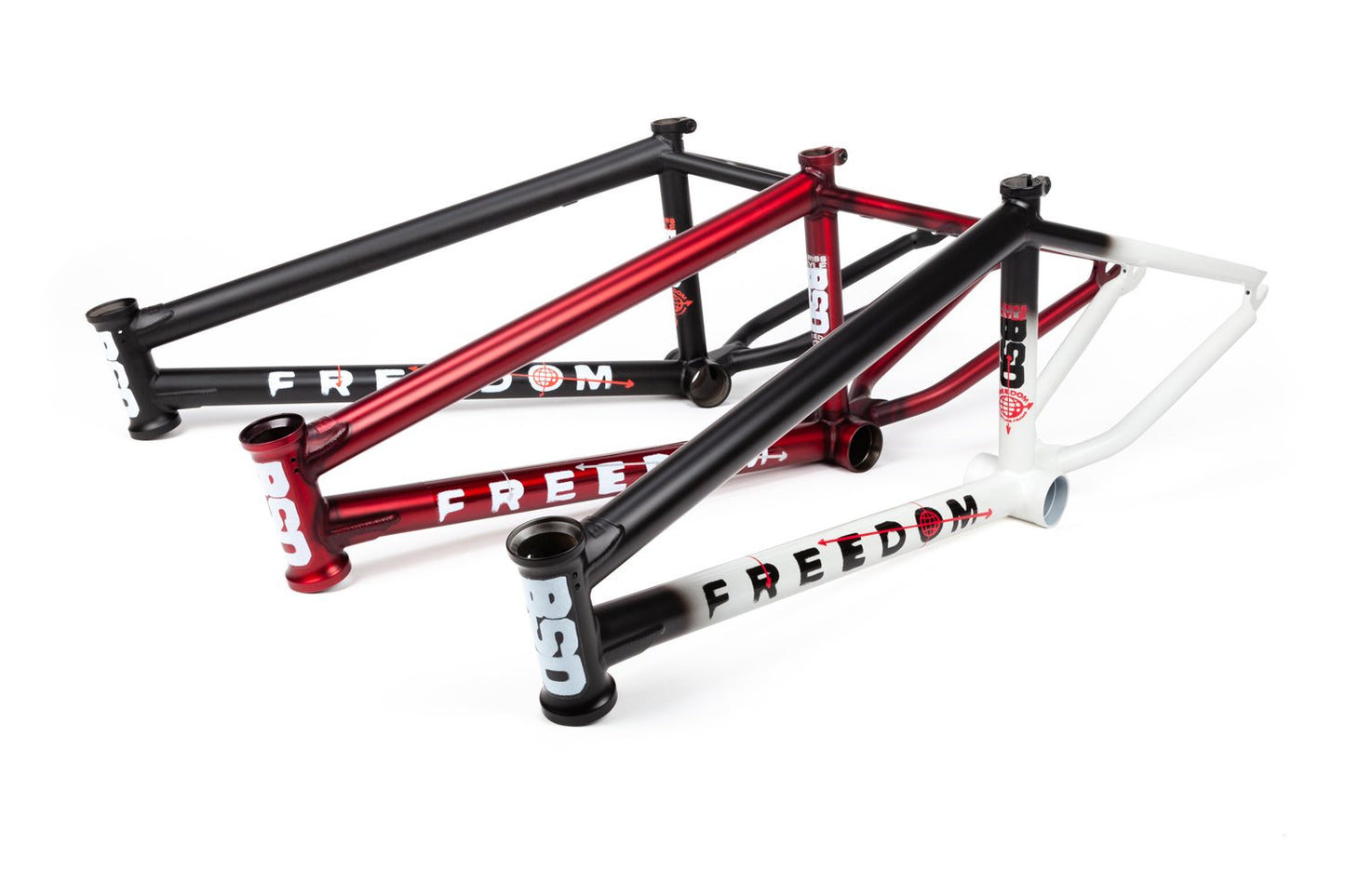

BSD Freedom Frame (2019 Flat Black)
BSD Freedom Frame (2019 Flat Black)
Kriss Kyle's new signature Freedom frame, designed to perform well on all terrain this frame combines the stability of a low 11.5" BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle we've utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!!
The Freedom frame's is based round the popular Passenger frame with a few new updates including an invest cast chainstay wishbone and seatstay bridge creating a much stiffer rear end especially good for sideways landings! The Freedom frame is designed for all types of riding.
Features
- Kriss Kyle signature
- Invest cast wishbone
- Extra wide rear end for up to 2.4†tyres
- Invest cast seatstay bridge - 7mm thick invest cast dropouts
- Invest cast seatclamp - Built in chain tensioners
- Sanko Japanese seamless 4130 Chromoly tubing
Specs
Top Tube Lengths: 20.2â€, 20.5â€, 20.8â€, 21.1â€, & 21.5†XL*
*XL version features a longer rear end (13.4 - 13.825â€)
Head Tube Angle: 75°
Seat Tube Angle: 69.5°
Bottom Bracket Height: 11.5â€
Standover: 9â€
Chainstay Length: 13.2 - 13.625â€
Weight:Â 5 lbs.
