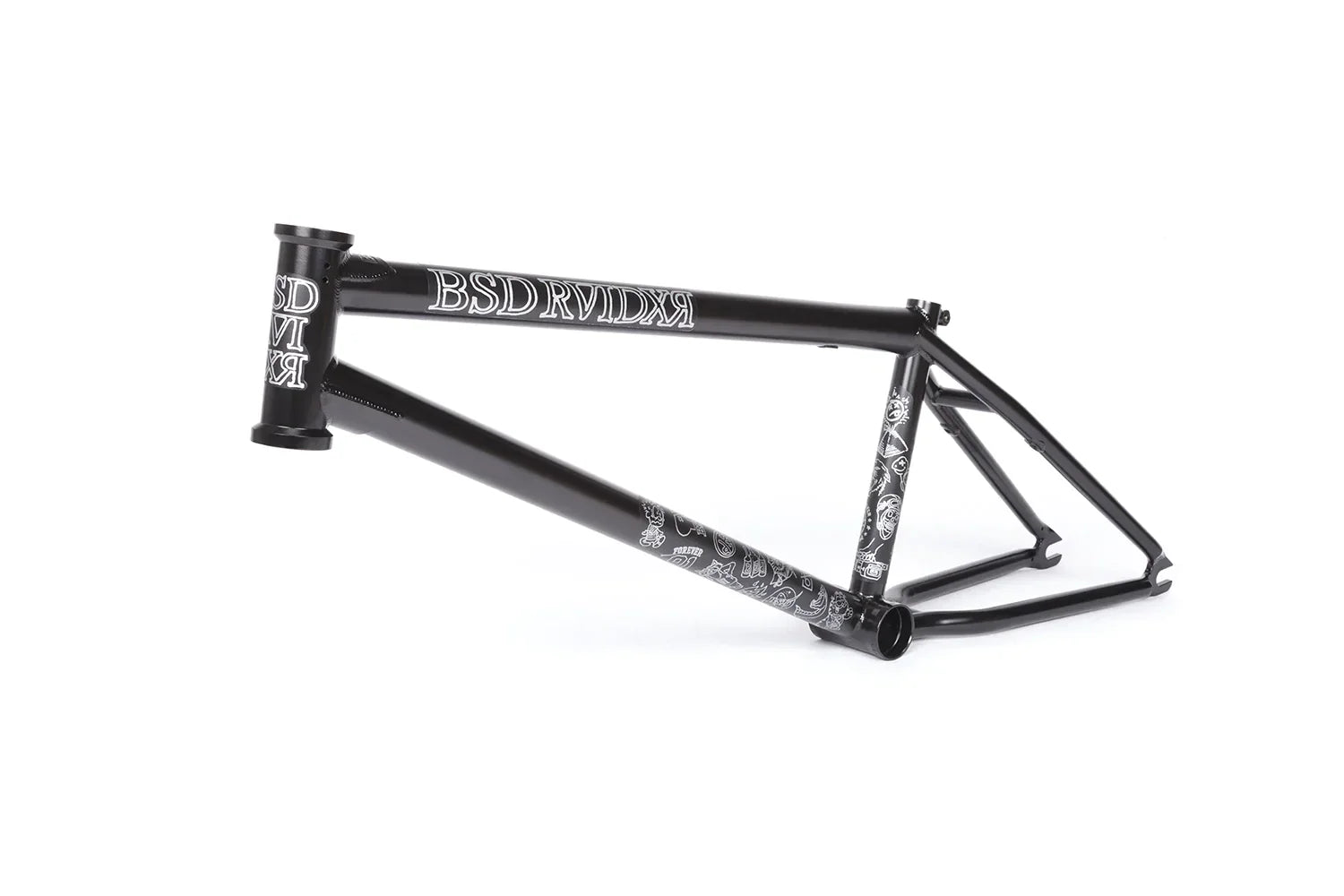

BSD Raider Frame (Black)

David Grant designed the Raider to be a bigger more stable street frame than the other BSD frames, with a mid length rear end and super tall geometry, this frame is built to grind and handle huge set ups.

Features

• Davis Grant signature
• Invest Cast Dropouts: Because the dropout is cast as one piece it's much stronger than a plate welded to a tube. 7mm thick to provide good support for your axle, and the small shape has been designed for grinding meaning there's no overhang to catch on ledges or rails, also the dropout is heat treated before welding making it extra tough. And finally there;s an integrated chain tensioner bolts inside.
• Taller Headtube: The Raider frame is a tall frame with a big standover and because of this it also has a taller headtube to keep the frame angles looking nice. The taller headtube distributes stress at the front of the frame over a larger area and also means you can run your stem and forks with no headset spacers for a cleaner look up front.
• External Gussets: On a frame the highest concentration of stress is at the junctions between the headtube/toptube and headtube/downtube. To handle the pressures of modern riding, the required strength is achieved by beefing this area up using a combination of butted tubing and external gussets.

Specs

Top Tube Lengths: 20.7", 21", 21.3", 21.6" or 21.9"
Head Tube Angle: 75.2°
Head Tube Length: 123mm
Seat Tube Angle: 71°
Chainstay Length: 13.5-14"
BB Height: 11.75"
Standover: 9.5"
Weight: 5lbs.
Brake Mounts: None (Brake kit available separately)
