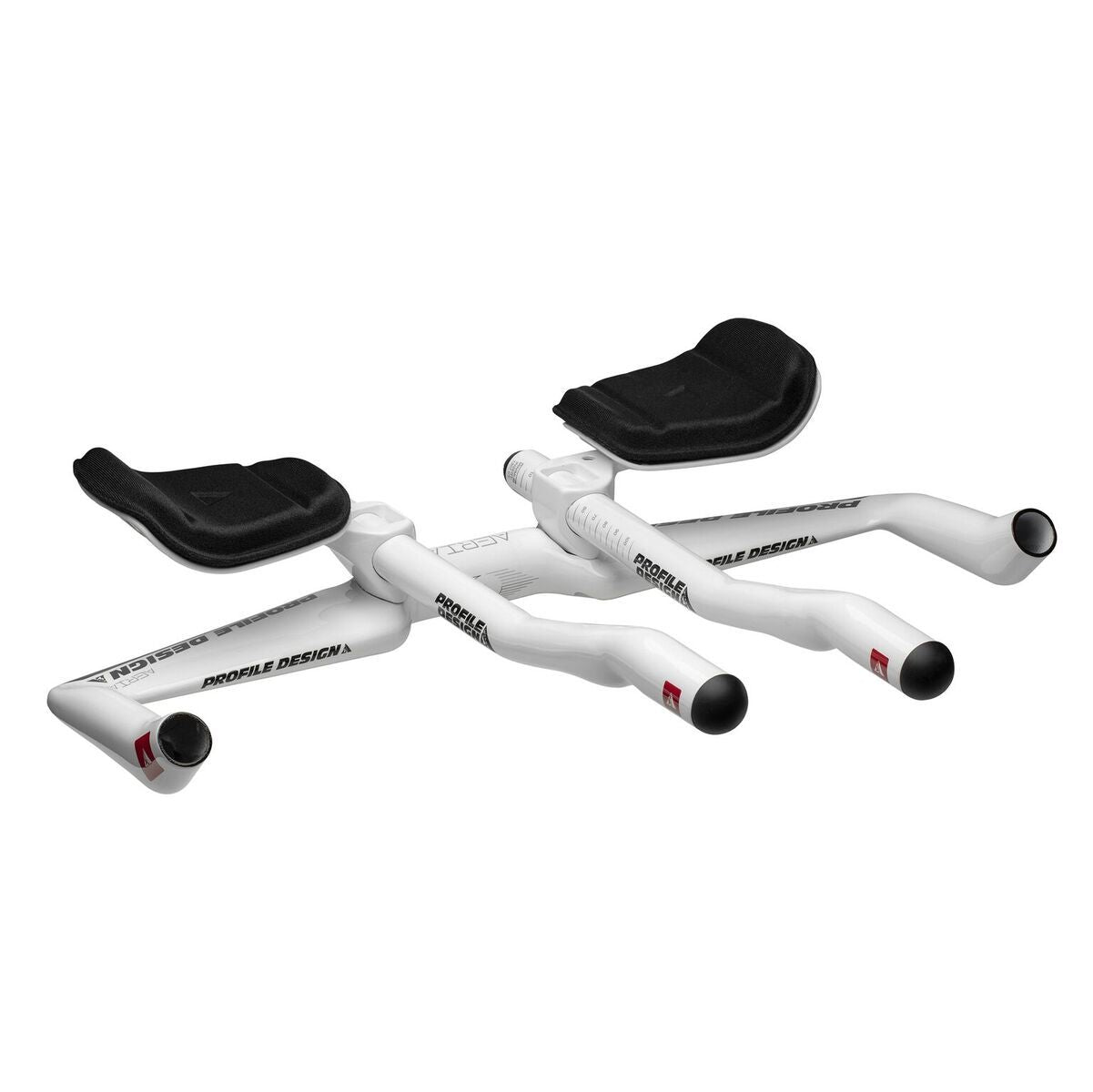

Profile Design Aeria T2 Carbon - White

Overview

Aero should be simple. It should not take never-ending turns of excessive bolts to dial in greatness. The elegant design of the Aeria easily fine-tunes to the millimeter to fit any type of rider. Only 8 hidden marine-grade bolts control the Aeria’s 6 points of adjustment, allowing bike fitters the freedom to fit any athlete with simplicity.

Specifications

• Integrated Brackets: Aeria is lightweight, simple and easy to adjust.The Aeria’s patented bracket system simultaneously clamps the extensions while attaching the brackets to the wing. This design yields a smaller profile in the wind, creates less drag, and minimizes corrosion issues from exposed bolts.

• Wing: UCI Compliant 3:1, aerodynamic full carbon fiber wing has zero drop from clamp to brake extensions. Combined with a shorter reach, this design translates to better control.

• Stackable Risers: Slim, sleek risers fine-tune armrest/extension height to get a perfect blend of aerodynamics, power and comfort.

• F-35c Carbon Armrest: 3x fore/aft positioning, providing 30mm of adjustment while also allowing for 15° (+/- 7.5°) of rotation adjustment to angle armrests for customized fit.
• T2+ Carbon Extensions:Â Aeria T2 ships with the race-oriented T2+ Carbon extension for the most aggressive positioning. The S-Bend extension shape combined with the 30mm rise provides a variety of low hand placement positions.

Engineering

UD Carbon wing combines with the most dynamic integrated bracket system on the market that uses only 4 bolts to simultaneously affix bracket and extension.

Fit

The patent pending bracket system is stackable up to 135mm in 5mm increments. Armrests are width and fore/aft adjustable. A zero drop basebar with short reach provides more stable climbing and cornering position. Combined with a shorter reach, this design translates to better control.

Aerodynamic Wing

UCI compliant hydroformed wing combined with the hidden bolts and aero risers creates an ultra low drag system while minimizing corrosion issues from exposed bolts. Wind tunnel analysis proves that achieving stack with the Aeria risers creates less drag than using steerer tube spacers.

Integrated Bracket

Lightweight, simple and easy to adjust – the patent-pending bracket system simultaneously clamps the extensions while attaching the brackets to the wing. This design yields a smaller profile in the wind, creates less drag, and minimizes corrosion issues from exposed bolts.Â

Stackable Risers

Slim, sleek risers fine-tune armrest/extension height to get a perfect blend of aerodynamics, power and comfort.

Tech Specs

• Basebar Width:Â 42cm (Center-to-Center)
• Armrest:Â F-35c Carbon Armrest
• Stack:Â 55mm-135mm (highest stack available of any Profile Design model)
• Reach:Â -60mm, -40mm, -30mm or -10mm with the bracket flipped
• Extension Adjustment:Â 200mm-300mm (T2+ Carbon extensions)
• Extension Drop:Â 0mm
• Center Clamp Diameter:Â 31.8mm
• Armrest Width:Â 155mm-203mm
• Color: Gloss White

Tech Guide

Torque settings

• Bar Clamp:Â 6Nm
• Riser Bolts:Â 6Nm
• Armrest Bolts:Â 4.7Nm

Weight

• Bracket: 136g (pair)
• Armrest: 96g (pair)
• Extensions:Â 132g (pair)
• Total: 661g (without stem or armrest risers)

Manual

Aeria Aerobar Installation Instructions

F-35 Armrest Installation Instructions
