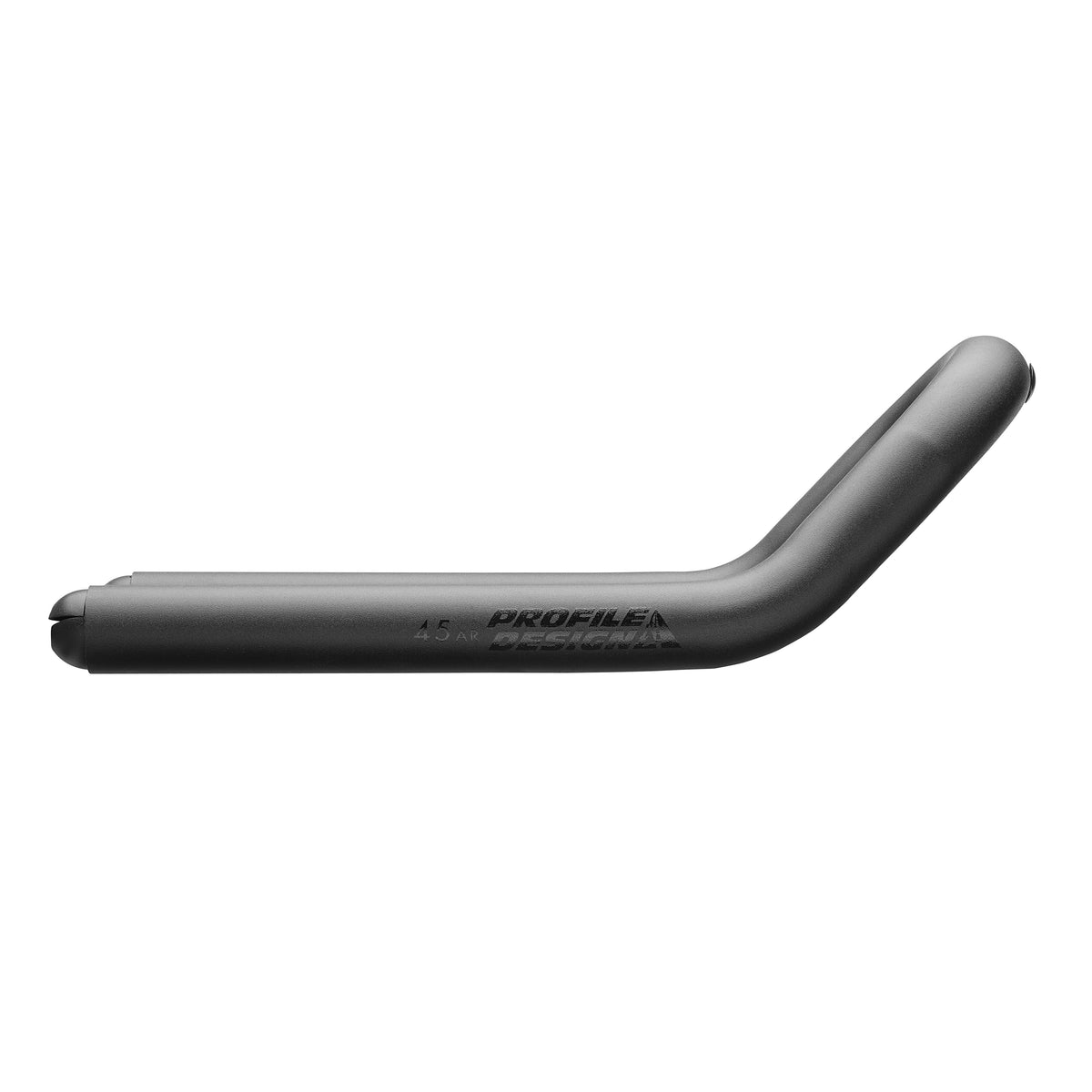

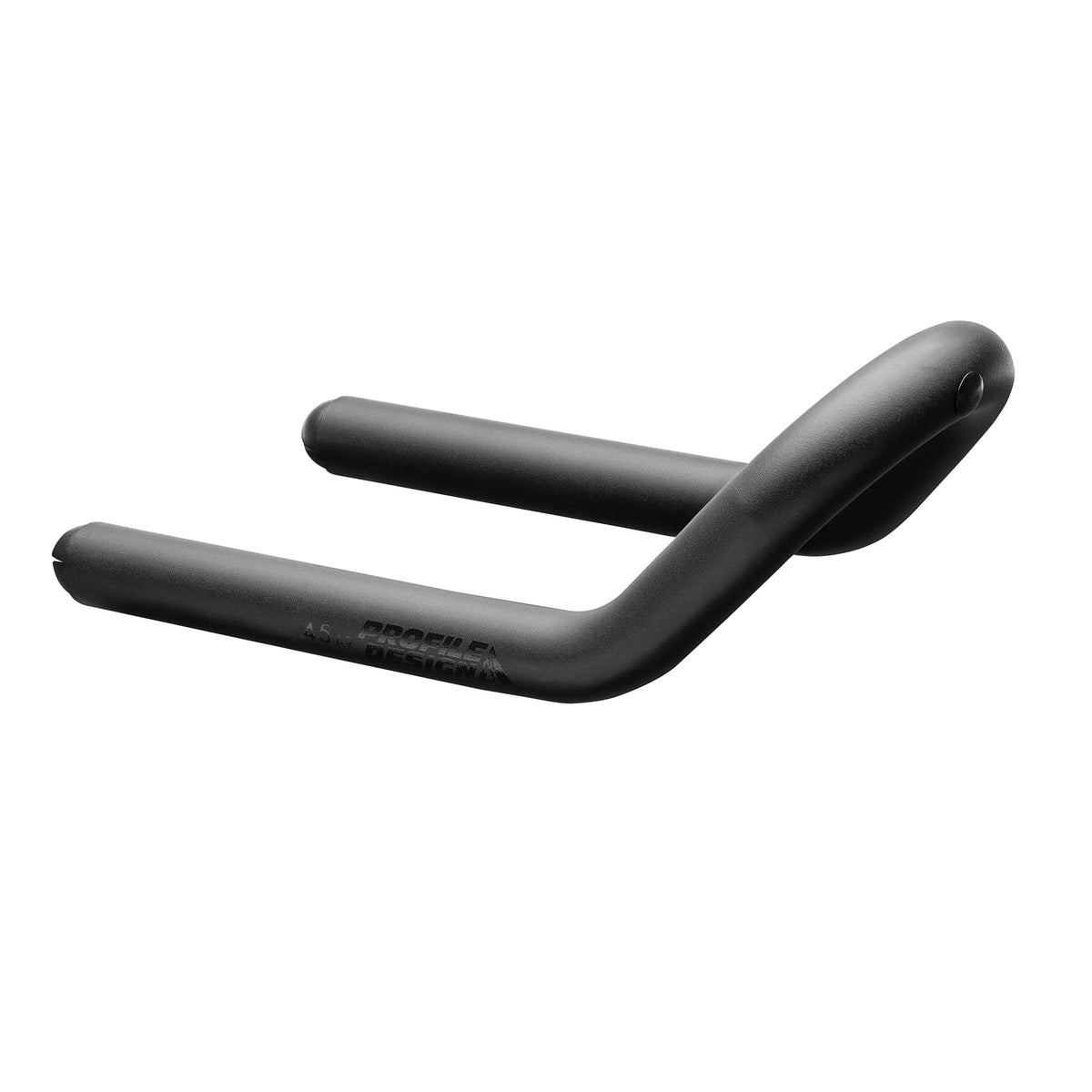

Profile Design 45AR Aluminum Extension

Overview

The 45AR extensions offers comprehensive yet simple
adjustment, ideally suited to riders wishing to add short extensions to their
road, gravel or packing bike.

Tech Specs

• Length:Â 240mm
• Angle:Â 45 Degrees
• Rise:Â 62mm (bottom to top)
• Extension Width:Â 100mm
• Outer Diameter:Â 22.2mm
• Inner Diameter:Â 19.4mm
• Construction:Â 6061-T6 aluminum
• Weight:Â 137g

Tech Guide

Torque settings (all bolts are M6)

• Bar Clamp:Â 6Nm
• Extension Clamp:Â 5Nm
• Armrest Bolts:Â 4.7Nm

Manual

Sonic Ergo 45AR Installation Instructions
