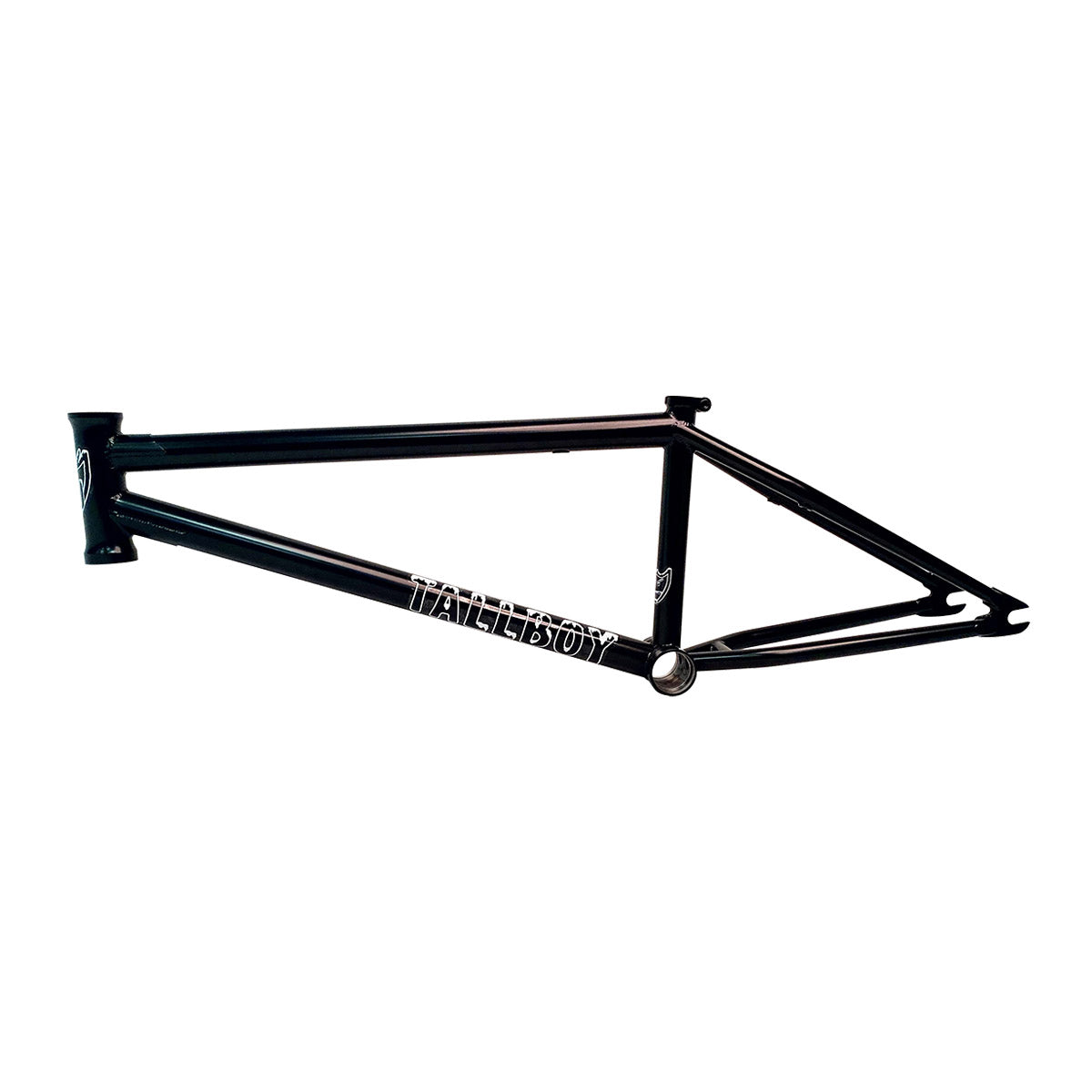

S&M TALL BOY V3 FRAME
S&M TALL BOY V3 FRAME
Regular price
$519.95
Regular price
$530.00
Sale price
$519.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Dreams do come true. When asked to describe V3 of his signature frame, Charlie Crumlish simply said: “I was chasing this geometry for years and finally found it.â€Â Taller head tube, taller standover, responsive geometry without being over the top (or over the bars), the Tallboy V3 is everything you (and Charlie) need in a utilitarian street vessel.
| TOP TUBE LENGTHS: | 20.75″, 21″,21.25″,21.5″ |
| REAR END LENGTH: | 13.25″ |
| HEAD TUBE ANGLE: | 75.25° |
| HEAD TUBE STYLE: | 5.150″ Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE: | 71° |
| SEAT CLAMP: | Integrated |
| SEAT POST SIZE: | 1″ (25.4mm) |
| BB HEIGHT: | 11.8″ |
| BB STYLE: | Mid |
| STANDOVER HEIGHT: | 9.2″ |
| BRAKE MOUNTS: | 5 Degree Angled 990 Mounts (Thread-On 990 kit sold separately) |
| DROPOUTS: | 14mm Slot, 4Q-Baked |
| GYRO TABS: | None |
| WEIGHT: | 20.75″: 4.65lbs/2.11kg 21″: 4.675lbs/2.12kg 21.25″: 4.678lbs/2.12kg 21.5″: 5.1lbs/2.31kg |
| TUBESET: | Butted ThermalX |
