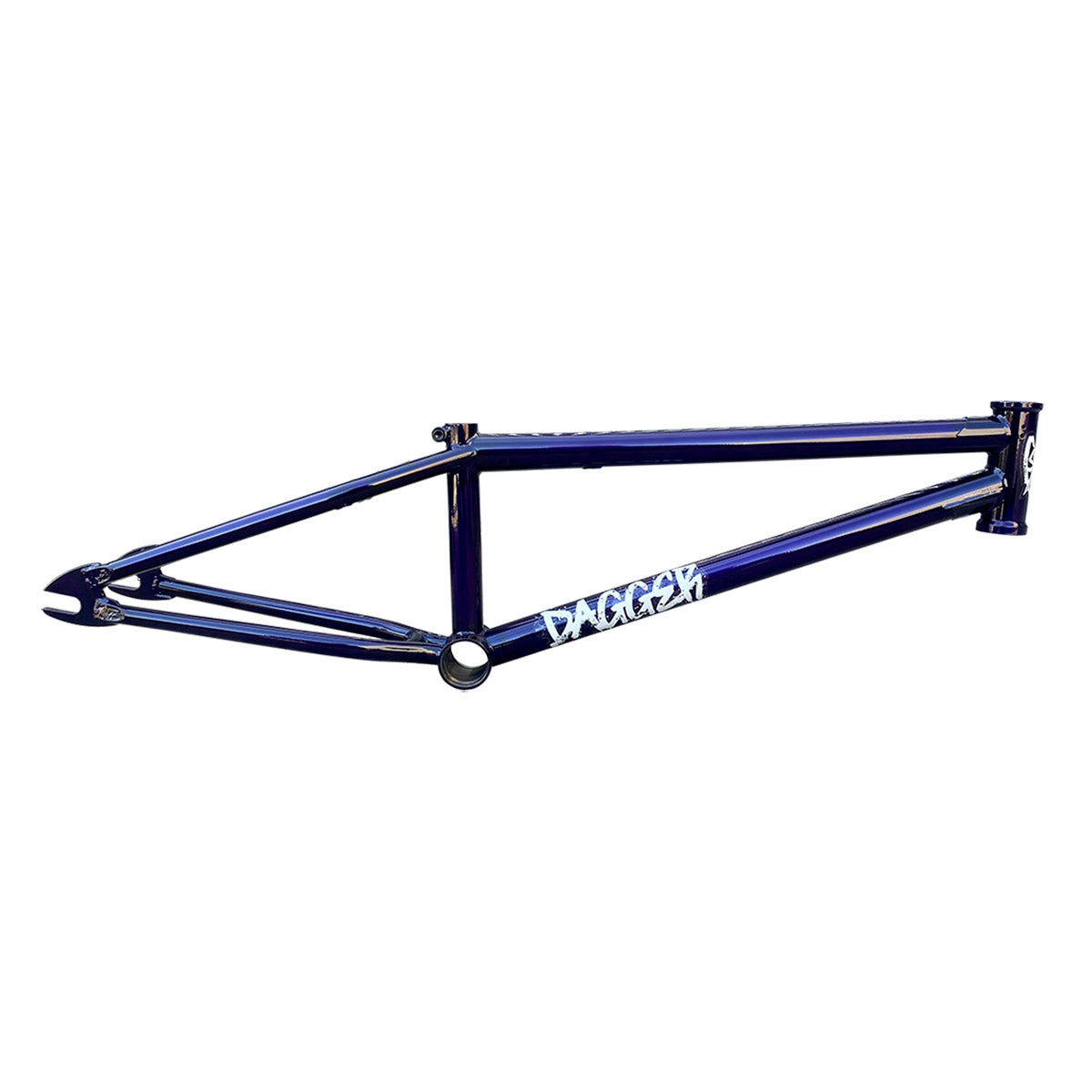

S&M DAGGER FRAME (SOUR GRAPE)
S&M DAGGER FRAME (SOUR GRAPE)
Regular price
$409.95
Regular price
Sale price
$409.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Our ultra-responsive park frame. With a low standover and BB, 75.3° head angle and short rear end with chain tensioners, the Dagger is compact and nimble.
| TOP TUBE LENGTHS: | 20.5″, 20.75″, 21″ |
| REAR END LENGTH: | 12.8″ – 13.6″ |
| HEAD TUBE ANGLE: | 75.3° |
| HEAD TUBE STYLE: | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE: | 71° |
| SEAT CLAMP: | Integrated |
| SEAT POST SIZE: | 1″ (25.4mm) |
| BB HEIGHT: | 11.6″ |
| BB STYLE: | Mid |
| STANDOVER HEIGHT: | 7.25″ |
| BRAKE MOUNTS: | Thread-On 990 (Mounts sold separately) |
| DROPOUTS: | 14mm Slot, 4Q-Baked, Integrated Chain Tensioners |
| GYRO TABS: | Removable |
| WEIGHT: | 20.5â€: 4.90lbs / 2.22kgs 20.75â€: 4.95lbs / 2.24kgs 21â€: 5.00lbs / 2.26kgs |
| TUBESET: | Double-Butted True Temper 4130 CrMo |
