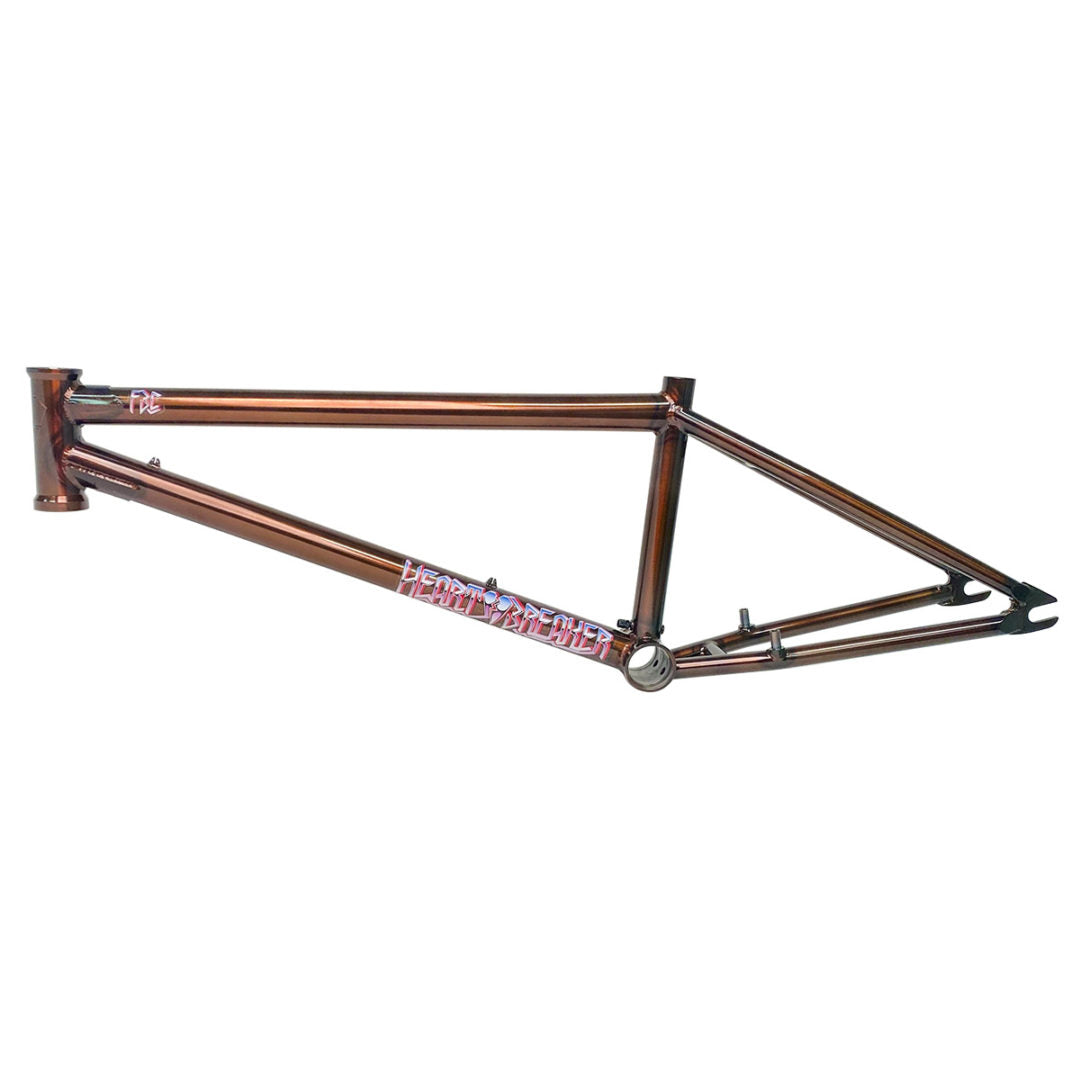

FITBIKECO HEARTBREAKER FRAME

The Heartbreaker is Chris Harti’s long, low and laid back shred sled designed for going fast and big at the trails with stability. Cable routing thru the seat tube keeps your straddle hanger from slapping your down tube and works really well on this frame since the chain stays are pretty long. The 14mm drop out slot instead of the traditional 3/8â€ trail frame slot allow you a larger variety of affordable rear hubs to choose from. Single bend chain stays, straight stay bridges and lack of welded on seat clamp are all classic touches on this modern frame designed for timeless BMX riding.

“If you like travelling at high speeds and pulling back as hard as you possibly can while being in control, then the Hartbreaker might be the frame for you. It features a mellow 74.5° head tube, a low 11.35â€ BB height, and a nice 9.15â€ standover to match. Top it all off with a longer back-end you can trust and you got yourself a machine that’s ready for roasting, Oh! I had to make sure she was built like an ox too.â€ – Chris Harti

• Butted Supertherm Top Tube
• Straight Gauge Supertherm Down Tube
• Double Gussets
• Slightly Tapered Seat Stays
• Slightly tapered Single Bend Chain Stays
• 2.4″ Tire Clearance (even when slammed)
• Double Butted Seat Tube
• Longer Drop Out Slots
• Welded on Chain Stay Brake Mounts
• Thru the Seat Tube Cable Routing
• Double Down Tube Cable Guides
• Engraved Heartbreaker Logo Head Tube
• American Made

Â

IDEAL GEARINGS >
11T
30/11: 13.875 W/Out Half Link
30/11: 14.125 W/ Half Link
30/11: 14.375 W/Out Half Link
28/11: 13.875 W/ Half Link
28/11: 14.125 W/Out Half Link
28/11: 14.375 W/ Half Link
10T
30/10: 14.00 W/Out Half Link
30/10: 14.25 W/ Half Link
28/10: 14.00 W/ Half Link
28/10: 14.25 W/Out Half Link
27/10: 13.875 W/Out Half Link
27/10: 14.125 W/ Half Link
27/10: 14.375 W/Out Half Link
9T
28/9: 13.875 W/Out Half Link
28/9: 14.125 W/ Half Link
28/9: 14.375 W/Out Half Link
27/9: 14.00 W/Out Half Link
27/9: 14.25 W/ Half Link
25/9: 14.00 W/ Half Link
25/9: 14.25 W/Out Half Link
8T
23/8: 13.875 W/ Half Link
23/8: 14.125 W/Out Half Link
23/8: 14.375 W/ Half Link
25/8: 13.875 W/Out Half Link
25/8: 14.125 W/ Half Link
25/8: 14.375 W/Out Half Link
26/8: 14.00 W/ Half Link
26/8: 14.25 W/ Half Link

SPECS >

• Sizes
• Rear end length
• Head tube angle
• Seat tube angle
• BB height
• Standover
• Head tube
• Bottom Bracket
• Dropouts
• Brake mounts
• Seat clamp
• Seat post size
• Weight

• 21″, 21.125″, 21.25″, 21.5″
• 13.8″-14.5″
• 74.5°
• 71°
• 11.35″
• 9.15″
• Integrated
• Mid
• 14mm, 3/16″ Thick, 4Q Baked
• Chainstay Welded 990s
• Traditional Slot
• 25.4mm
• 21â€ – 5.18 lb (2.35 kg)
  21.125â€ – 5.235 lb (2.37 kg)
  21.25â€ – 5.27 lb (2.39 kg)
  21.5â€ – 5.3 lb (2.4 kg
