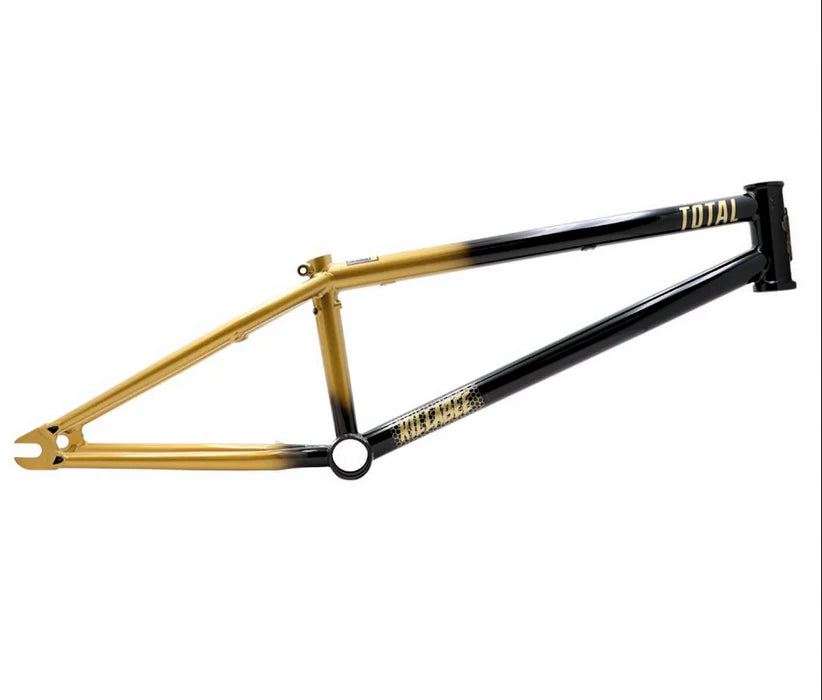

TOTAL BMX KILLABEE K4 FRAME

Big freshen up for the Killabee K4! We have listened to you and brought back the integrated chain tensioners as well as adding the DBS brake system. Featuring a progressive 75.75º head tube angle this frame is super responsive and something Kyle has really enjoyed during testing. Ovalised chain stays have been added to keep tyre clearance suitable for up to 2.4â€ tires and for extra dent resistance. This frame is ready to take your riding to the next level.

Specification:

• Full Multi Butted Japanese Sanko 4130 Chromoly tubing
• Head Tube Angle: 75.75º
• Standover Height: 7.7â€ (centre of BB to centre of TT)
• Rear End Length: 12.65â€ - 12.95â€
• Top Tube: 32mm Multi butted internal gusseted
• Down tube 34.9mm taper to 32mm internally gusseted
• Tapered chain stays 21mm-17mm (Ovalised for dent resistance and extra tyre clearance)
• Tapered seat stays 19mm-14mm
• Tire clearance- 2.4â€
• BB Height: 11.6â€
• Headtube: Integrated and heat treated, drilled for gyro tabs 120mm length
•

• Dropouts: 6mm thick heat treated with integrated chain adjusters and CNC cutouts
•

• Weight:Â Â (Black ED, 20.4") - 2.1kg / 4lbs 10.1oz
