Odyssey Clutch Freecoaster Hub Parts (v1/v2)

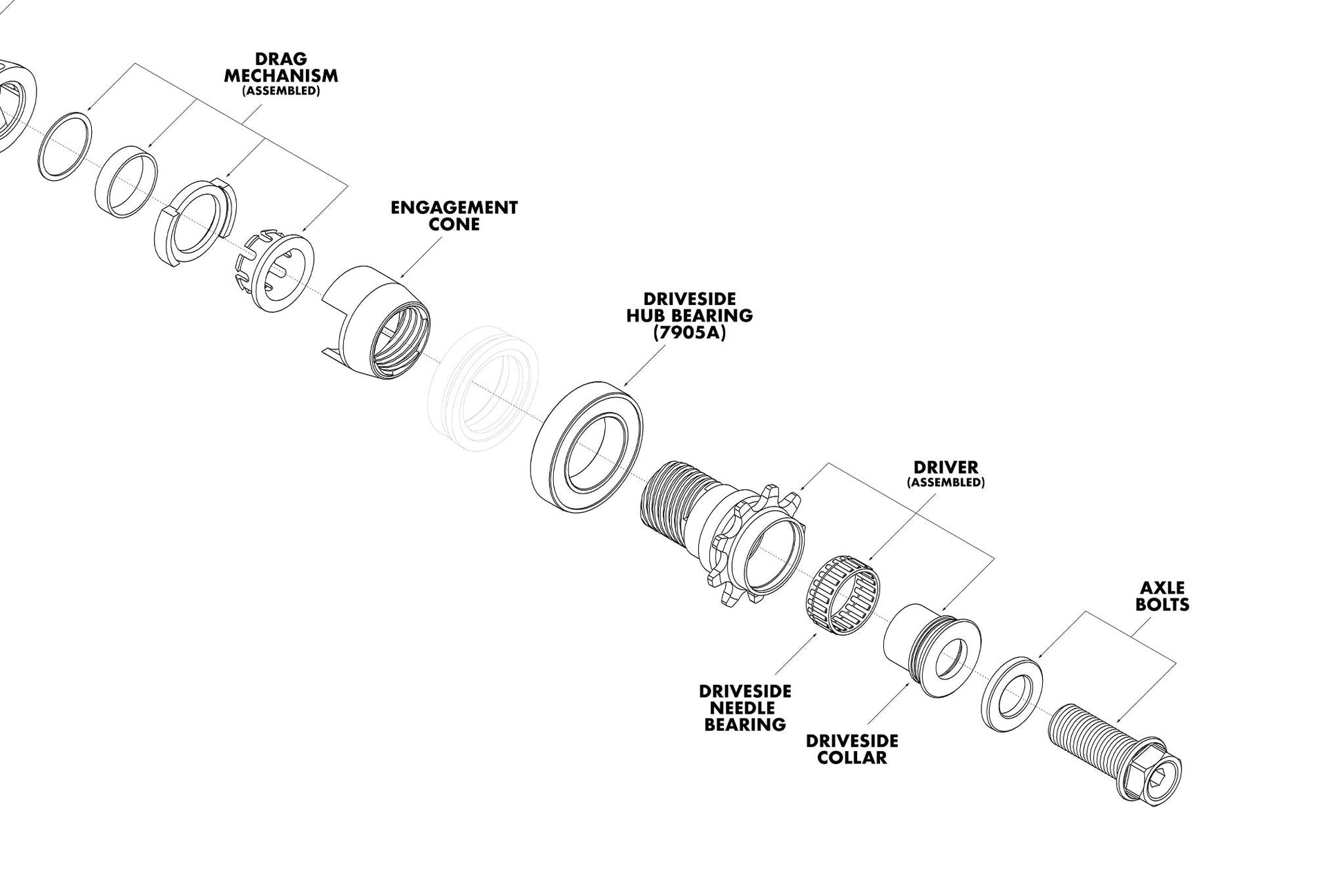

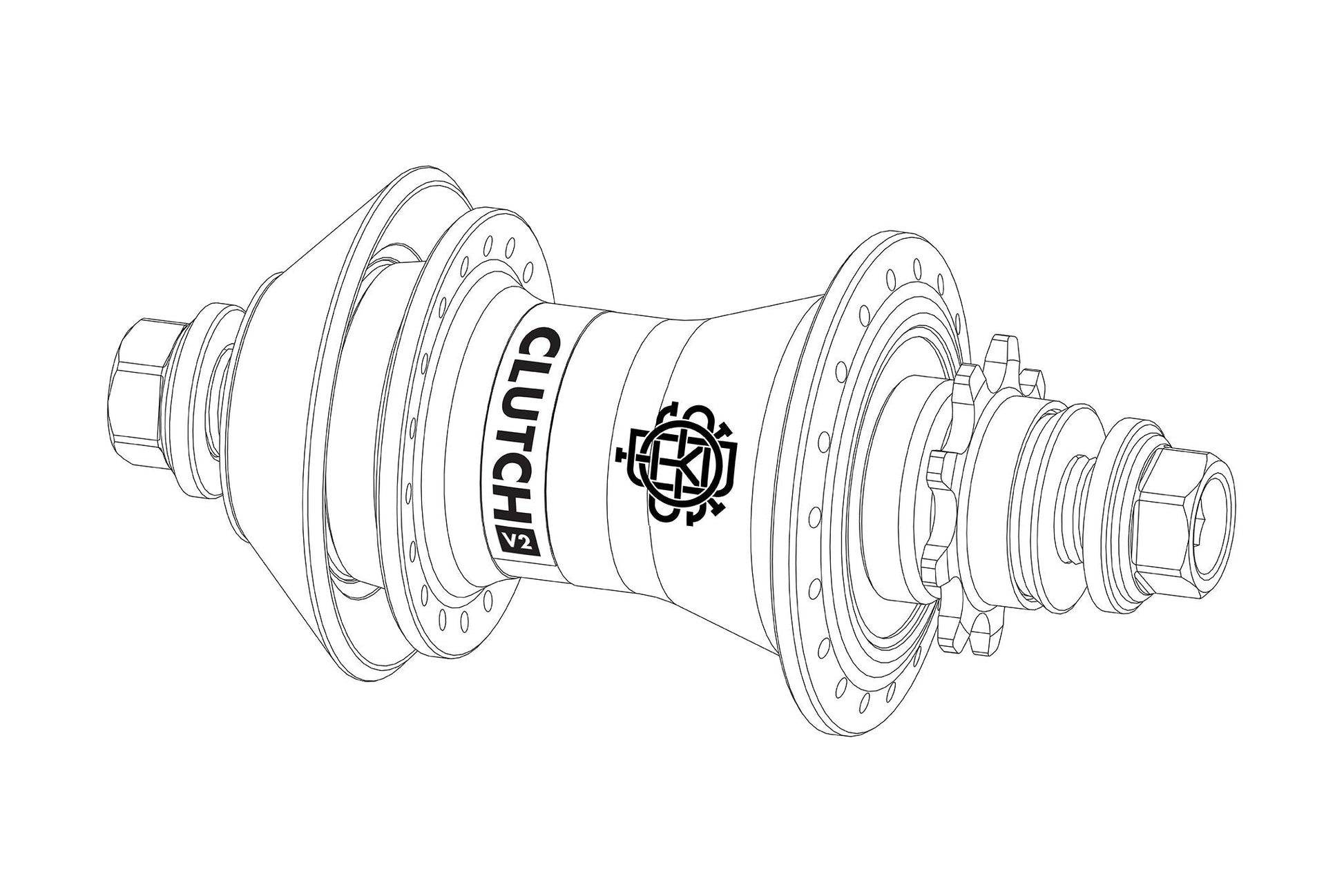

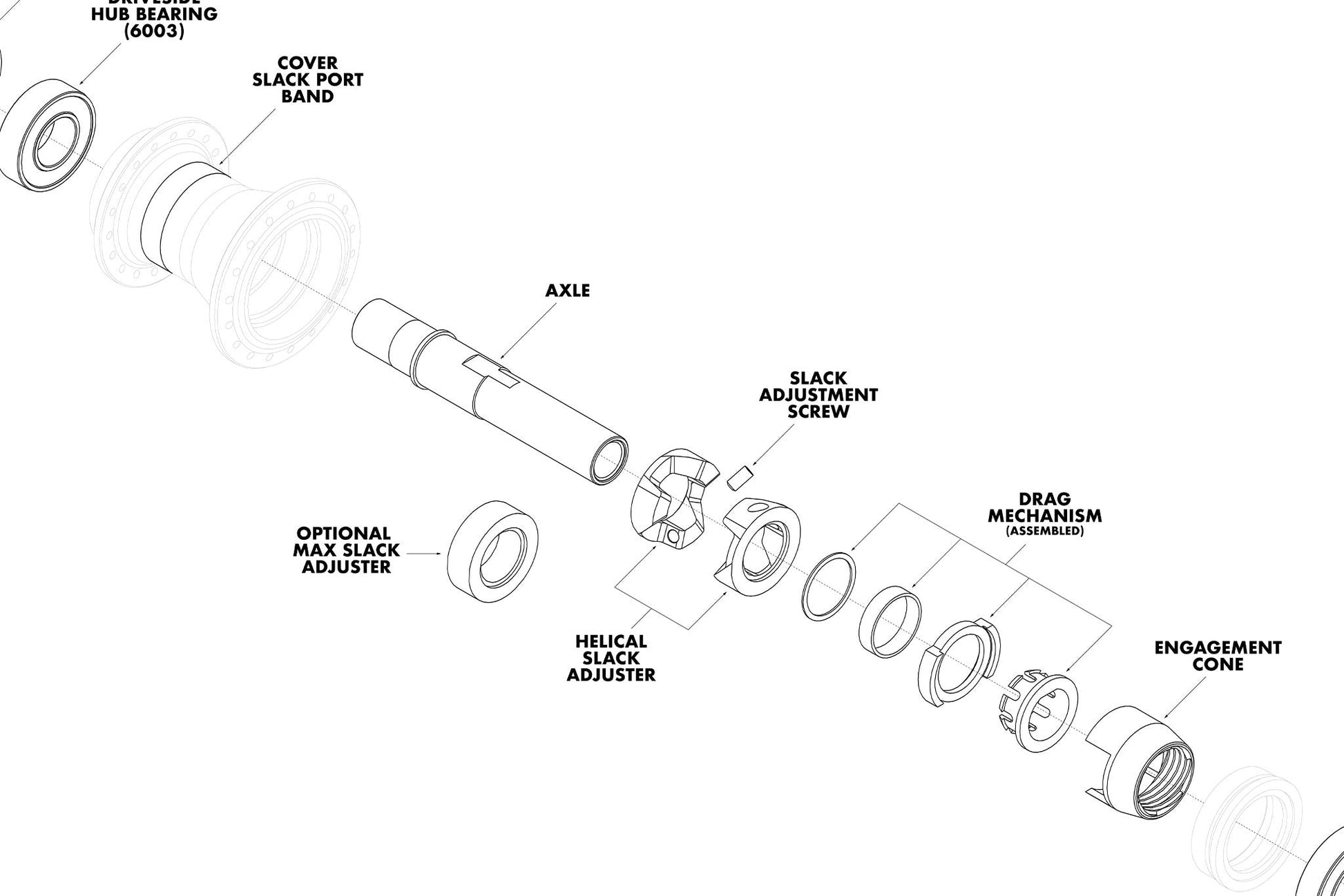

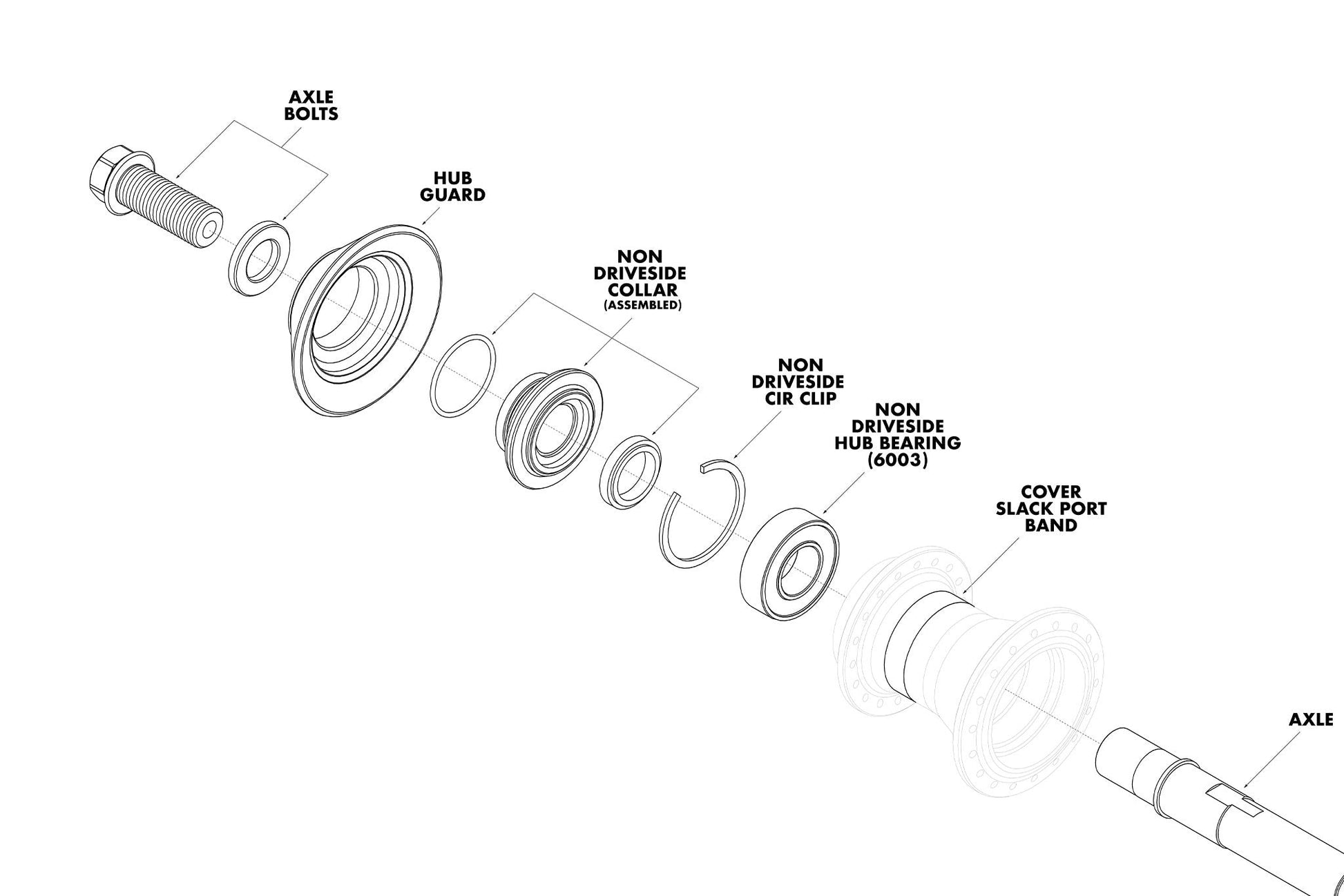

Replacement parts for Odyssey Clutch v1/v2 Freecoaster Hub. Version specific parts are noted. Diagrams above illustrate v2.

Parts List

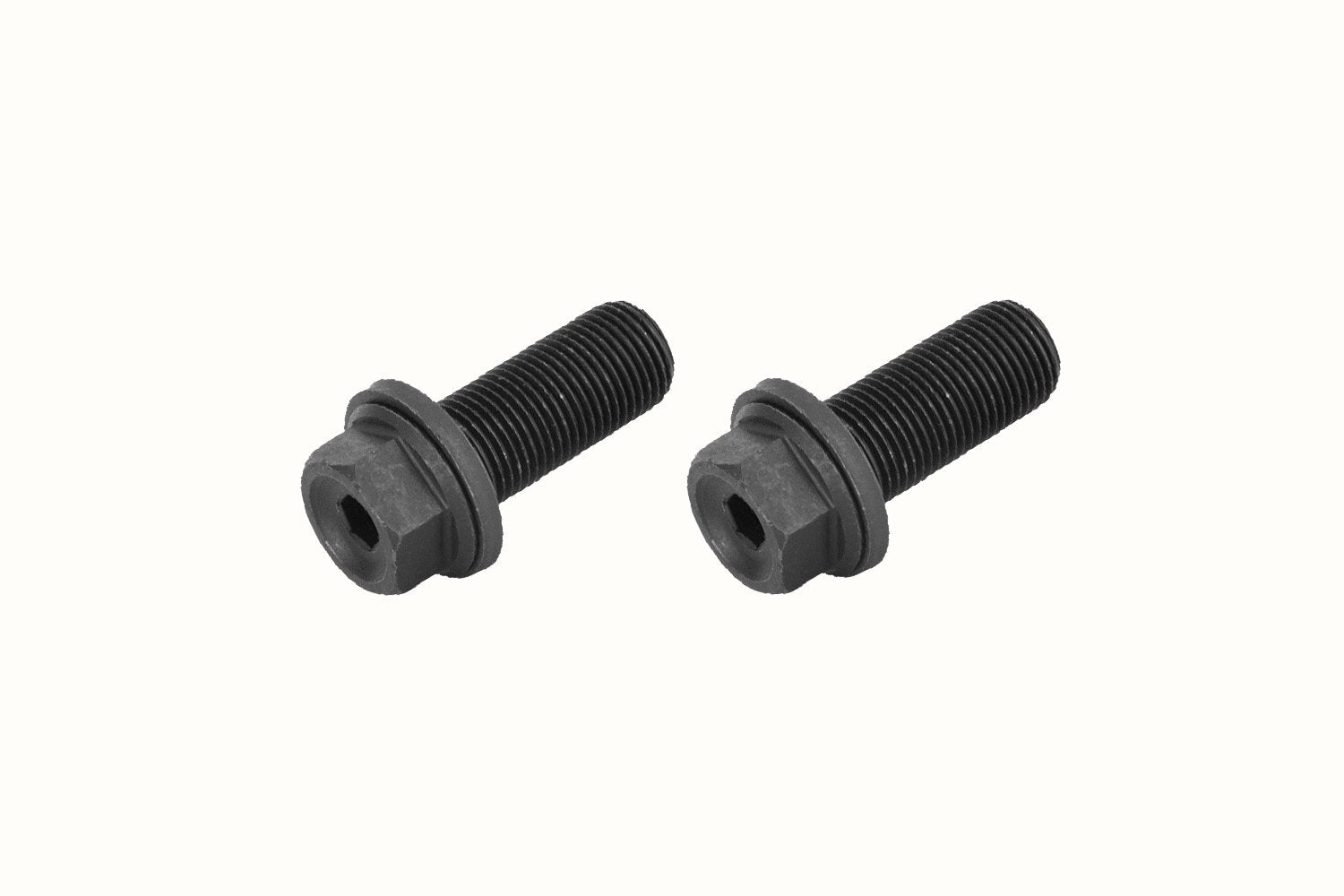

• 14mm Axle Bolts (Pair)
  Pair needed for v2
  1 needed for non-drive side of v1

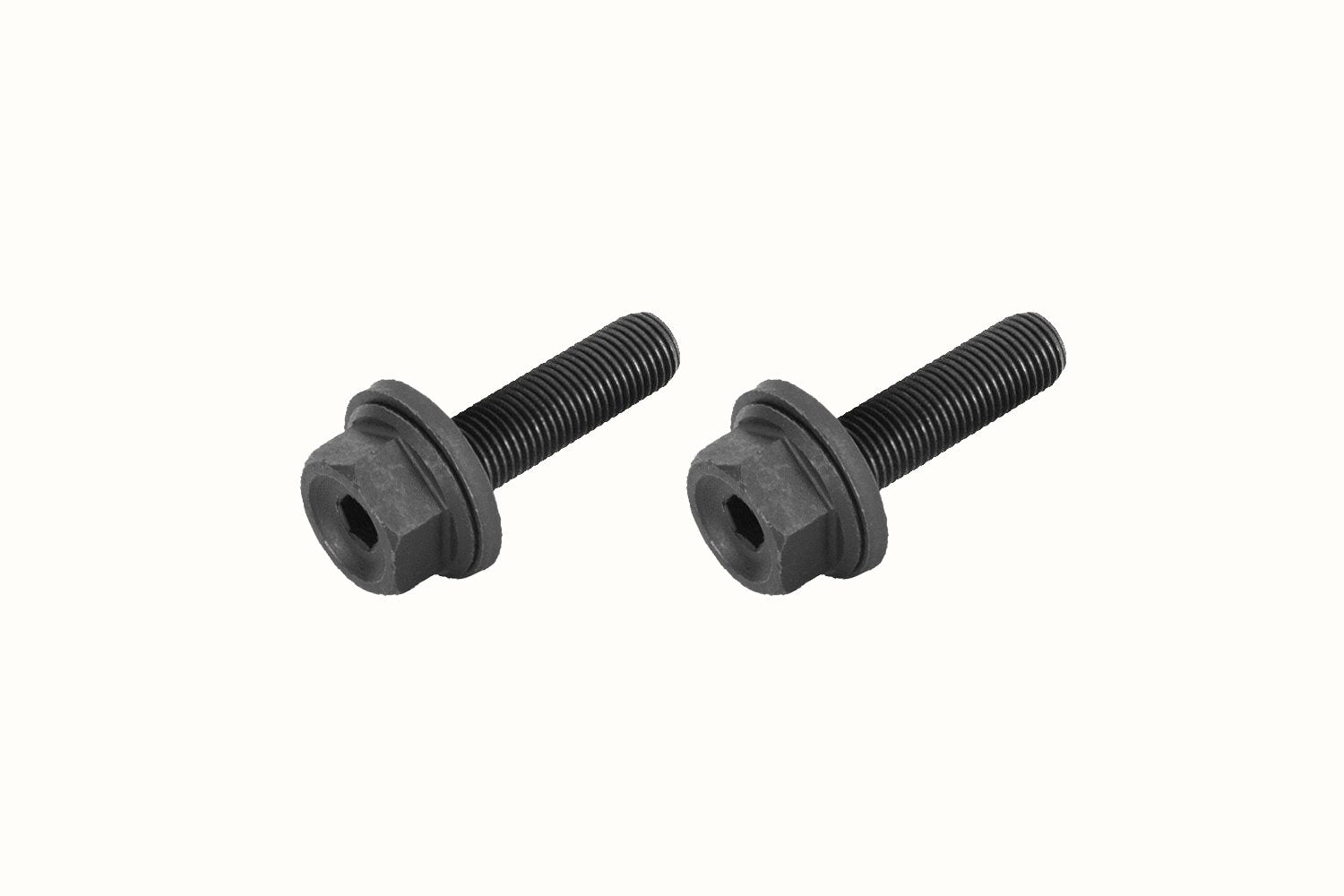

• 3/8" Axle Bolts (Pair)
  1 needed for drive side of v1

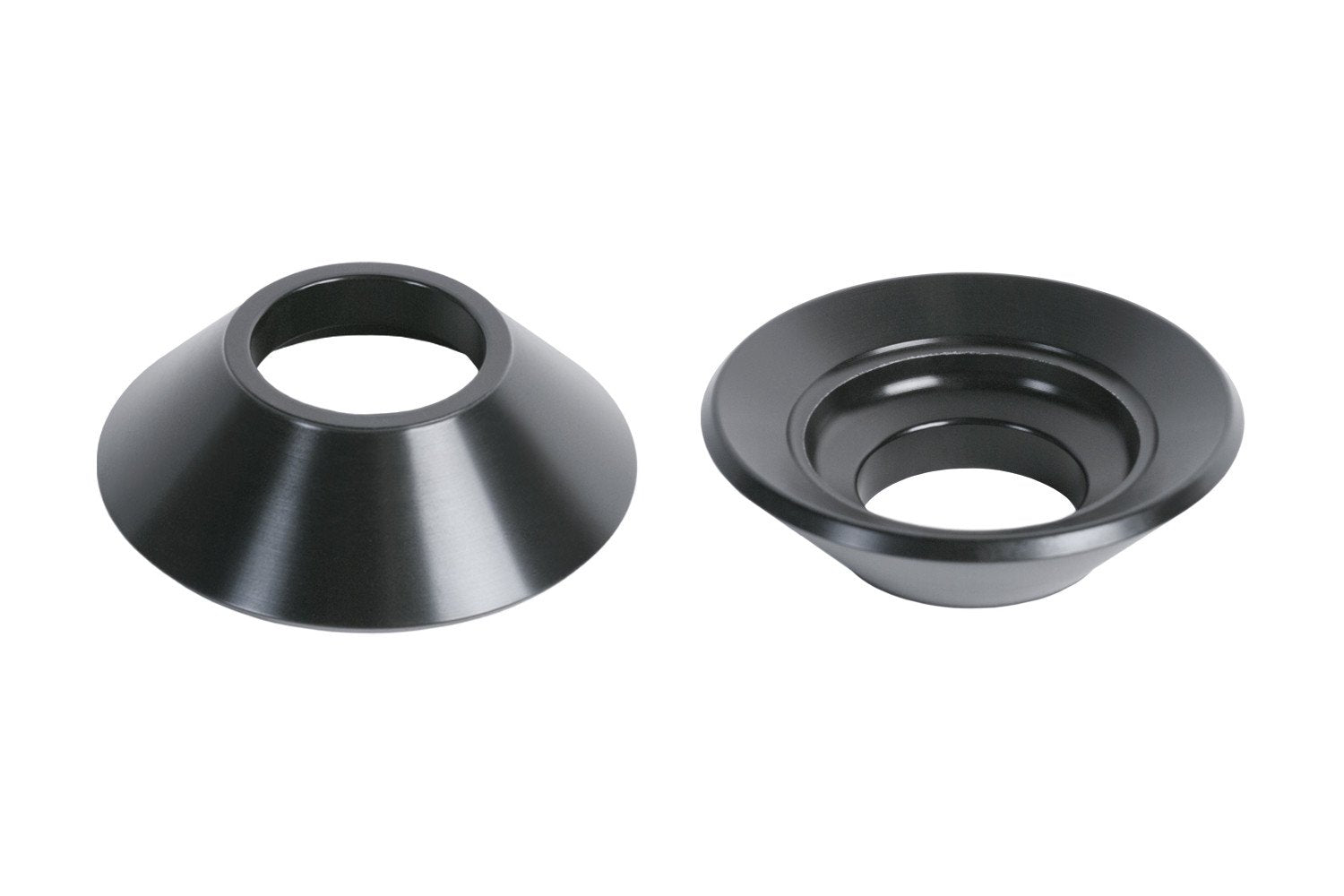

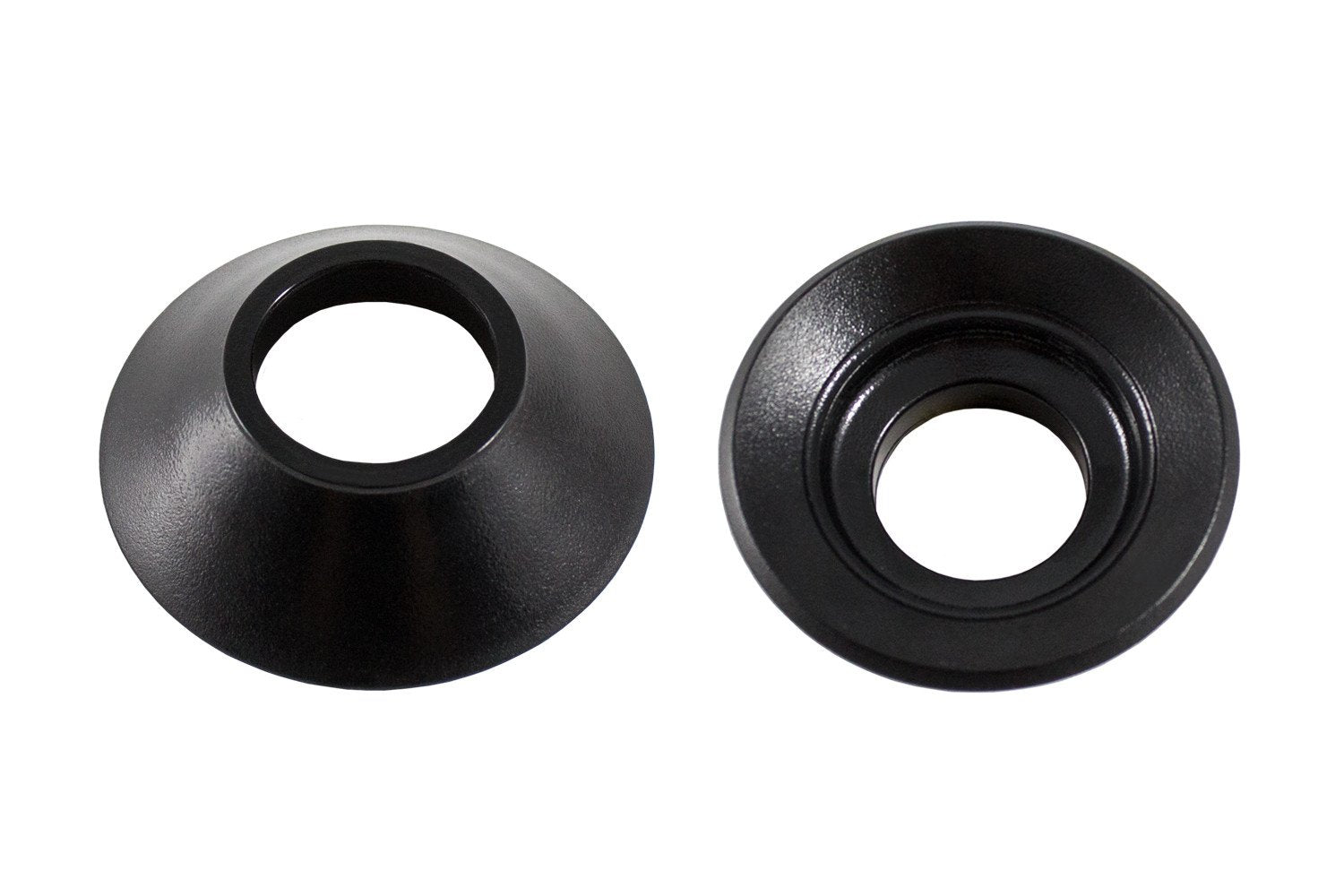

• Hub Guard (Alloy or Plastic, v2 Only)

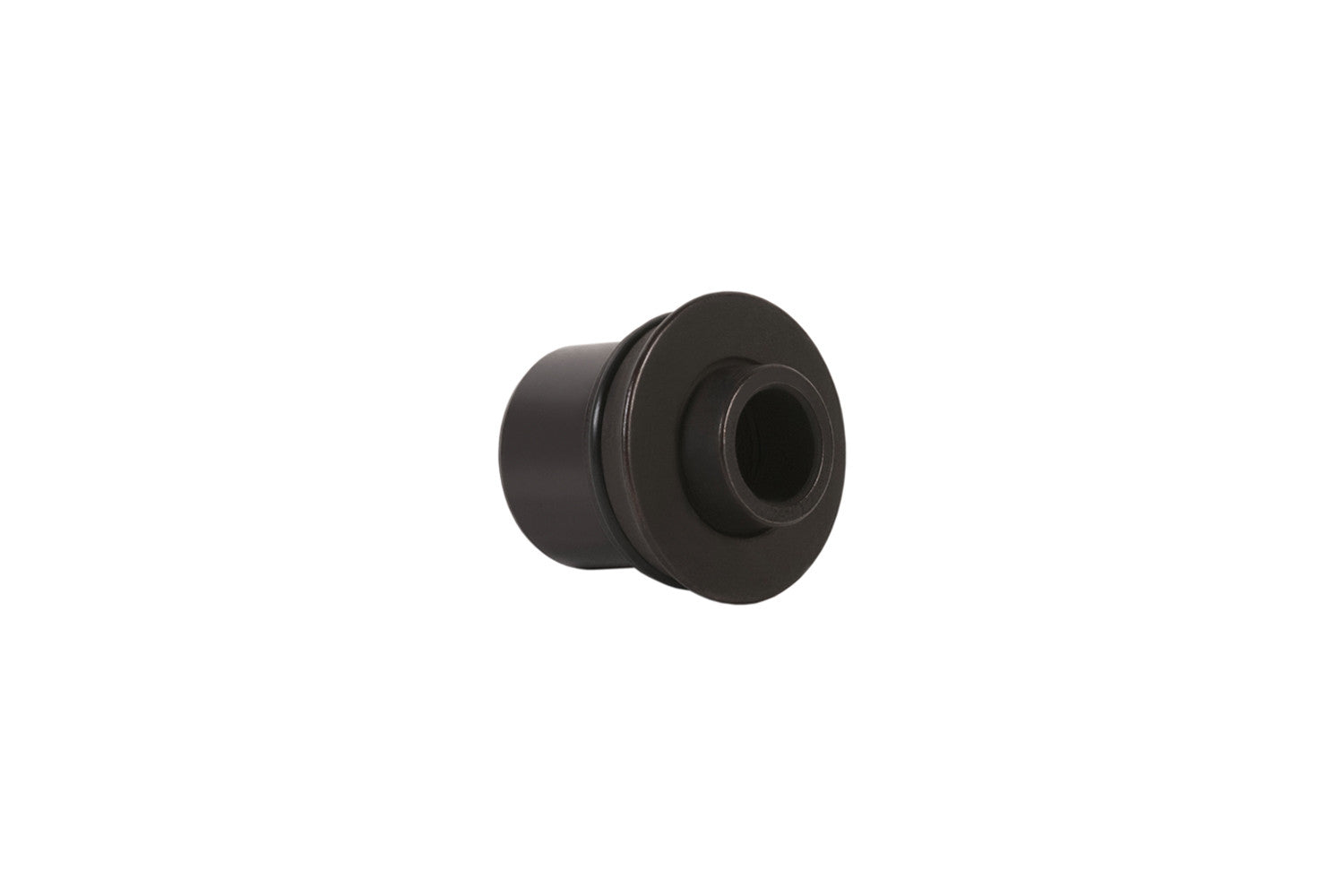

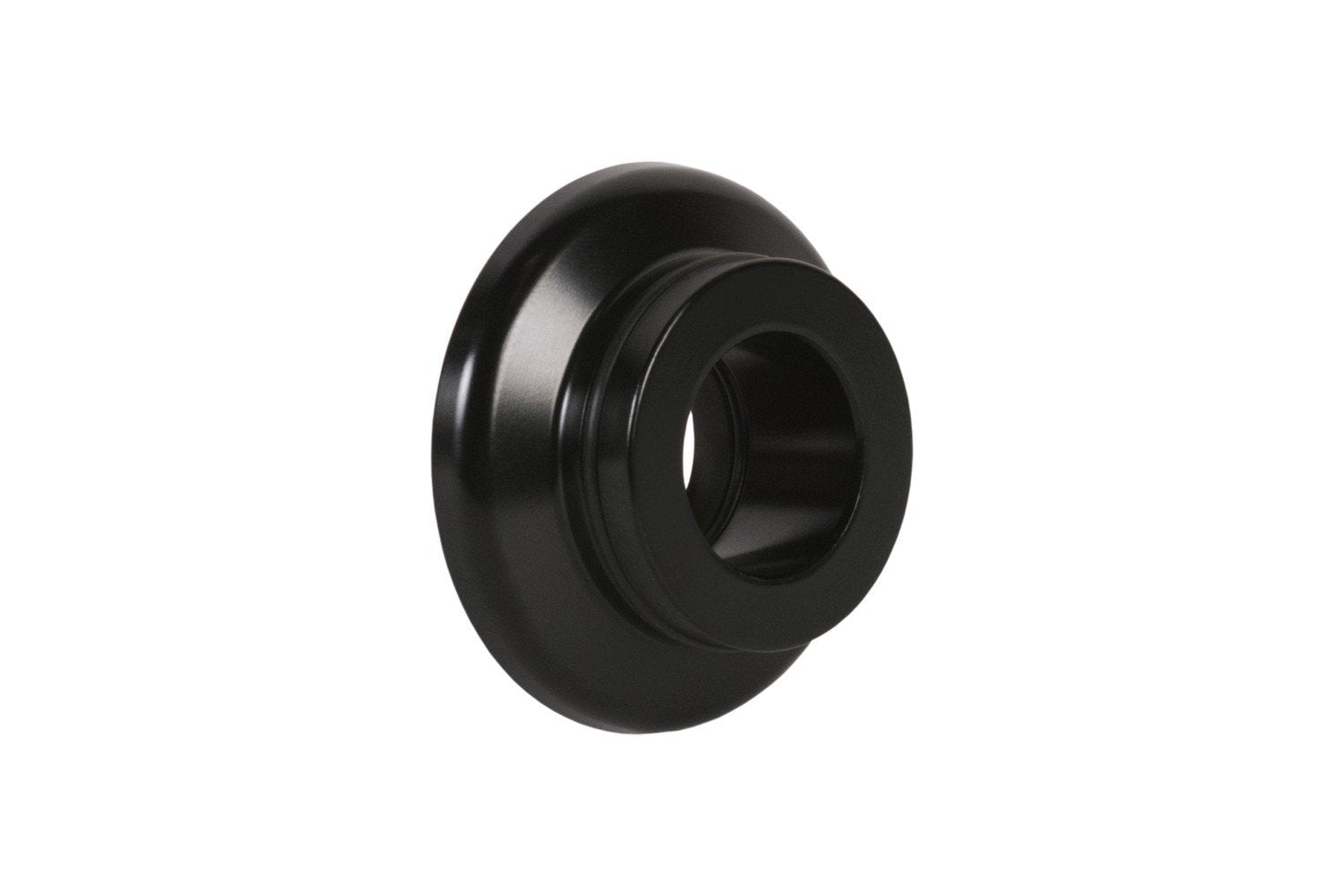

• Non-Drive Side Collar

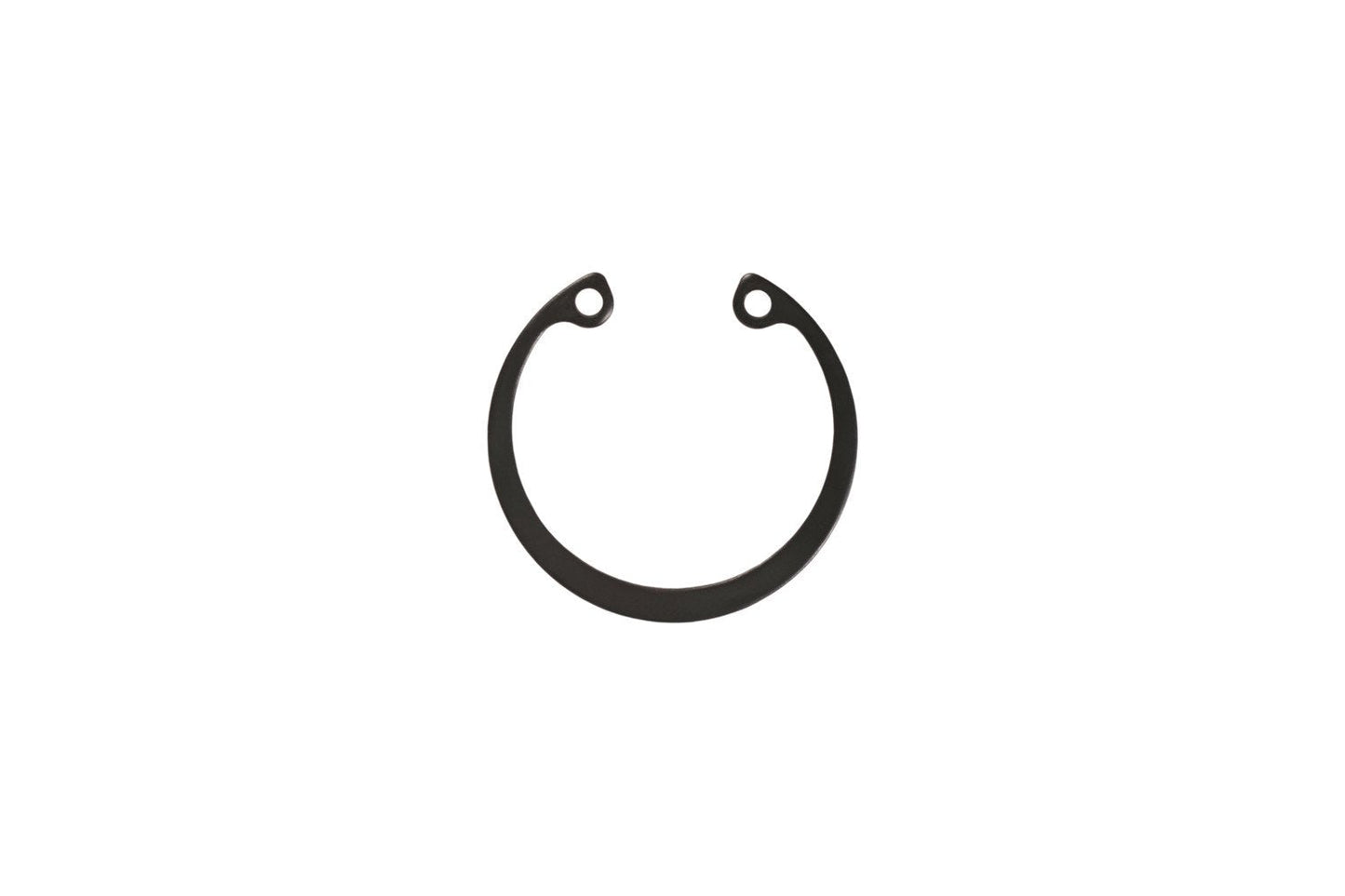

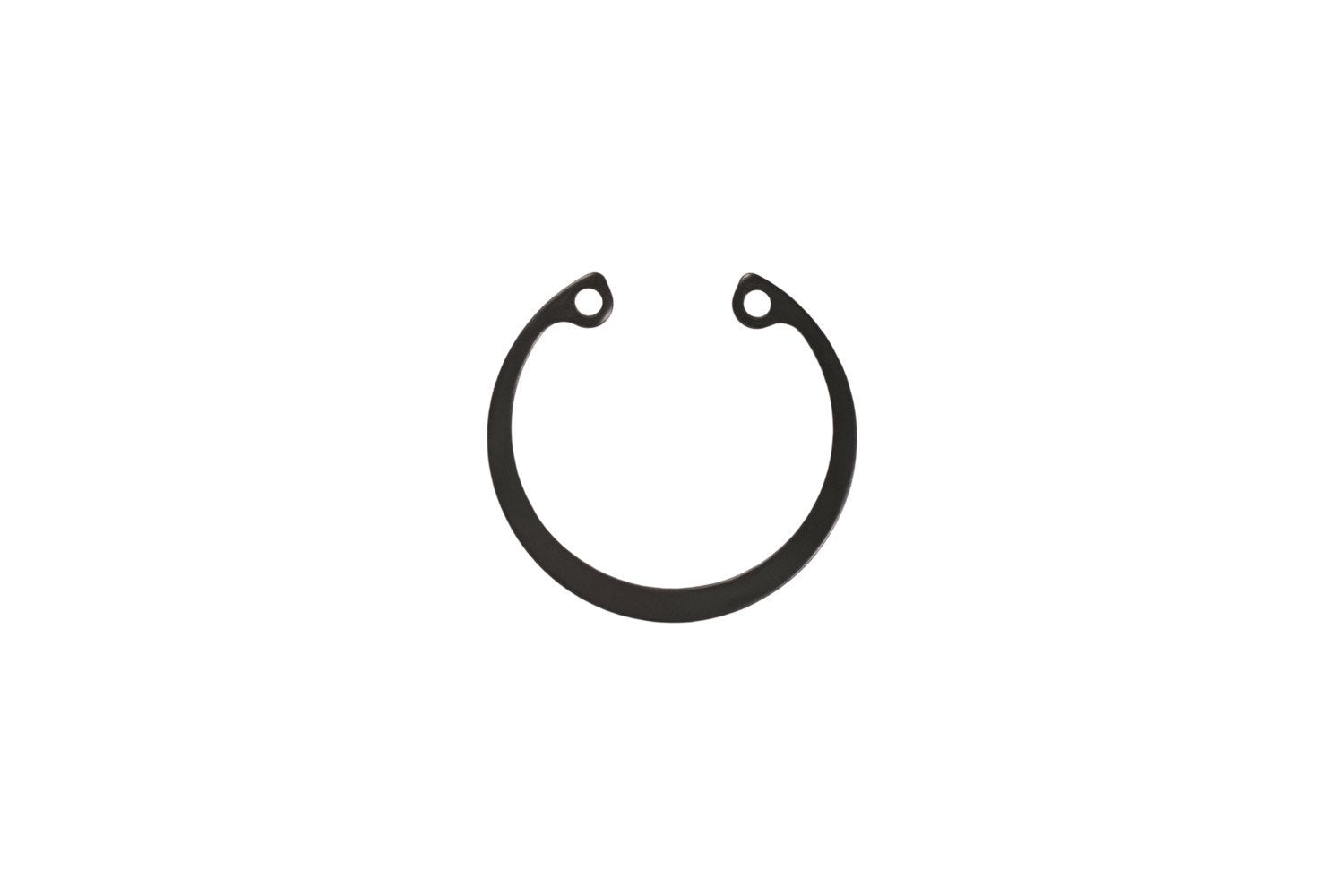

• Non-Drive Side Circlip

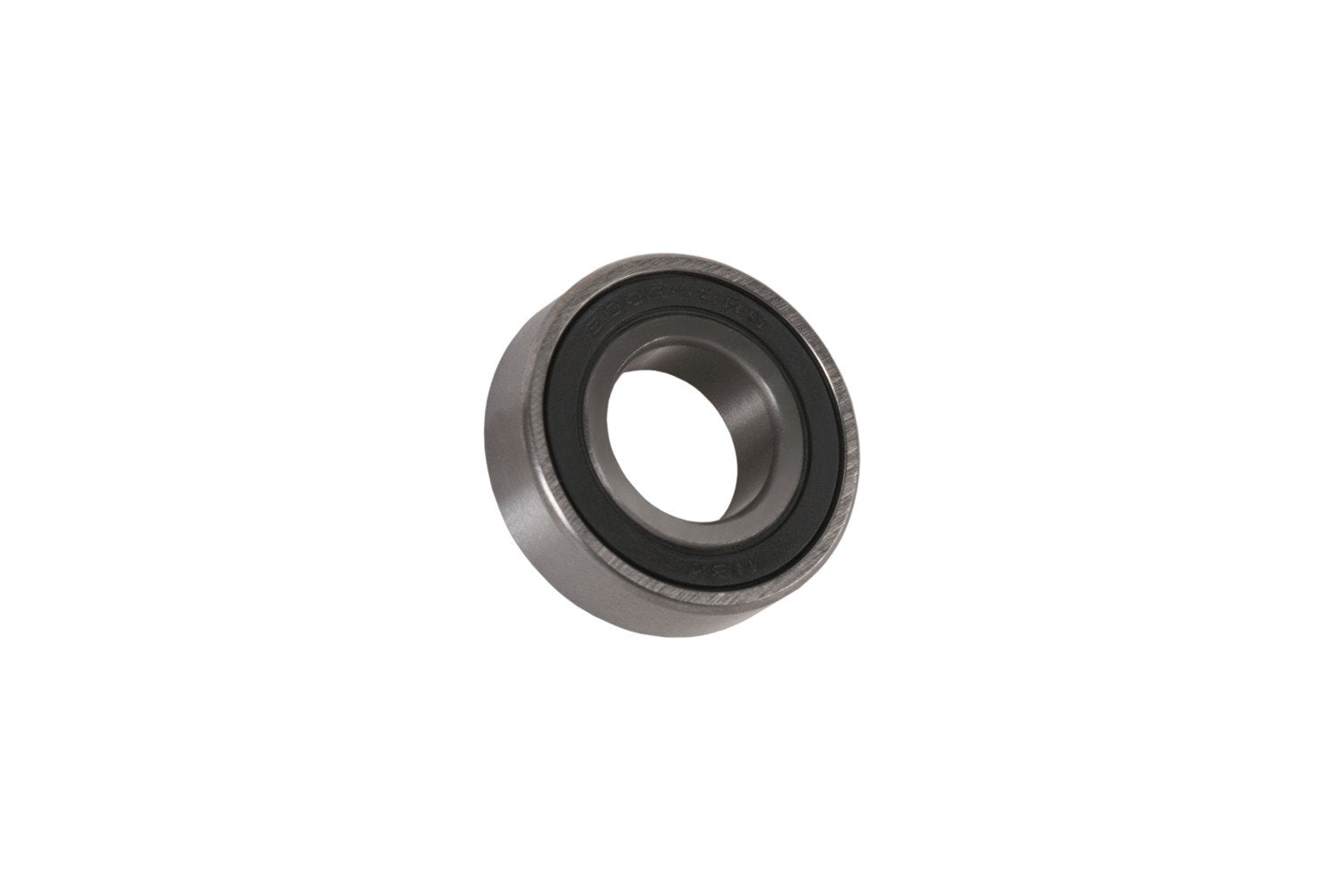

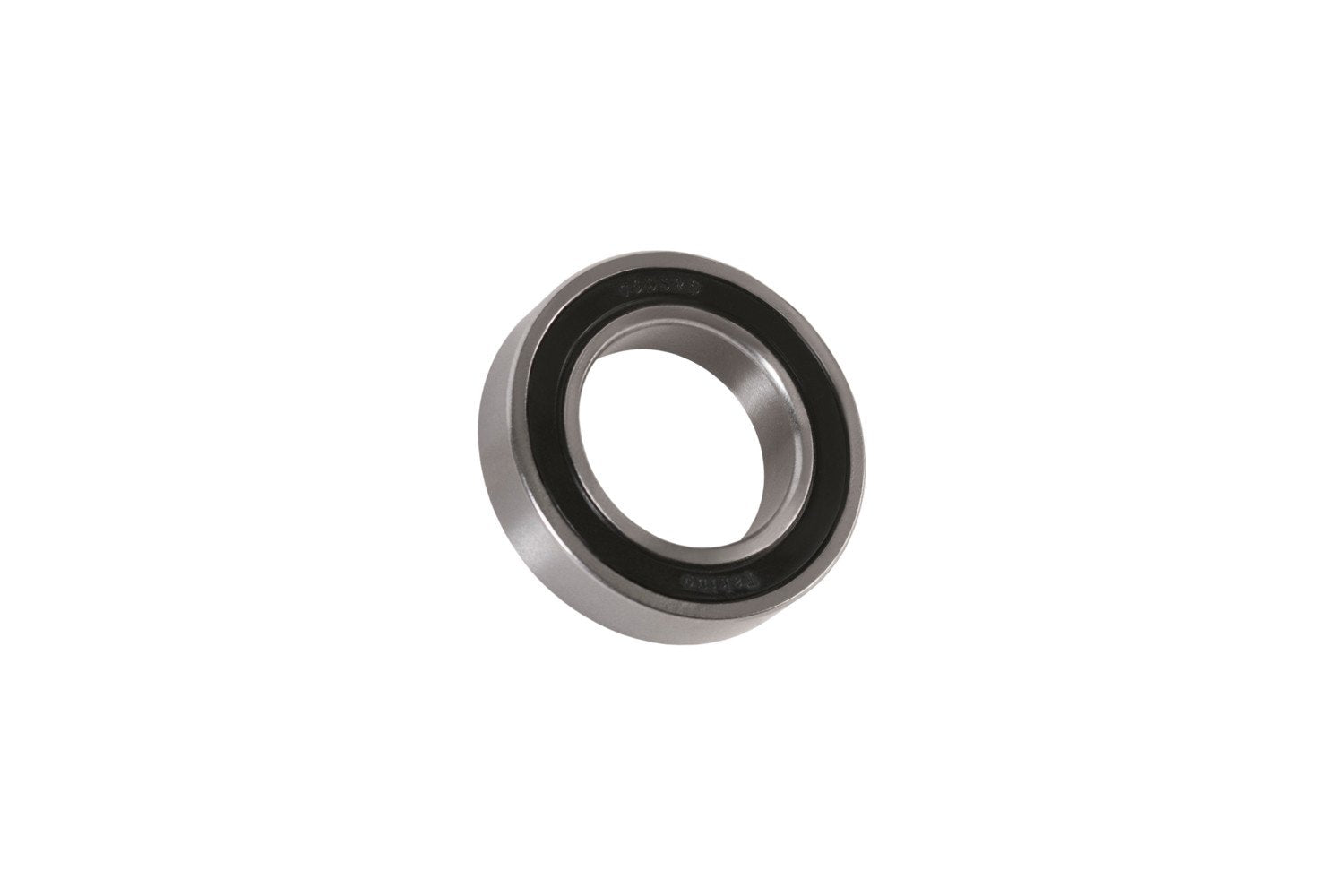

• Non-Drive Side Sealed Bearing (6003)

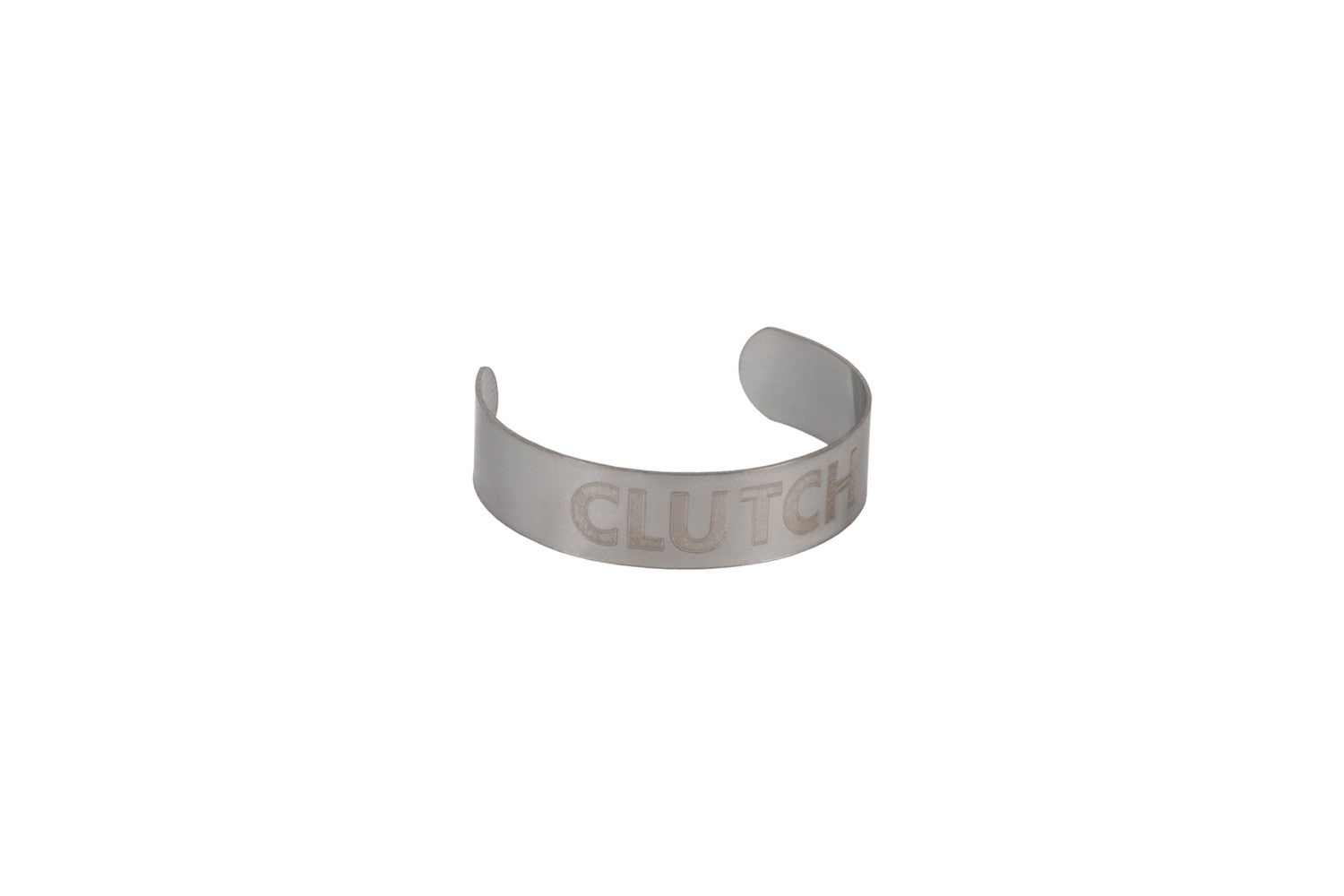

• Cover Slack Port Band v1

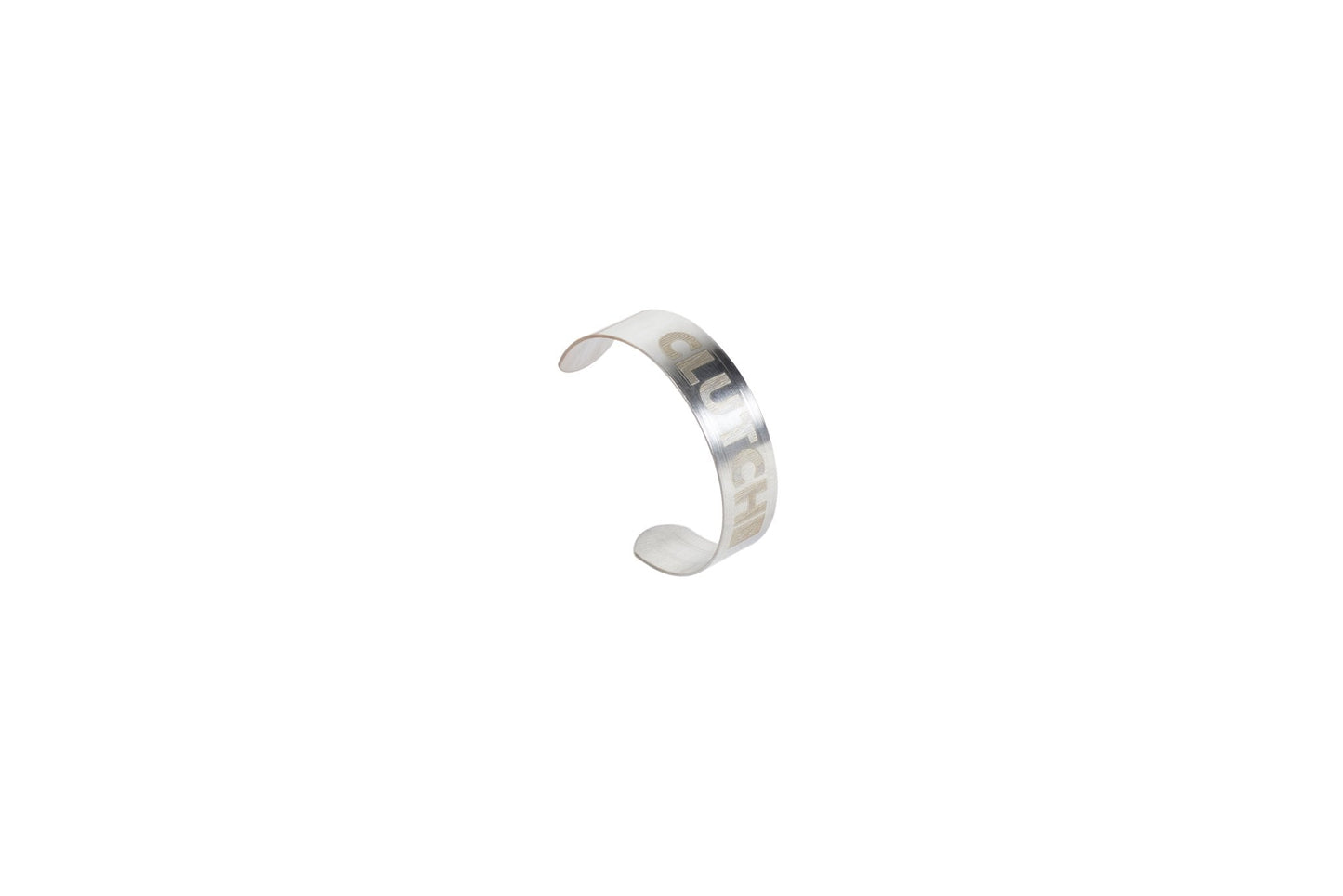

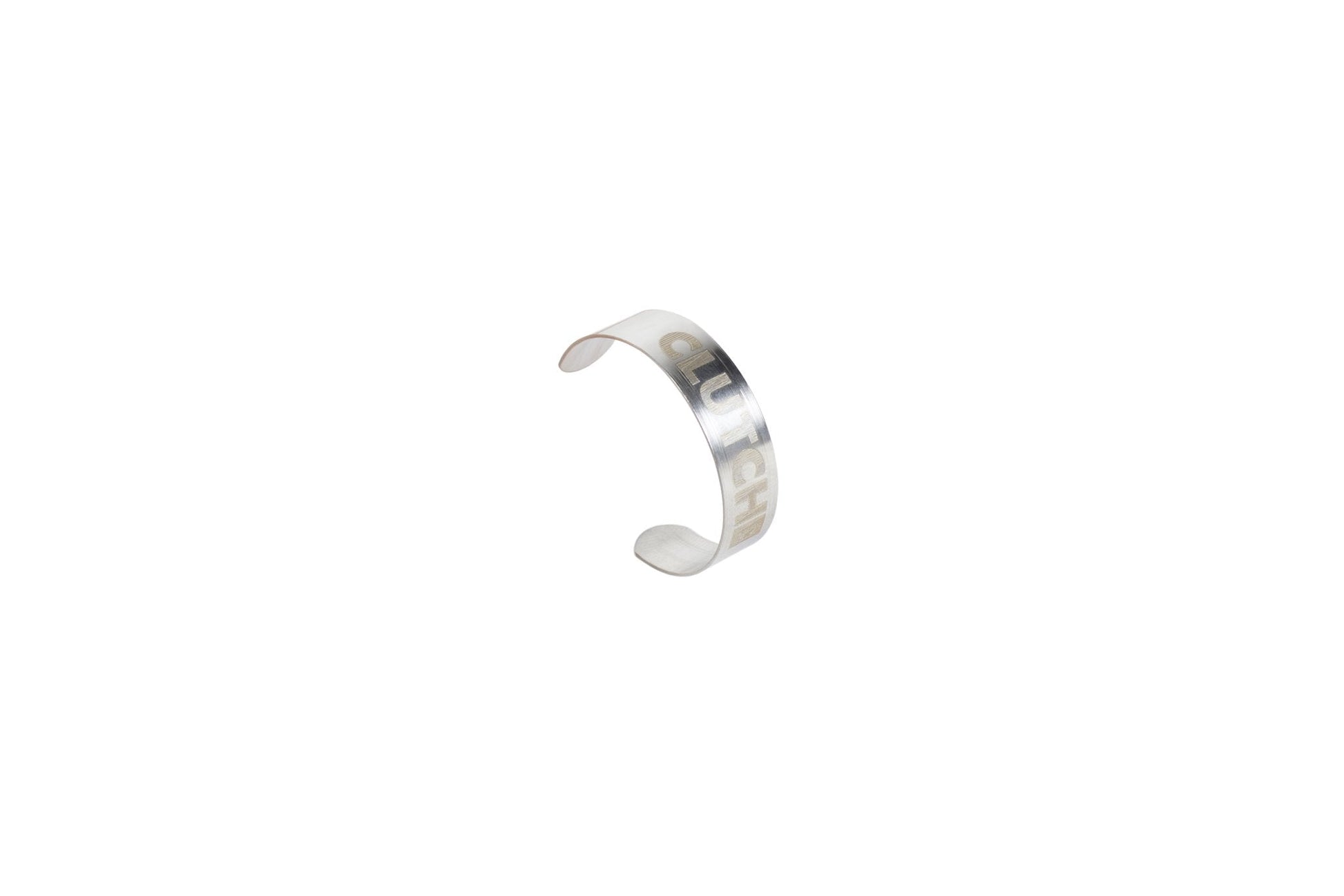

• Cover Slack Port Band v2 (Same as v1, but with v2 etching)

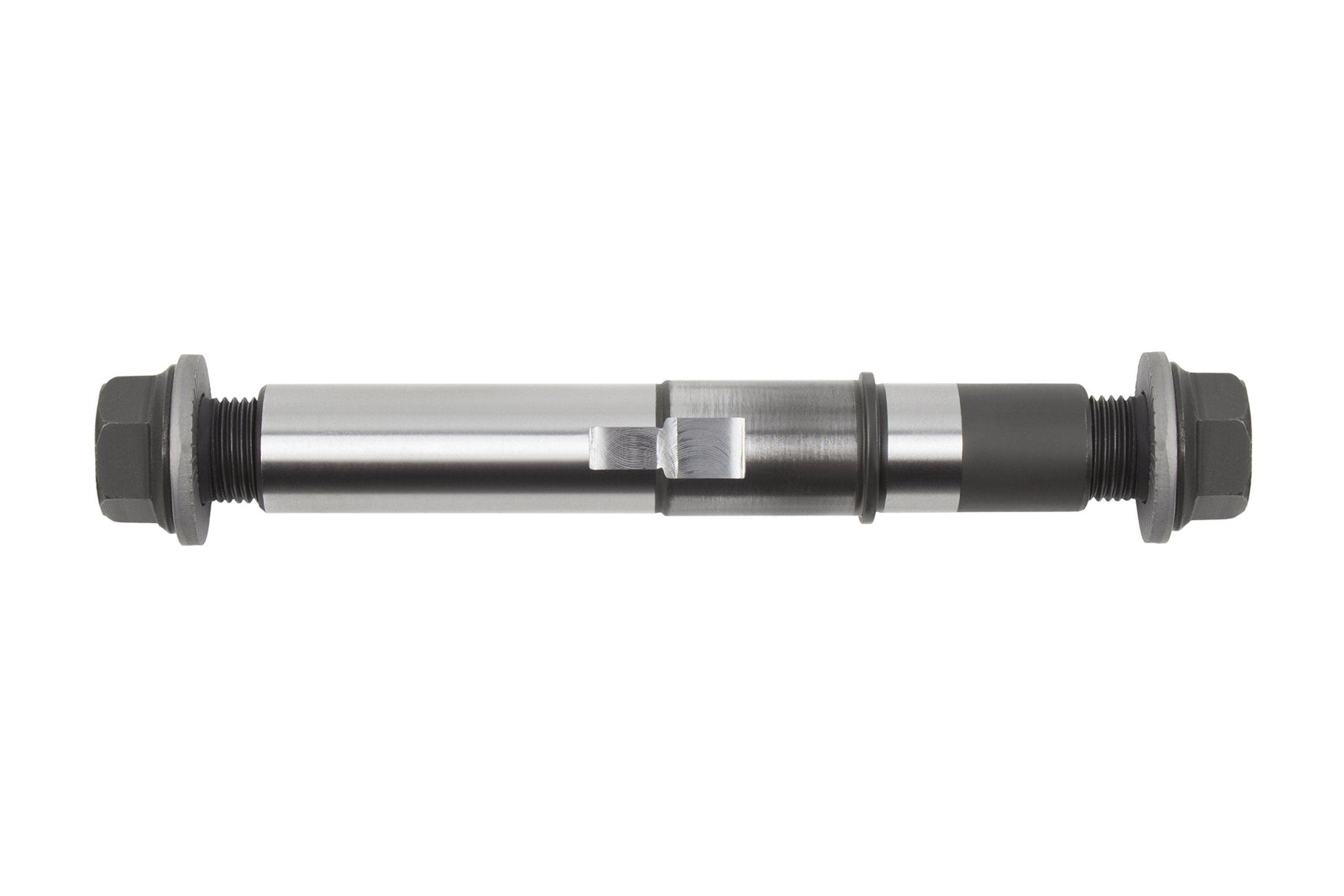

• 14mm Chromoly Axle with Bolts (v2 Only)

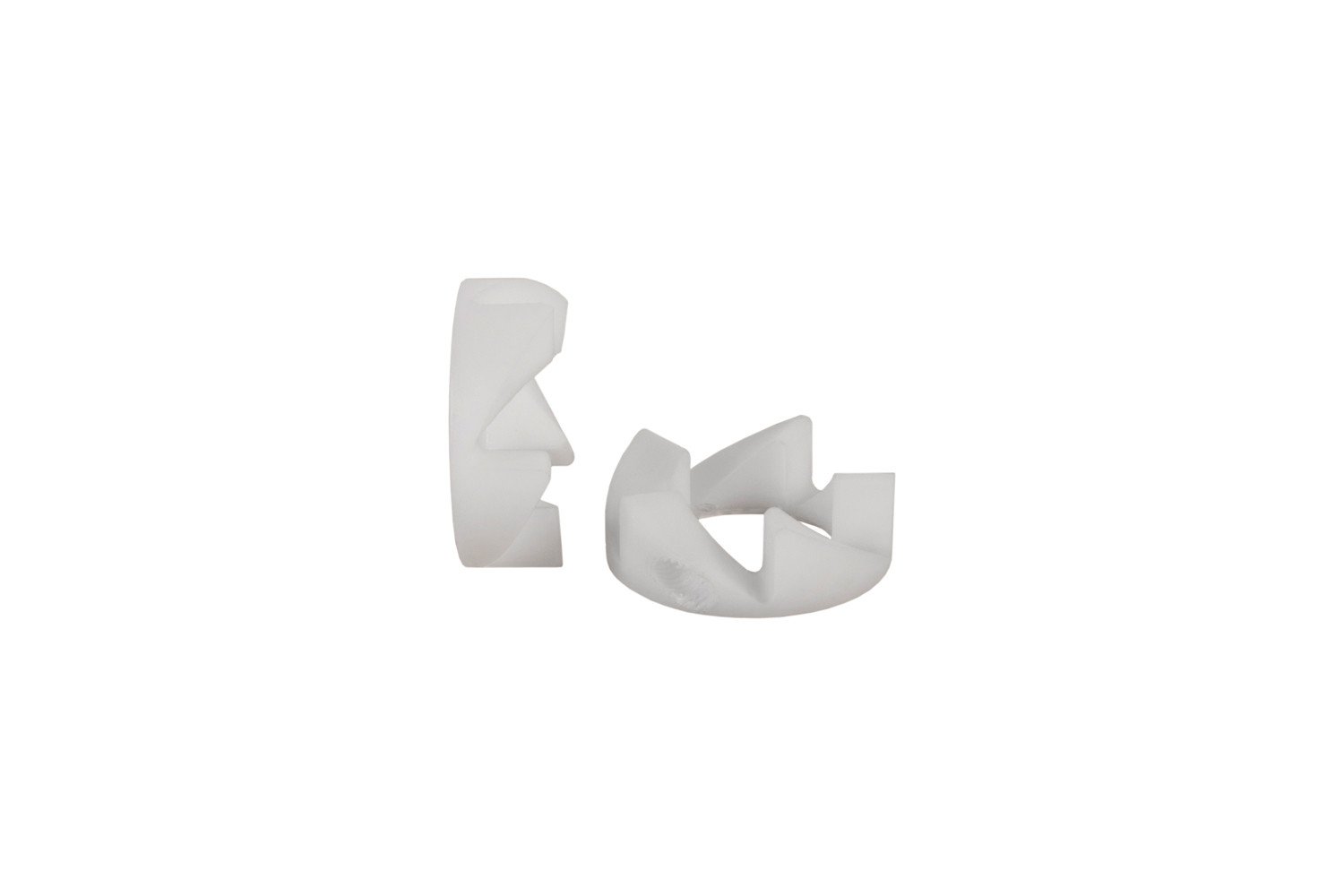

• Max Slack Adjuster (Optional)

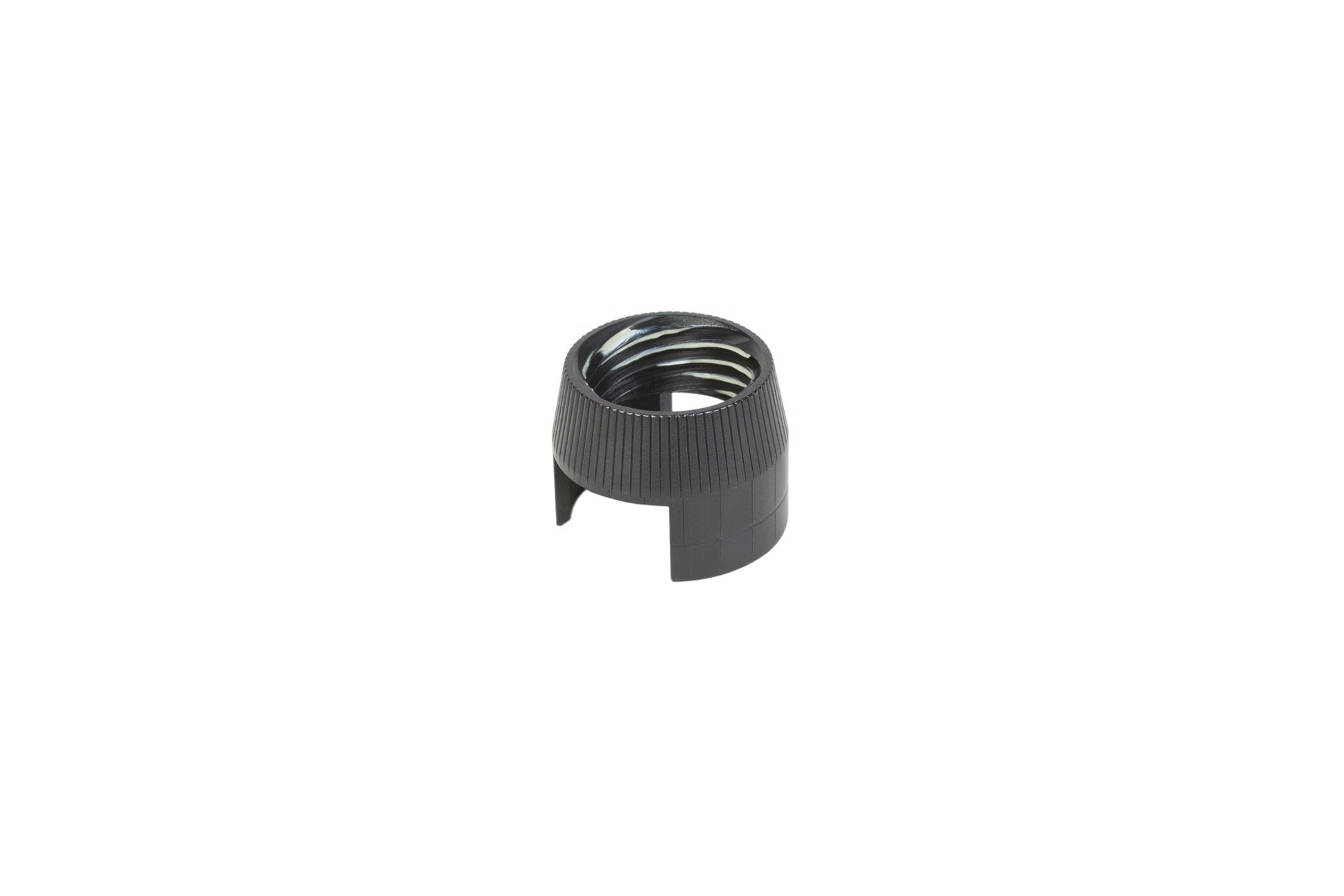

• Helical Slack Adjuster

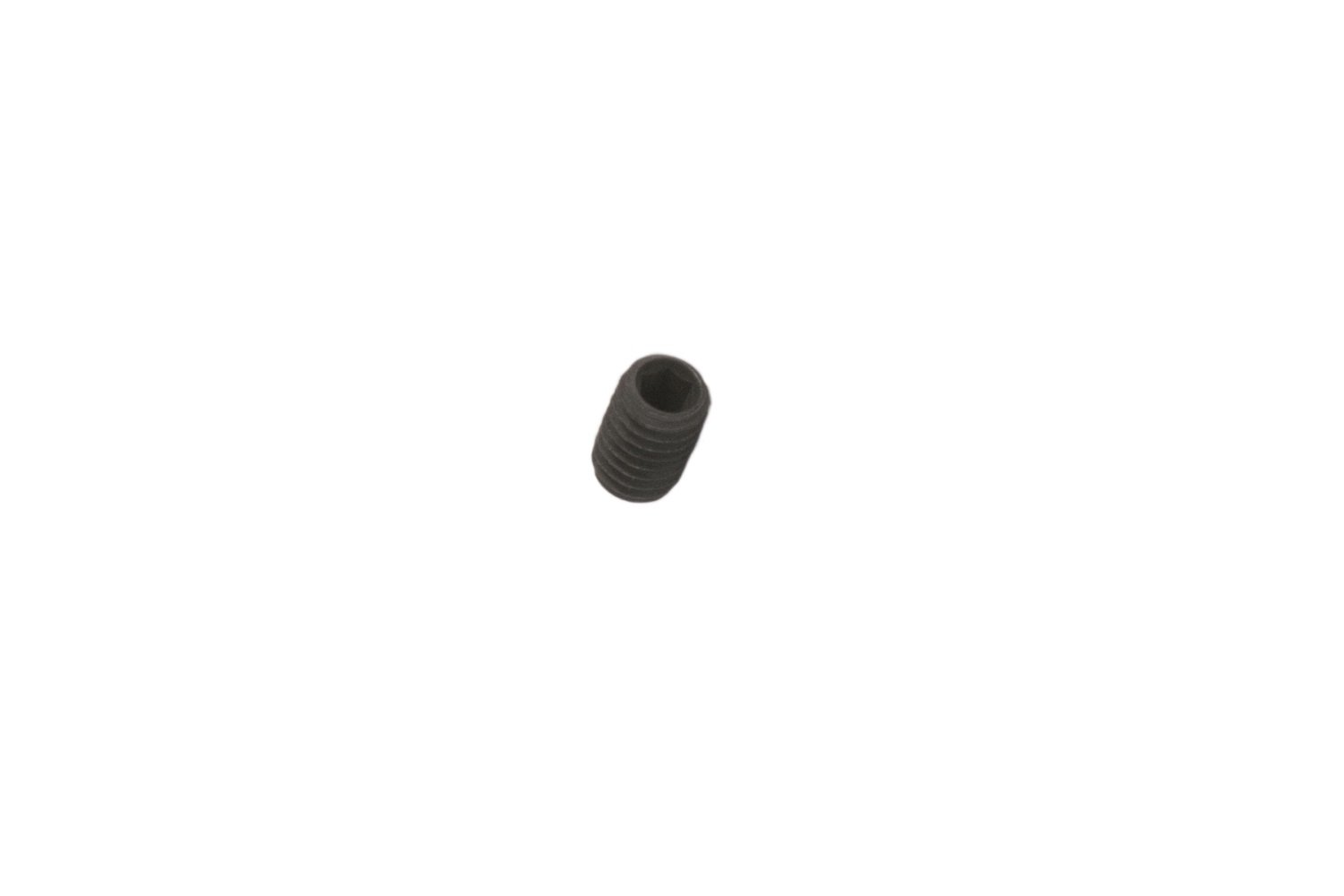

• Slack Adjustment Screw

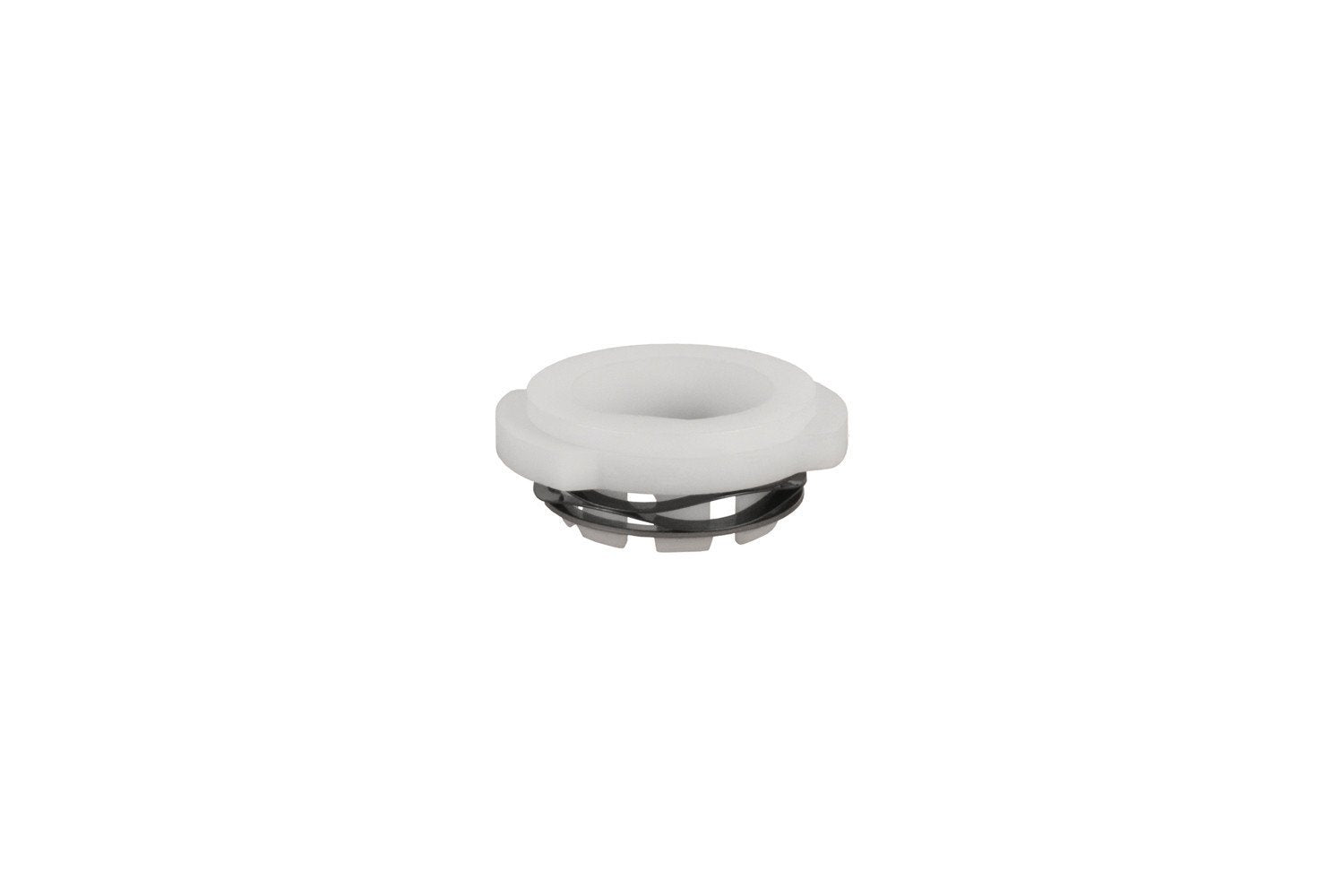

• Drag Mechanism (Assembled)
• RHD Engagement Cone
• LHD Engagement Cone
• Drive Side Sealed Bearing (7905A)

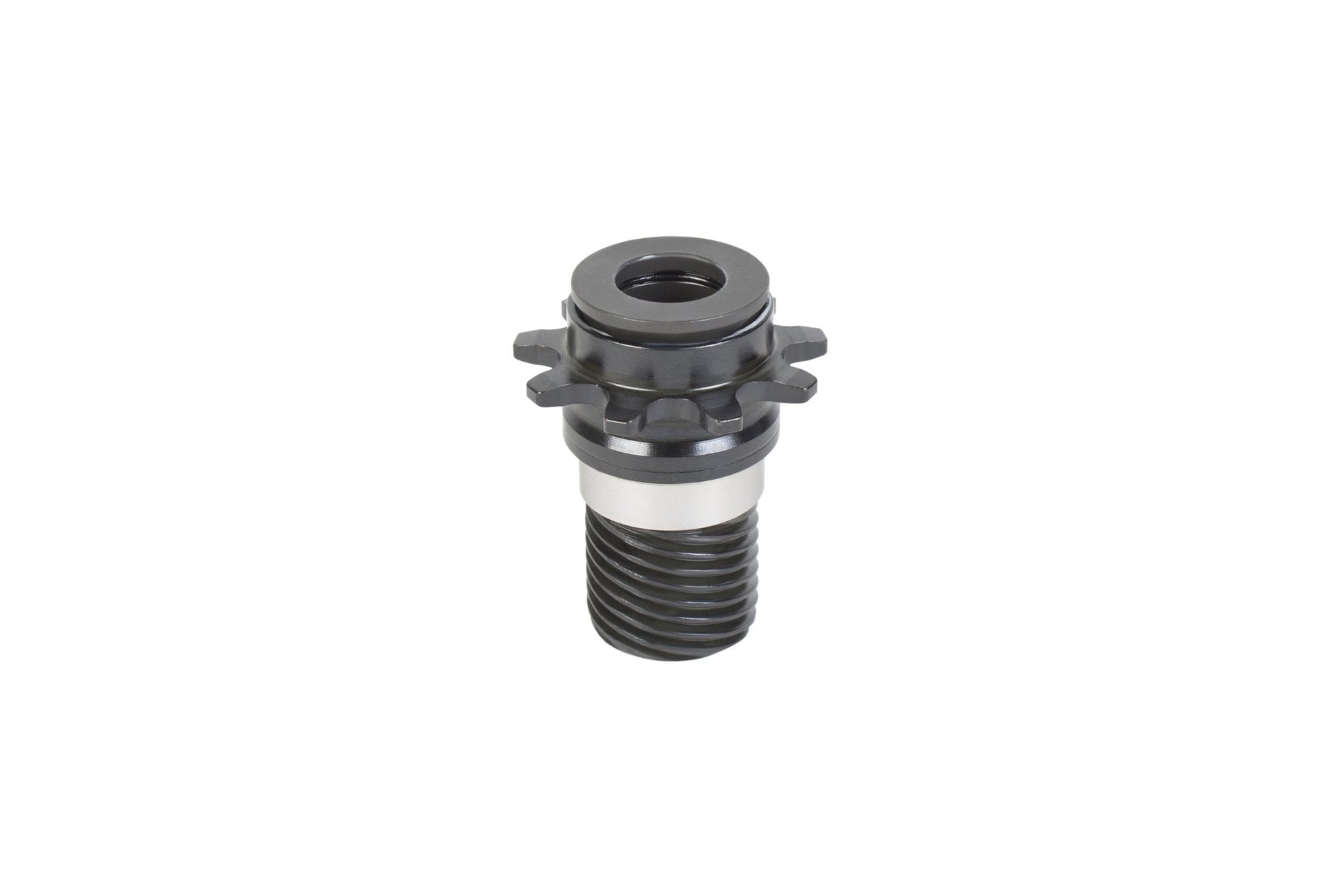

• RHD 9t Driver (Assembled, v2 Only)

• LHD 9t Driver (Assembled, v2 Only)

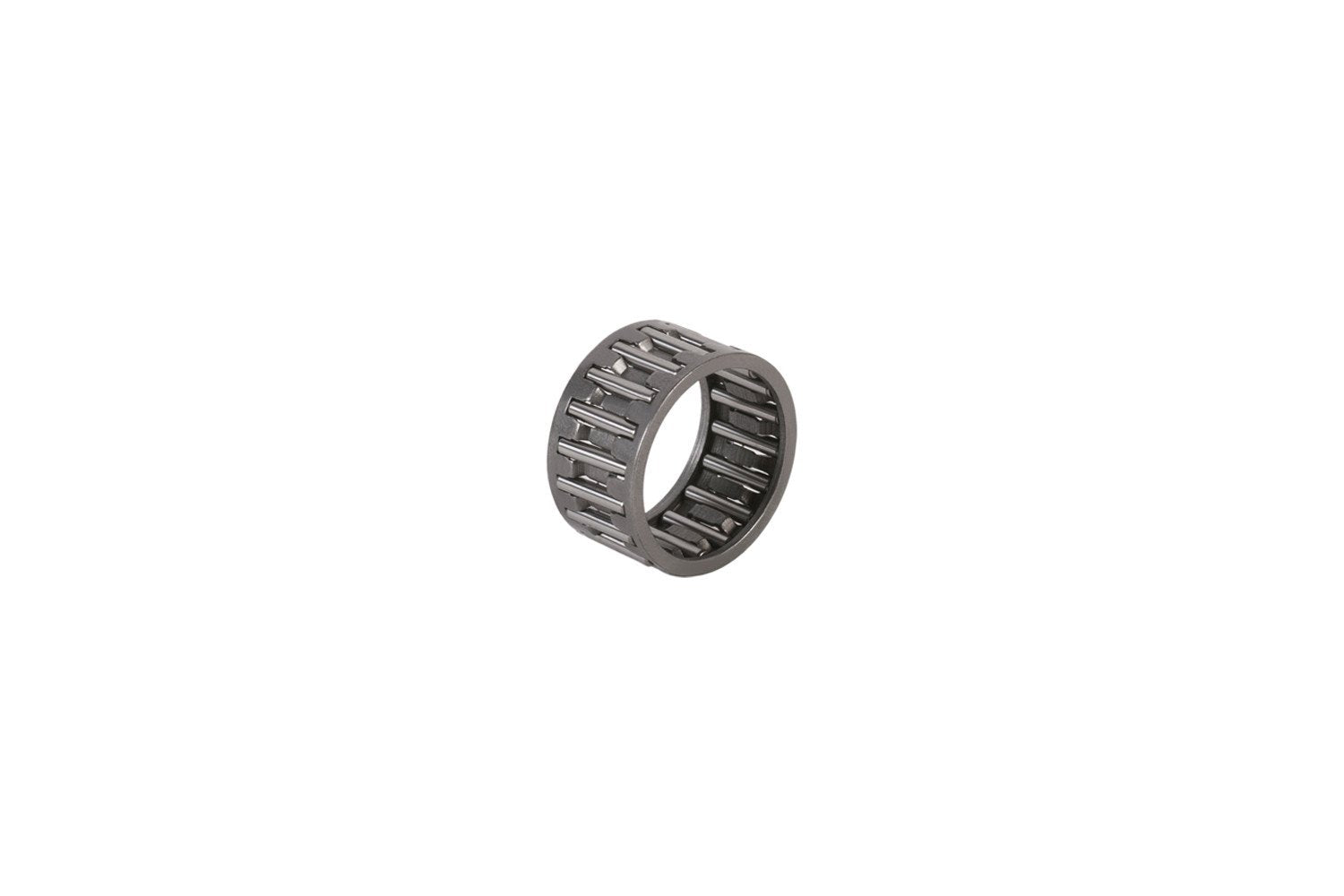

• Drive Side Needle Bearing

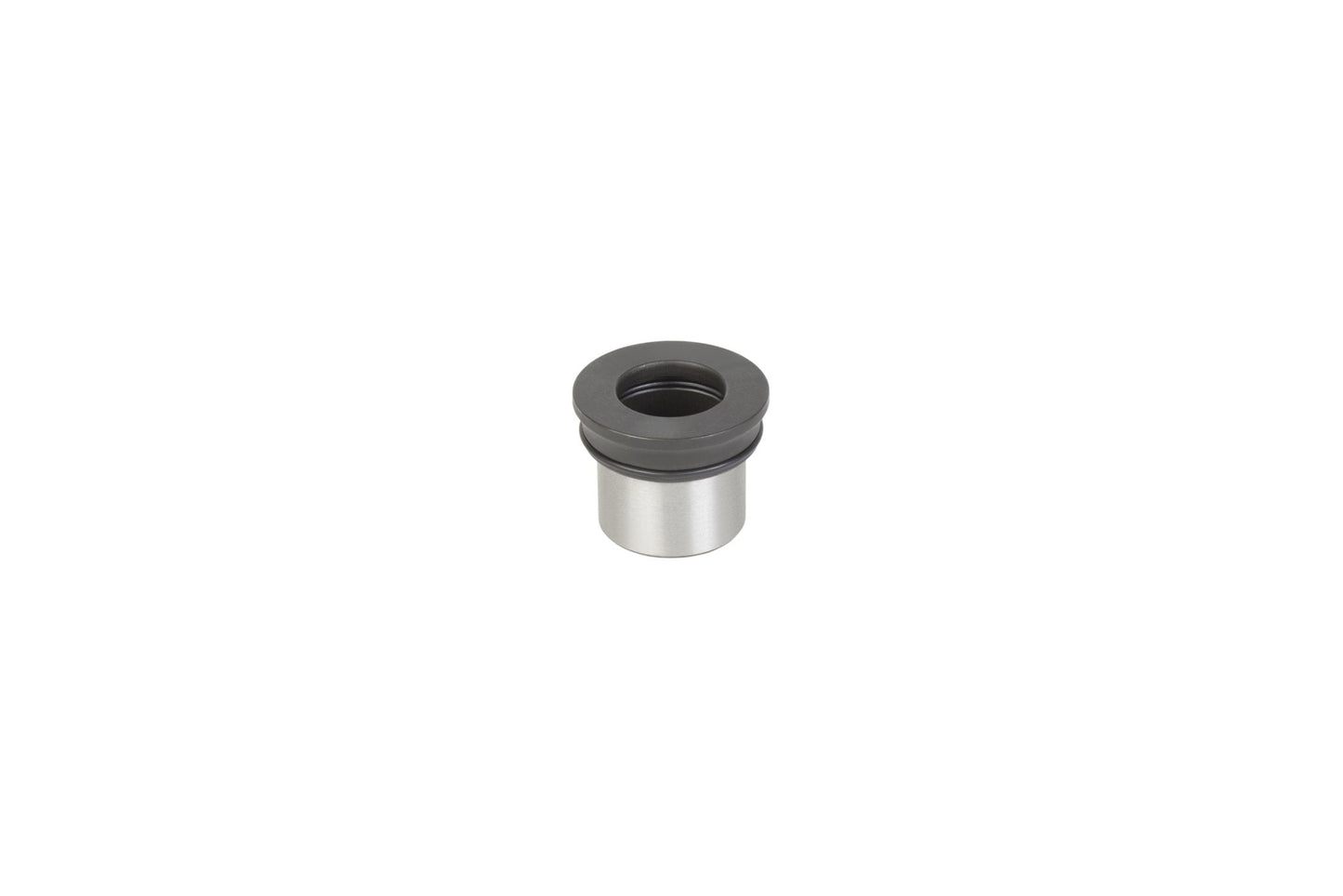

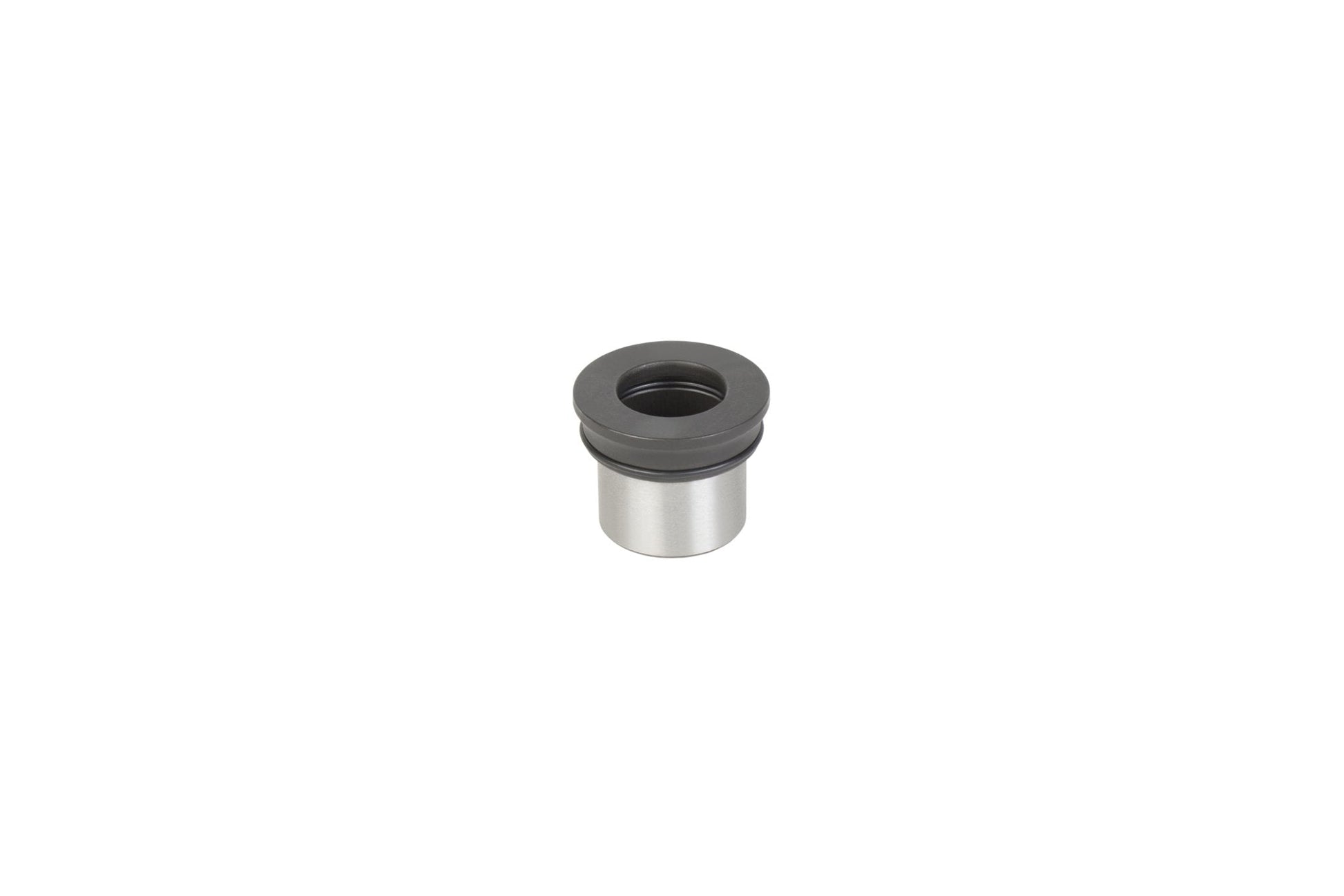

• Drive Side Collar (v2 Only)
