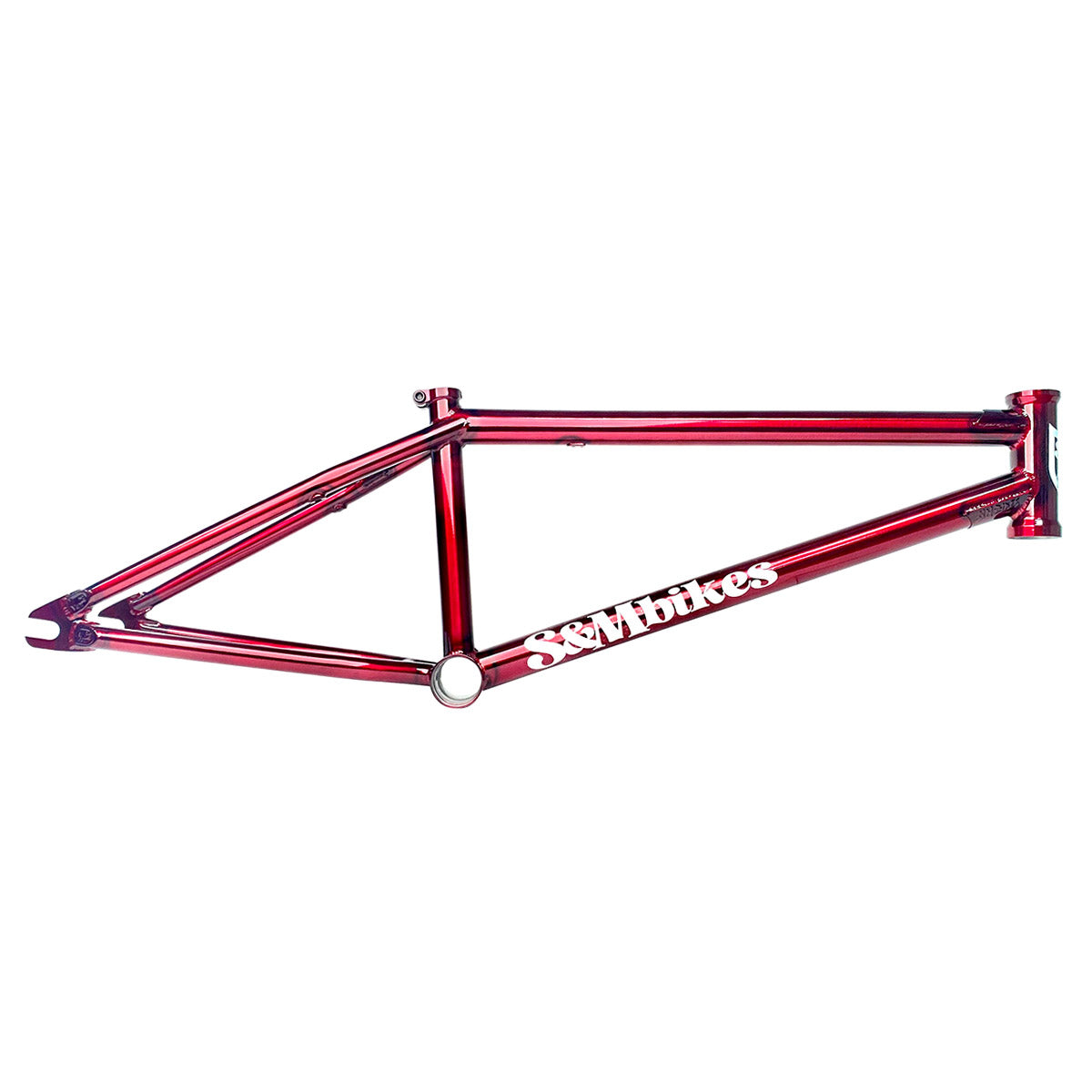

S&M WHAMMO V2 FRAME (TRANS RED)

S&M WHAMMO V2 FRAME (TRANS RED)

Regular price $519.95
Regular price Sale price $519.95
Sale Sold out
Shipping calculated at checkout.
Size

Craig Passero Signature Frame

Now with a shorter back end (12.9″), taller headtube (5″) and raised bottom bracket (11.8″), the Whammo V.2 will have you shouting Wham Bam, thank you Man! The taller headtube (ie. less spacers) translates into a cleaner setup, the shorter back end makes it more responsive and the higher bottom bracket improves sprocket clearance when grinding. The rest? Tried and true from the first Whammo.

TOP TUBE LENGTH 20.5″,20.75″,21″
REAR END LENGTH 12.9″-13.5″
HEAD TUBE ANGLE 75.3°
HEAD TUBE STYLE Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.8″
BB STYLE Mid
STANDOVER HEIGHT 8.85″
BRAKE MOUNTS Thread-On (sold separately) 990 Mounts
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 4.65 lb (2.12 kg)
TUBESET Butted ThermalX Tubing
