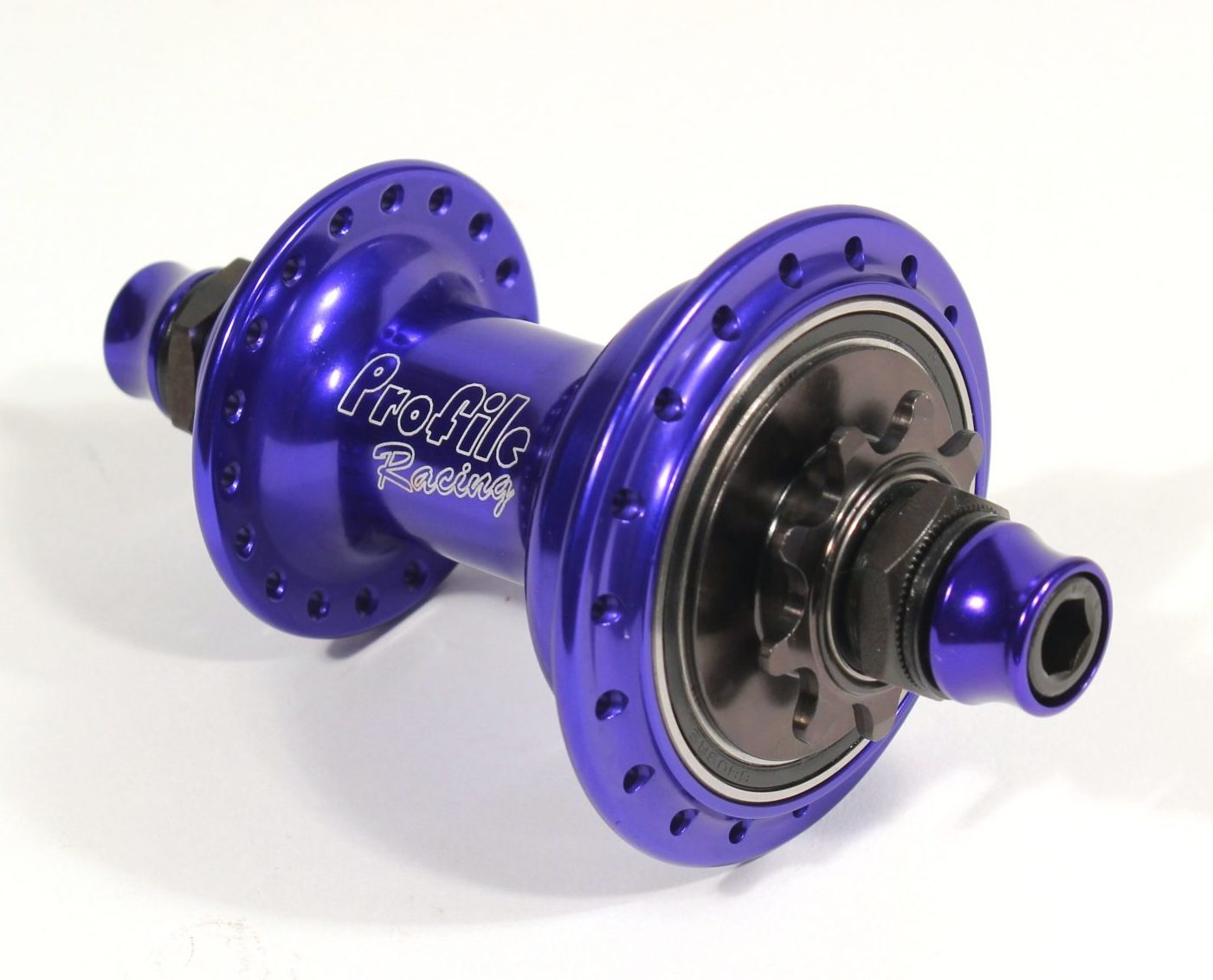

Profile Z Coaster Hub RHD/LHD (Purple)

• The Z Coaster®’s Pawl is “Zâ€ shaped to allow for engagement/disengagement by the center Slack Cam Ring. This allows for adjustable slack by being able to switch cam rings. They are available in 20/33/45 deg, 60 deg, 75 deg, 90 deg, & 115 deg slack opti0ns. This means you can dial in the slack from less than 1/8 of a crank to a full 1/3 of a crank!
• The Z Coaster® has an outer driver support bearing for the oversized driver mechanism. This bearing supports the driver from the outside.
• The Z Coaster®’s pawls and ratchet ring have a proprietary coating that offer smooth engagement.
  There are 48 points of engagement: all pawls engage simultaneously.
• Slack Options: 20/33/45 Degrees (45 degrees = 1/8 of a crank), 60 Degrees (1/6 of a crank), 75 Degrees (1/5 of a crank), 90 Degrees (1/4 of a crank), 115 Degrees (1/3 of a crank)
• 9t Drivers: 3/32″ or 1/8″width, Chromoly or Titanium
• Choice of 3/8″ Bolt On or 14mm Axles-Chromoly or Titanium
• RHD OR LHD
• 36h Only
• Utility patents and design patents granted & pending.
• Made here in the USA at the Profile Racing factory.

Colors:Â Red, Black, Blue, Polished, Gold , Green, Purple, Aqua, Matte Black, White

Z Coaster® Hub Weights:
Hub w/14mm GDH Chromo 9t Chromo: 583g/20.55oz
Hub w/ 14mm GDH Titanium 9t Titanium: 466g/16.4oz
Hub w/ 3/8 Chromo 9t Chromo: 559g/19.7oz
Hub w/ 3/8 Titanium 9t Titanium: 461g/16.2oz

Z Coaster® Hub Dimensions:
Center to Drive Side Flange–32mm
Flange Diameter on Drive-Side–66mm
Center to Non-Drive Flange–32mm
Flange Diameter on Non-Drive Side–50mm
