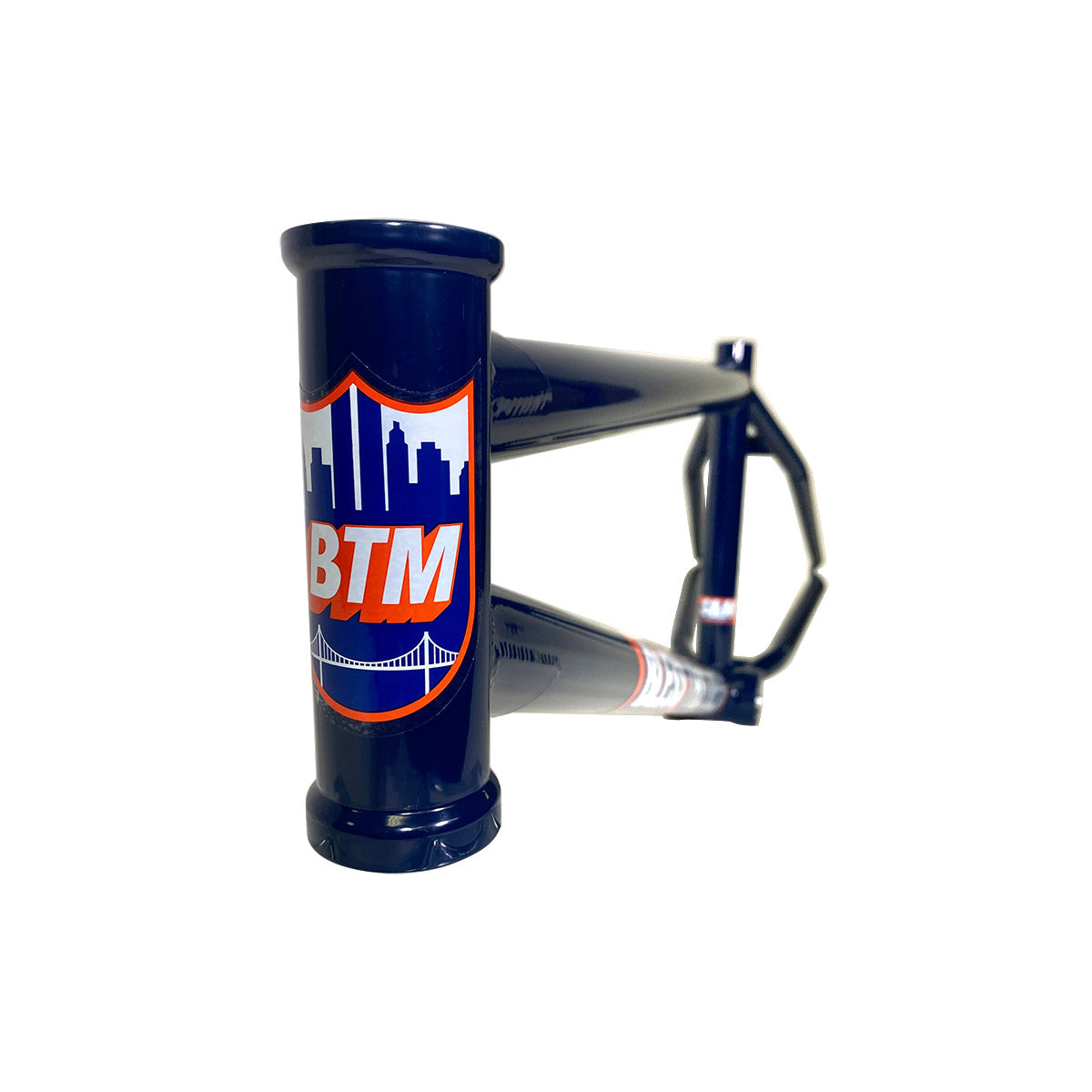

S&M HODER BTM XL FRAME (Edwin De La Rosa colorway)
S&M HODER BTM XL FRAME (Edwin De La Rosa colorway)
Regular price
$514.95
Regular price
$530.00
Sale price
$514.95
Unit price
per
Mike Hoder’s signature BTM frame, up-sized with an extra long 5″ head tube and taller 9.5″ standover height. Big Time Machinery for big time guy. All chromoly, beast-proof construction. Made in USA.
TOP TUBE LENGTH | 21″,21.25″,21.5″ |
REAR END LENGTH | 13.05-13.50″ |
HEAD TUBE ANGLE | 75° |
HEAD TUBE STYLE |  5″ Integrated (45°/45°, 41.8mm) |
SEAT TUBE ANGLE | 71° |
SEAT CLAMP | Slotted for traditional clamp |
SEAT POST SIZE | 1″ (25.4mm) |
BB HEIGHT | 11.5″ |
BB STYLE | Mid |
STANDOVER HEIGHT | 9.50″ |
BRAKE MOUNTSÂ | Thread-On 990 Mounts (sold separately) |
DROPOUTS | 14mm Slot, 4Q-Baked |
GYRO TABS | None |
WEIGHT | 5.4 lb (2.45 kg) |
TUBESET | Butted Thermal-X |
