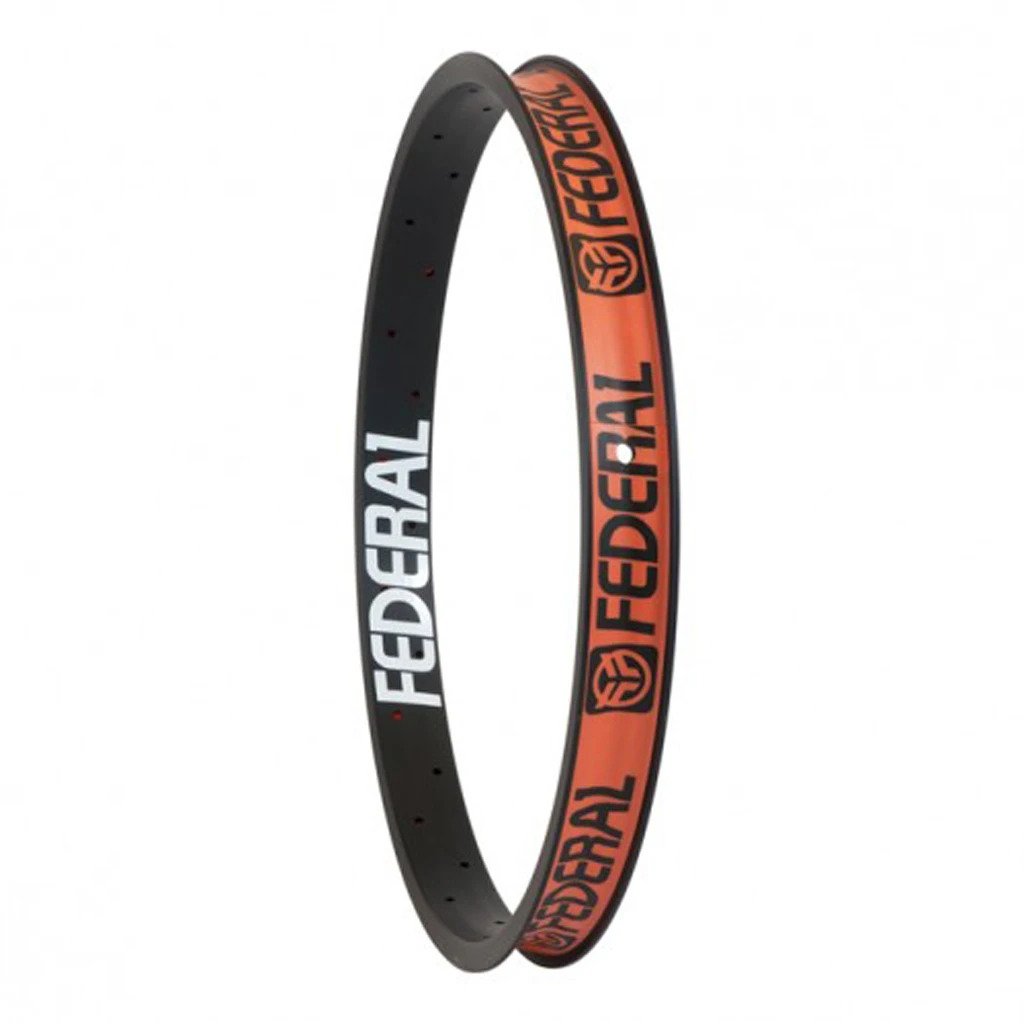

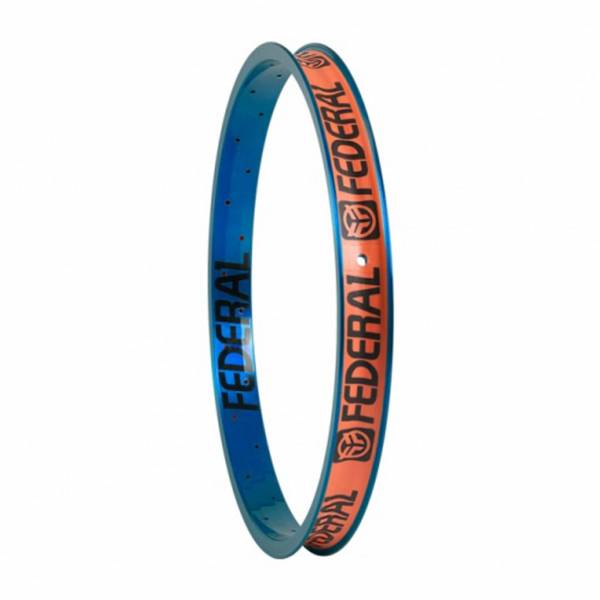

FEDERAL STANCE XL RIM

The Federal Stance XL rim has a wider (40mm) cross section which is designed to be in keeping with modern tyre sizes which helps the tyre maintain its correct profile. The triple box section combined with the wider profile makes the rim both stronger and stiffer than conventional rims and also helps to reduce the possibility of pinch flats. The wall thickness where the spokes are located has been increased by 22% to reduce the possibility of spokes pulling through the rim.

We have also changed the material from Aluminium 6061 to 6066 which increases the strength by approximately 30%. The rims have a lower sidewall height (15mm compared to 20mm on most other rims) to give the rim a lower/wider appearance.The internal sidewall height is also reduced to keep the tyre firmly in place when inflated and the base of the rim is sunken to ease the installation and removal of tires.

Specifications:

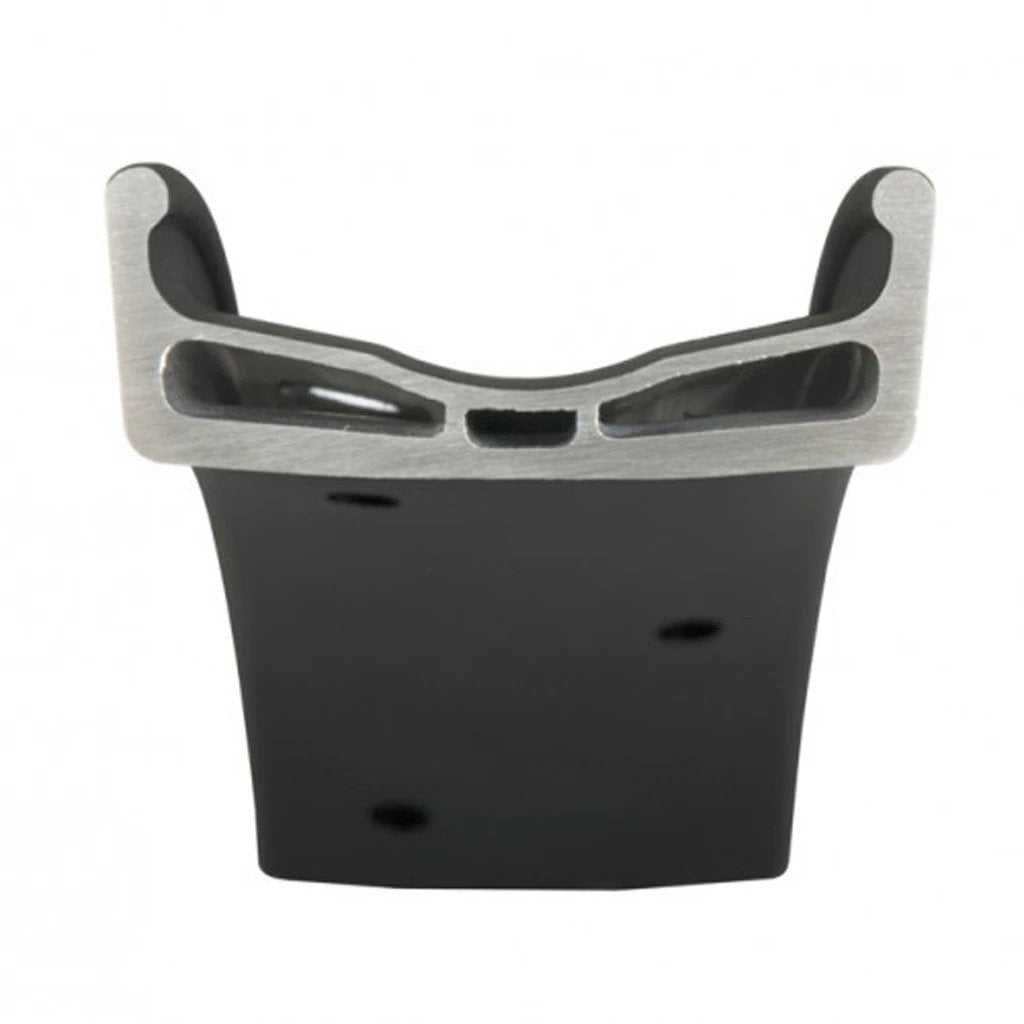

• New contemporary design using triple box section
• Wider profile rim (40mm)
• Lower profile shape (15mm)
• Aluminium 6066 material
• Increased wall thickness around spoke holes
• Wider spoke layout makes it easier to build the rim and tighten the spokes
• Includes new 35mm wide XL rim tape
• Available in Matt Black, Clear Gold and Polished Silver
• Width 40mm
• Height 15mm
• ERD 394mm
• Material 6066-T6 Aluminium
• Weight 18.5oz
