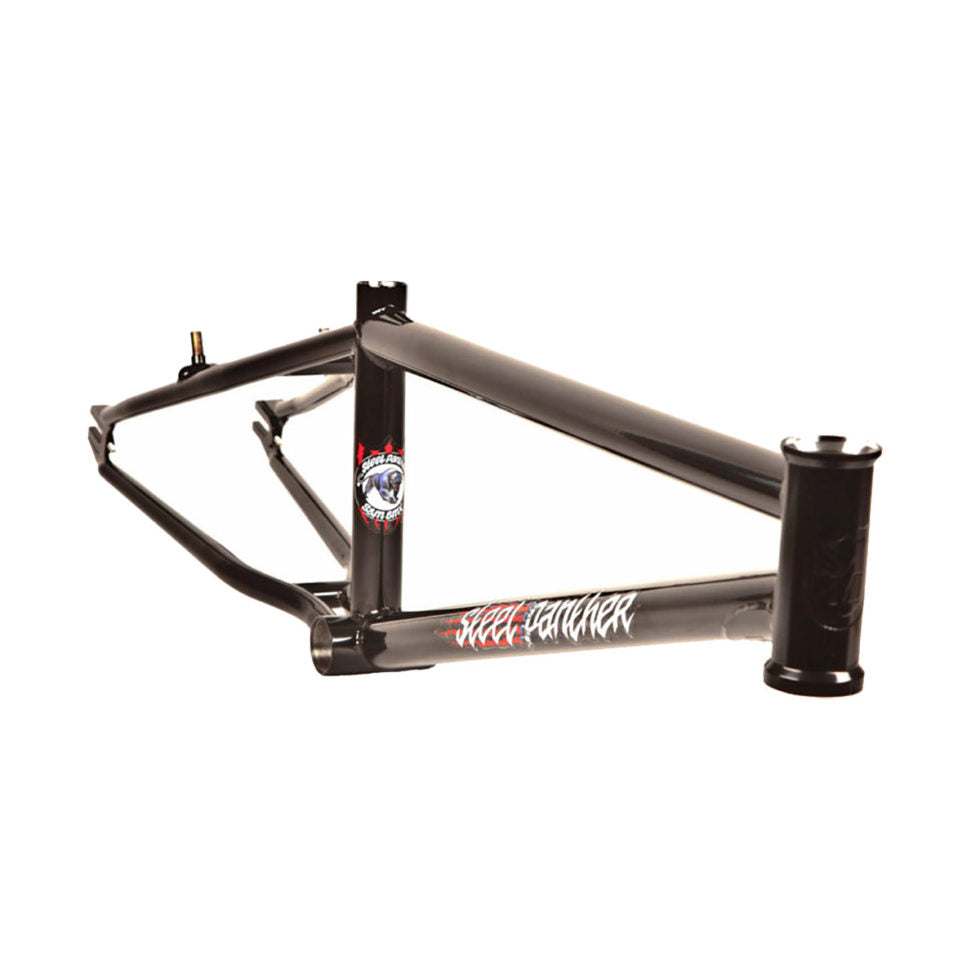

S&M STEEL PANTHER FRAME (GLOSS BLACK)
S&M STEEL PANTHER FRAME (GLOSS BLACK)
Regular price
$549.95
Regular price
Sale price
$549.95
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Â
Prowling BMX tracks, making easy prey of lesser species, the American Steel Panther is King of the chromoly race frame jungle. And unlike it’s predecessors the 38 Special and Speedwagon, it’s not named after a cheesy rock band from the 80’s. Upgrades include additional bend in seat-stays for greater chain clearance, integrated dropout chain tensioners and a slightly lower stand-over. Rear-end length varies per size and is relative to top tube length.
| TOP TUBE/REAR END | 20.5″, 20.75″ : 13.9″ – 14.9″
 21″,21.25″,21.5″: 14.4″-15.4″ |
| TOP TUBE/REAR END | 21.75″,22″,23″: 14.9″-15.9″ |
| HEAD TUBE ANGLE | 74.5° |
| HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE | 71° |
| SEAT CLAMP | Traditional Slot |
| SEAT POST SIZE | 27.2mm |
| BB HEIGHT | 11.5″ |
| BB STYLE | 68mm Euro |
| STANDOVER HEIGHT | 7.75″ |
| BRAKE MOUNTSÂ | V Brake |
| DROPOUTS | 3/8″ Slot, Built In Tensioner |
| GYRO TABS | None |
| WEIGHT | 4 lb 2.3 oz (1.88 kg) – 4 lb 6.7 oz (2 kg) |
| TUBESET | Butted Thermal-X |
