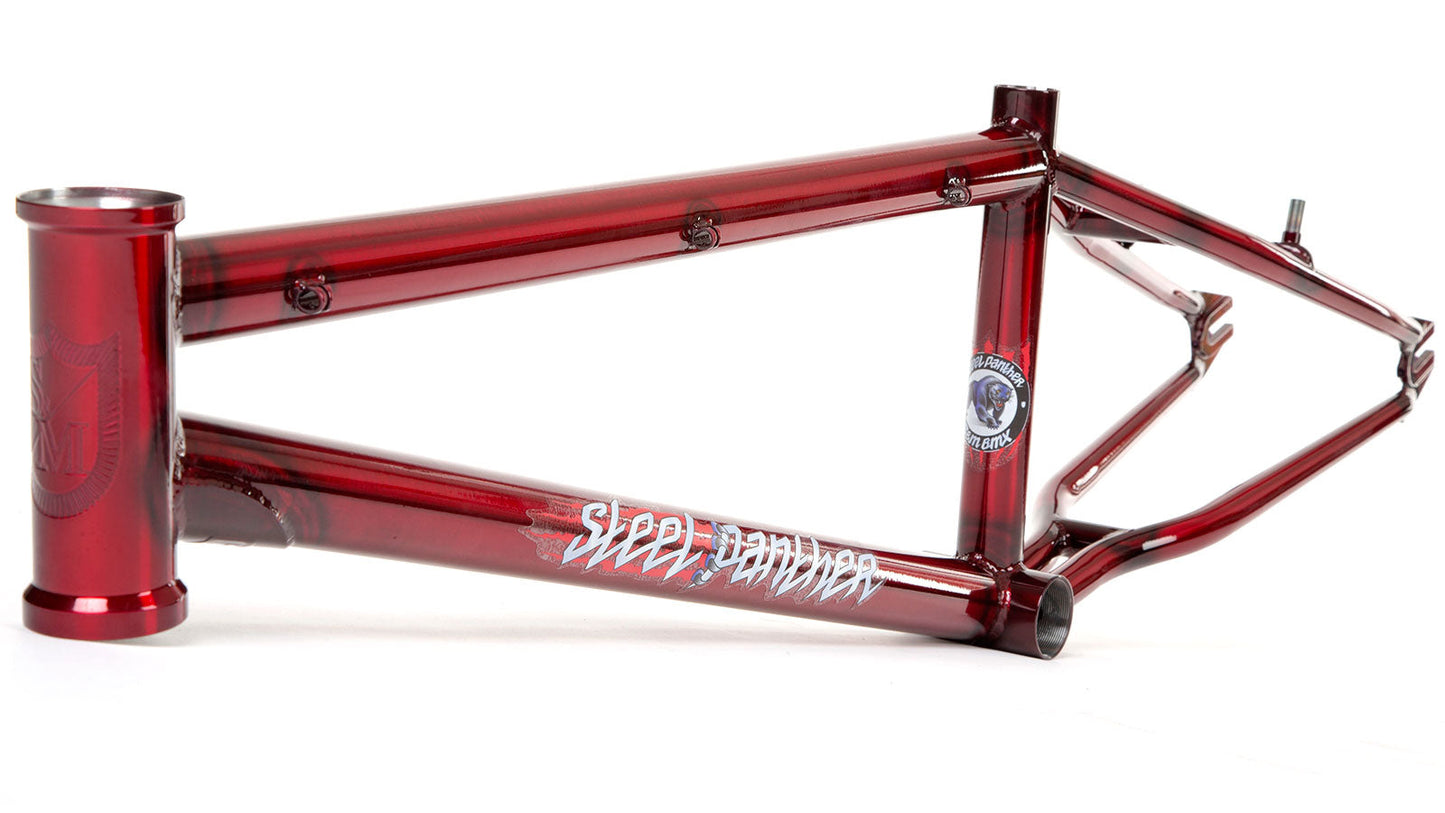

S&M STEEL PANTHER FRAME (TRANS RED)

S&M STEEL PANTHER FRAME (TRANS RED)

Regular price $549.95
Regular price Sale price $549.95
Sale Sold out
Shipping calculated at checkout.
Size

Â

Prowling BMX tracks, making easy prey of lesser species, the American Steel Panther is King of the chromoly race frame jungle. And unlike it’s predecessors the 38 Special and Speedwagon, it’s not named after a cheesy rock band from the 80’s. Upgrades include additional bend in seat-stays for greater chain clearance, integrated dropout chain tensioners and a slightly lower stand-over. Rear-end length varies per size and is relative to top tube length.

TOP TUBE/REAR END 20.5″, 20.75″ : 13.9″ – 14.9″

Â

21″,21.25″,21.5″: 14.4″-15.4″

TOP TUBE/REAR END 21.75″,22″,23″: 14.9″-15.9″
HEAD TUBE ANGLE 74.5°
HEAD TUBE STYLE Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Traditional Slot
SEAT POST SIZE 27.2mm
BB HEIGHT 11.5″
BB STYLE 68mm Euro
STANDOVER HEIGHT 7.75″
BRAKE MOUNTSÂ V Brake
DROPOUTS 3/8″ Slot, Built In Tensioner
GYRO TABS None
WEIGHT 4 lb 2.3 oz (1.88 kg) – 4 lb 6.7 oz (2 kg)
TUBESET Butted Thermal-X
