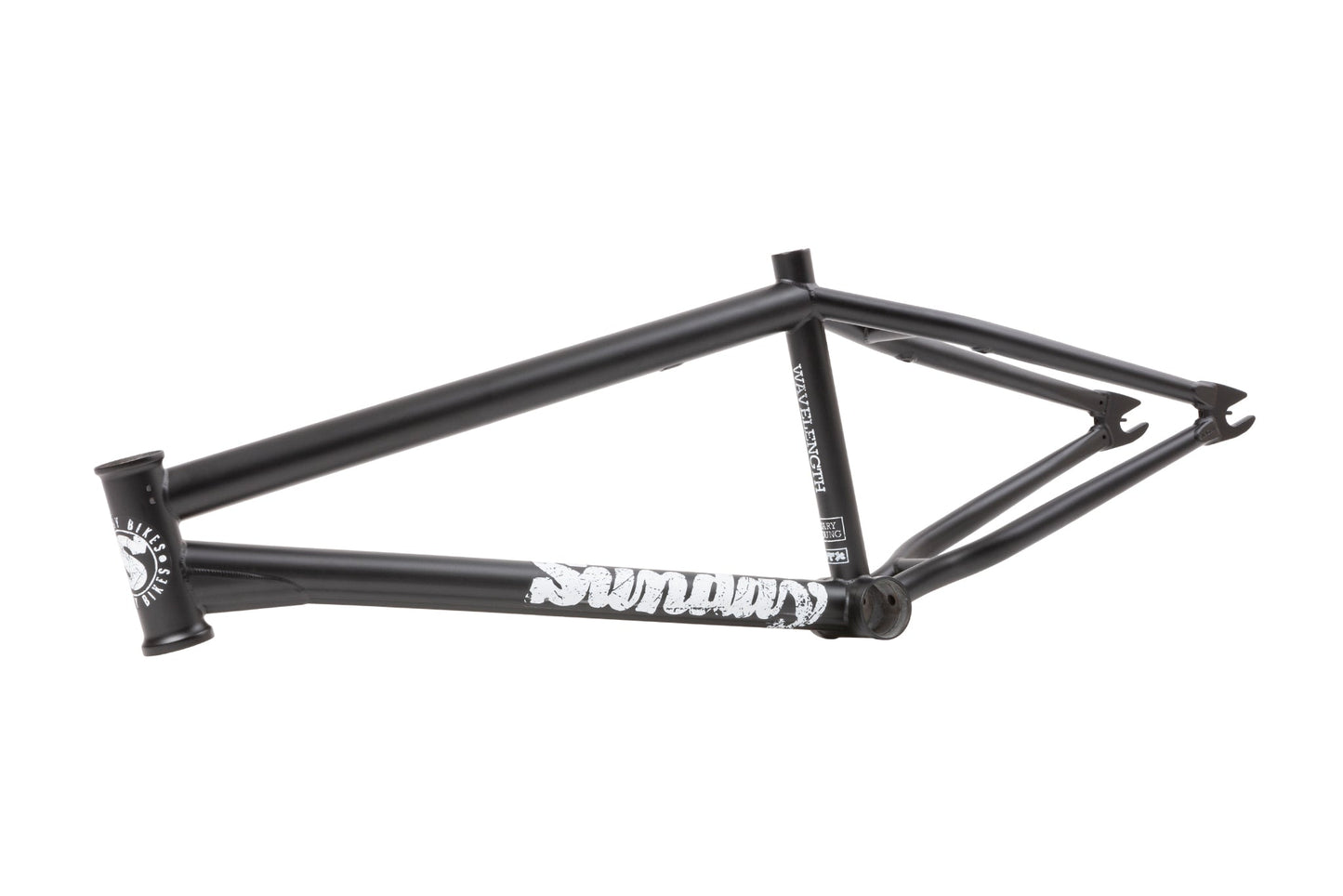

Sunday Wavelength Frame (Matte Black)

Sunday Wavelength Frame (Matte Black)

Regular price $409.99
Regular price Sale price $409.99
Sale Sold out
Shipping calculated at checkout.
Size and Color

Introducing Gary Young's signature Wavelength frame.

With a longer rear end and top-tube options, this frame is designed for riders who love to go fast and want a more stable ride for trails and transitions.

Features

  • Gary Young Signature Geometry
  • 100% 4130 chromoly frame
  • Removable U-brake hardware and Gyro tabs
  • Wave Down Tube:
    Down tube dents can significantly weaken the front end of your bike. The Wavelength's double-butted, 1.45" diameter down-tube features Sunday's proven Wave shaping to help fight against denting from rails, ledges, coping and whatever else happens to get thrown at it.
  • Miter Cut Top Tube:
    A miter-cut top tube creates a precise joint with the seat stays during welding. This increases the strength substantially over frames that use a “sandwichedâ€ top tube at this critical junction.
  • Tapered Chain & Seat Stays:
    Both chain and seat stays taper to provide a refined and clean look to the frame while still providing strength. They are both angled on the inside for improved chain clearance and weight savings.
  • Hollow Dropouts with Chain Tensioners:
    Hollow 8mm wide dropouts are as light as a solid 5mm dropout, but over twice as strong. There is a small internal chain tensioner to hold the wheel in position and to simplify wheel removal.

Geometry

Top Tube Length:Â 20.75", 21", and 21.25"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.65"-14â€
Bottom Bracket Height: 11.5â€
Standover: 9â€
Tire Clearance: 2.4â€
Head Tube: 5â€
