The all new Smoko Frame. Jason Watts' Signature Frame. This is a fully heat treated chromoly frame with multi butted tubing for weight saving.
With an oval downtube for dent resistance, 6mm thick laser cut dropouts with built in chain tensioners, classic wishbone chainstay, a CNC seatstay bridge and an externally butted seat tube.
The frame also features our new 'Stacked Logo' top tube gusset for the extra bit of style.
-
- Top Tube: 20.75", 21", 21.25" & 21.5"
- Chainstay: 13.8″
- BB height: 11.4″
- Seat Tube height: 9″
- Head Tube Angle: 74.5°
- Seat Tube Angle: 71°
- Seat Post: 25.4

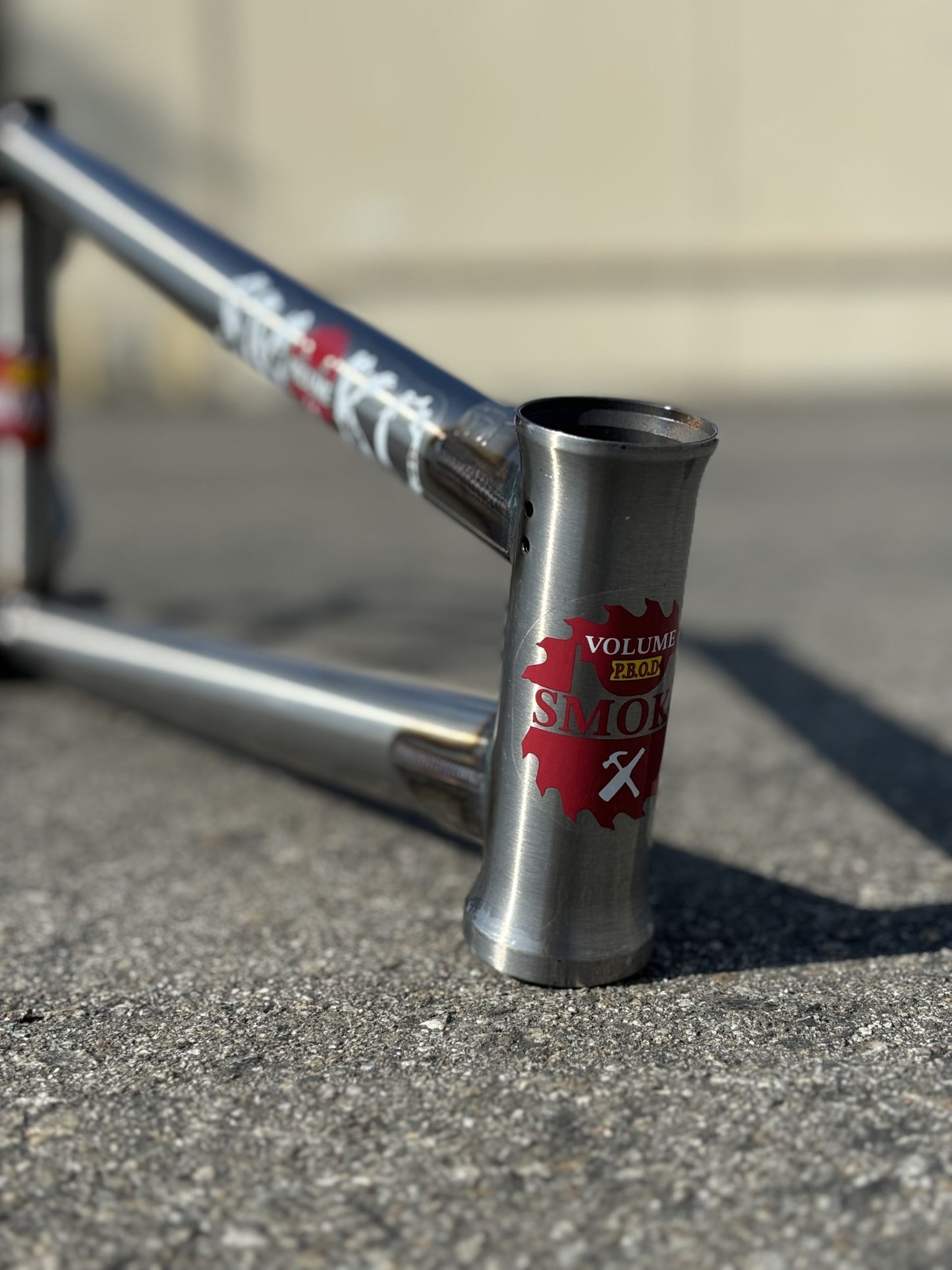

- Headtube: Integrated (45°X45° Campy Spec)
- Headtube Height: 5"
- Brake Mounts: Removable Seatstay Mounts
- Dropouts: Heat Treated laser cut, 6mm thick W/Built In Chain Tensioners.
- Color: Polished Raw
