• HB-TX505, Wheel, Front, 700C / 622, Holes: 36, QR, 100mm, Rim and Disc CL
  • FH-TX505, Wheel, Rear, 700C / 622, Holes: 36, QR, 135mm, Rim and Disc CL, Shimano HG
  • FH-TY505, Wheel, Rear, 700C / 622, Holes: 36, QR, 135mm, Rim and Disc CL, Shimano 7
1 1

WTB DX18 / Shimano HB-TX505 / FH-TX505 / FH-TY505 700C / 29'

WTB DX18 / Shimano HB-TX505 / FH-TX505 / FH-TY505 700C / 29'

$94.99
$94.99
Sale Sold out
Shipping calculated at checkout.
Title
    Rims: WTB DX18 700C / 29'' (ETRTO 622), inner width: 18 mm
  • Anodized black finish
  • CNC machined sidewalls
  • Stainless steel eyelets
  • Rim wear indicator
  • Pinned joint
  • Drilled for Schrader valve
  • 36 holes

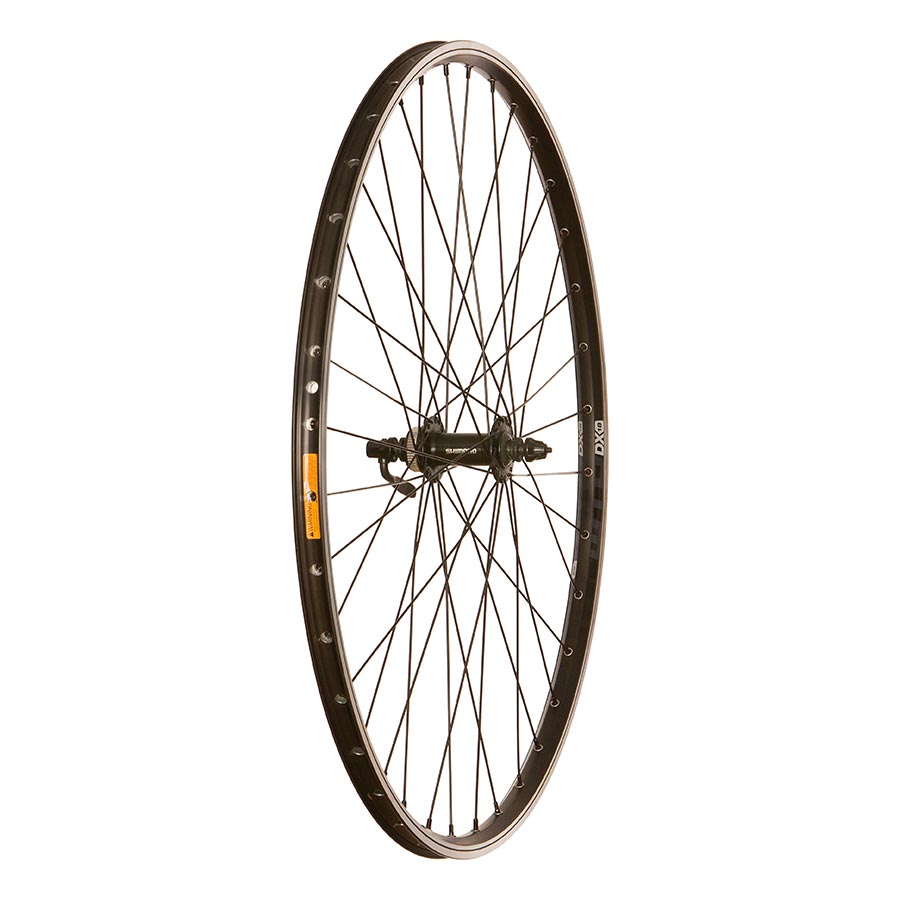

    Front hub (-01): Shimano HB-TX505
  • 9x100mm
  • Center Lock Disc Mount
  • Adjutable Cup & Cone
  • Contact sealed hub
  • Quick Release Binder included

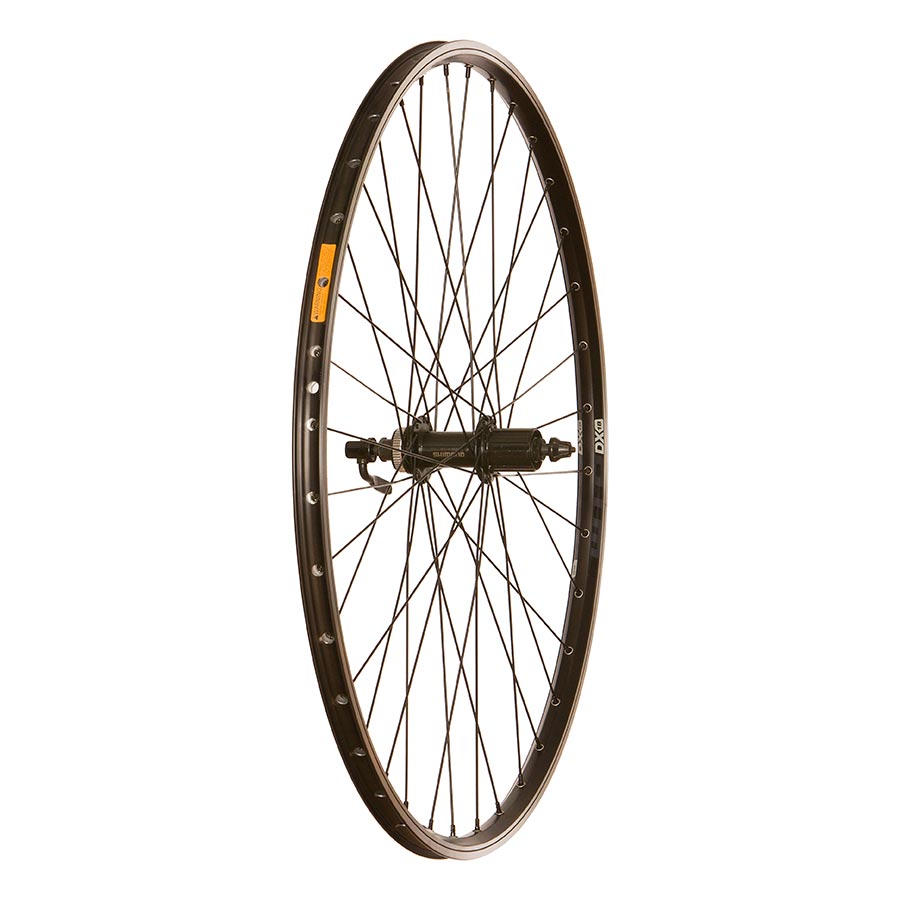

    Rear hub (-02): Shimano FH-TX505
  • 10x135mm
  • Center Lock Disc Mount
  • Adjutable Cup & Cone
  • Contact sealed hub and freehub body
  • Quick Release Binder included
  • Compatible with 8,9,10 speed (MTB 11 speed requires 1.85mm spacer, not included)

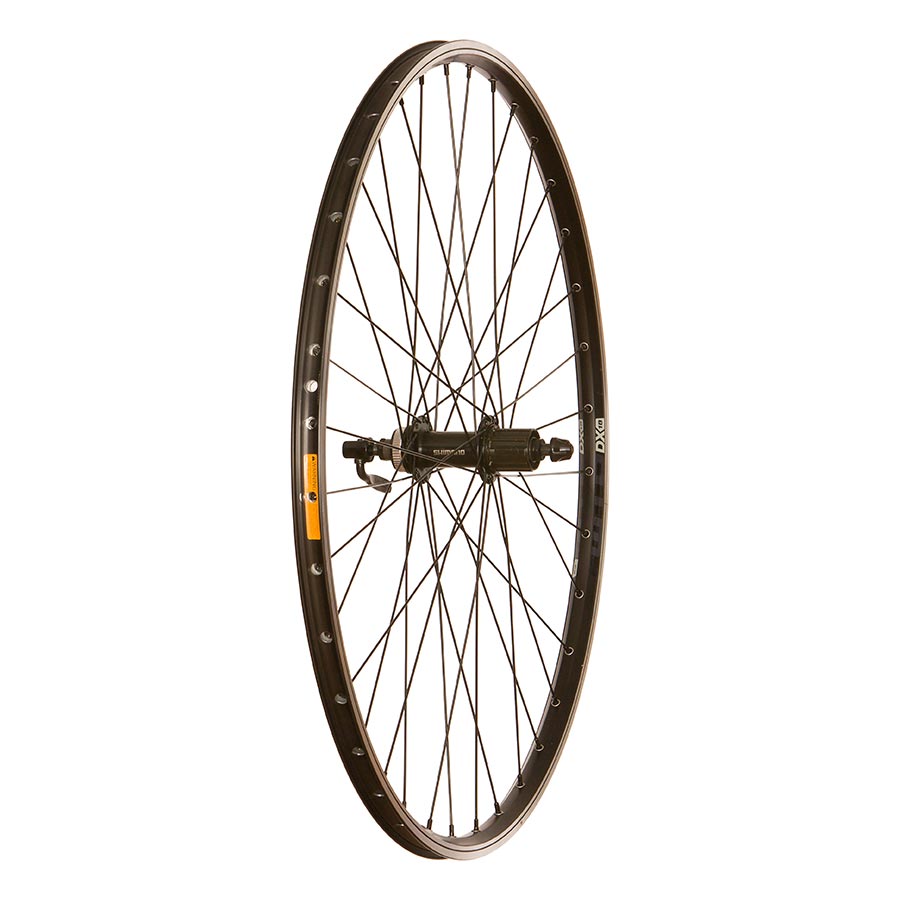

    Rear hub (-03): Shimano FH-TY505
  • 10x135mm
  • Center Lock Disc Mount
  • Adjutable Cup & Cone
  • Contact sealed hub and freehub body
  • Quick Release Binder included
  • Compatible with a 7 speed HG cassette only

    Assembled in North America by experienced wheelbuilders using Sapim 14G Stainless Steel spokes (Black) and 14mm Brass Polyax Nipples (Black)
Attributes
Axle Type QR
Depth 18mm
Rim Color Black
Rim Construction Double wall
Rim Drilling 36
Rim External Width 23.5mm
Rim inner width range 0-21.9mm
Rim Internal Width 19mm
Rim Material Aluminum
Rim Model WTB DX18
Skewers Included Yes
Spoke Type Sapim
Valve Schrader
Wheel Diameter/ISO 700C / 622
Wheel Tire Type Clincher
Wheel-Brake Comp. Disc Center Lock / Rim
