• DC2241, Wheel, Rear, 24'' / 507, Holes: 32, QR, 141mm, Disc IS 6-bolt, Shimano HG
  • DC20, Wheel, Front, 24'' / 507, Holes: 32, QR, 100mm, Disc IS 6-bolt

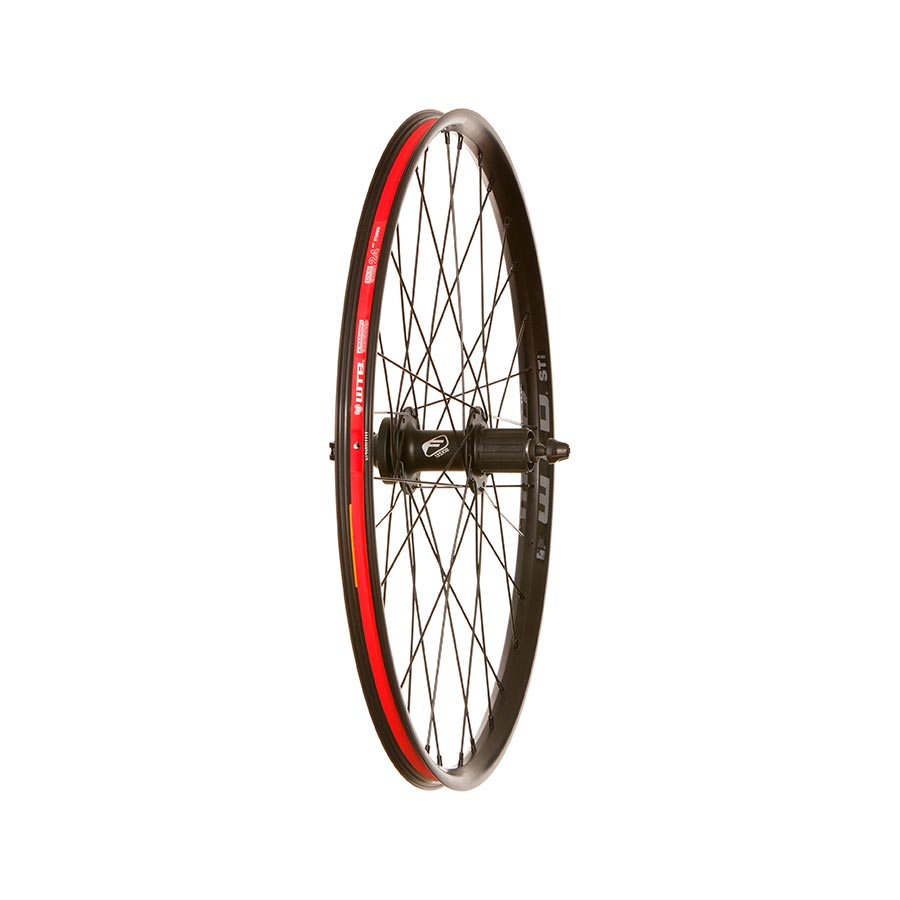

  • DC22, Wheel, Rear, 24'' / 507, Holes: 32, QR, 135mm, Disc IS 6-bolt, Shimano HG
1 3

WTB ST i23 / Formula DC20 / DC22 / DC2241 24''

WTB ST i23 / Formula DC20 / DC22 / DC2241 24''

$119.99
$119.99
Sale Sold out
Shipping calculated at checkout.
Title
    Rims: WTB ST i23 24''
  • ETRTO 507-23
  • Inner width: 23mm
  • Disc Brake Only
  • Drilled for Presta valve
  • TCS 2.0 Tubeless System compatible
  • Solid Strip (included)
  • 32 holes

    Front hub: Formula DC-20
  • QR 9x100mm (Quick Release binder included)
  • Anodized black with Laser Etched logo
  • 6-Bolt ISO disc mount
  • Adjustable bearings
  • Rubber seal

    Rear hubs options: Formula DC-22 (QR10x135mm) / DC-2241 (Boost QR 9x141mm)
  • Quick Release binder included
  • Anodized black with laser etched logo
  • 6-Bolt ISO disc mount
  • Adjustable bearings
  • Rubber seal
  • Compatible with 8-11 speed MTB (12 speed HG with 1.85mm spacer, not included)

    Assembled in North America by experienced wheelbuilders with Sapim stainless steel spokes (Black) and 14mm Brass Polyax Nipples (Black)
Attributes
Axle Type QR
Depth 18mm
Rim Color Black
Rim Construction Double wall
Rim Drilling 32
Rim External Width 27mm
Rim inner width range 22-27.9mm
Rim Internal Width 23mm
Rim Material Aluminum
Rim Model WTB ST i23
Skewers Included Yes
Spoke Type Sapim
Valve Presta
Wheel Diameter/ISO 24'' / 507
Wheel Tire Type Tubeless Compatible
Wheel-Brake Comp. Disc IS 6-bolt
